98 - Mac mini Take Apart
Mezzanine Board
Removal Procedure

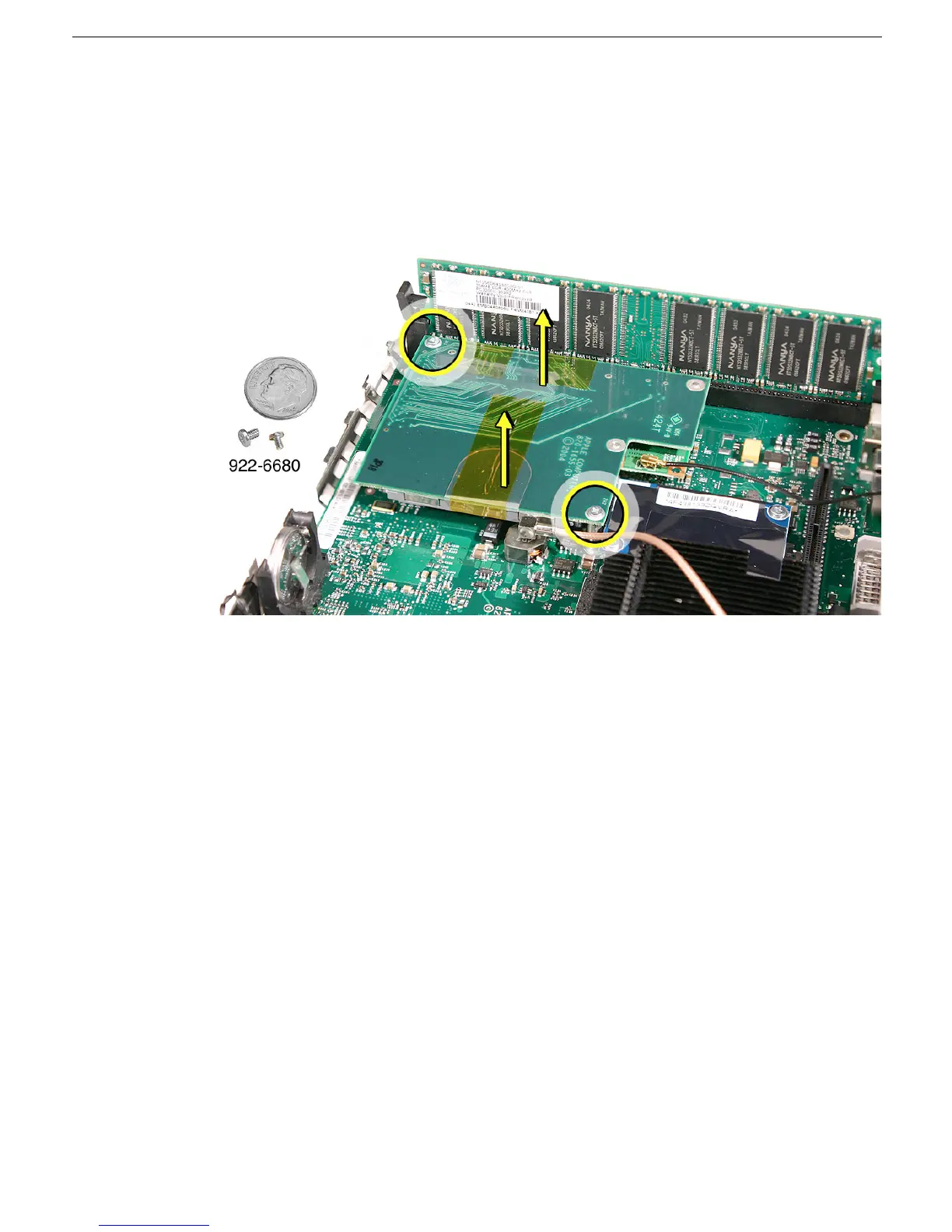

Using a jeweler’s #0 Phillips screwdriver, remove the two screws from the mezzanine
board. Pull the mezzanine board straight up and off the logic board.
Note: refer to Antennas, Mezzanine
