Mac mini Take Apart - 99
Mezzanine Board
Replacement Procedure

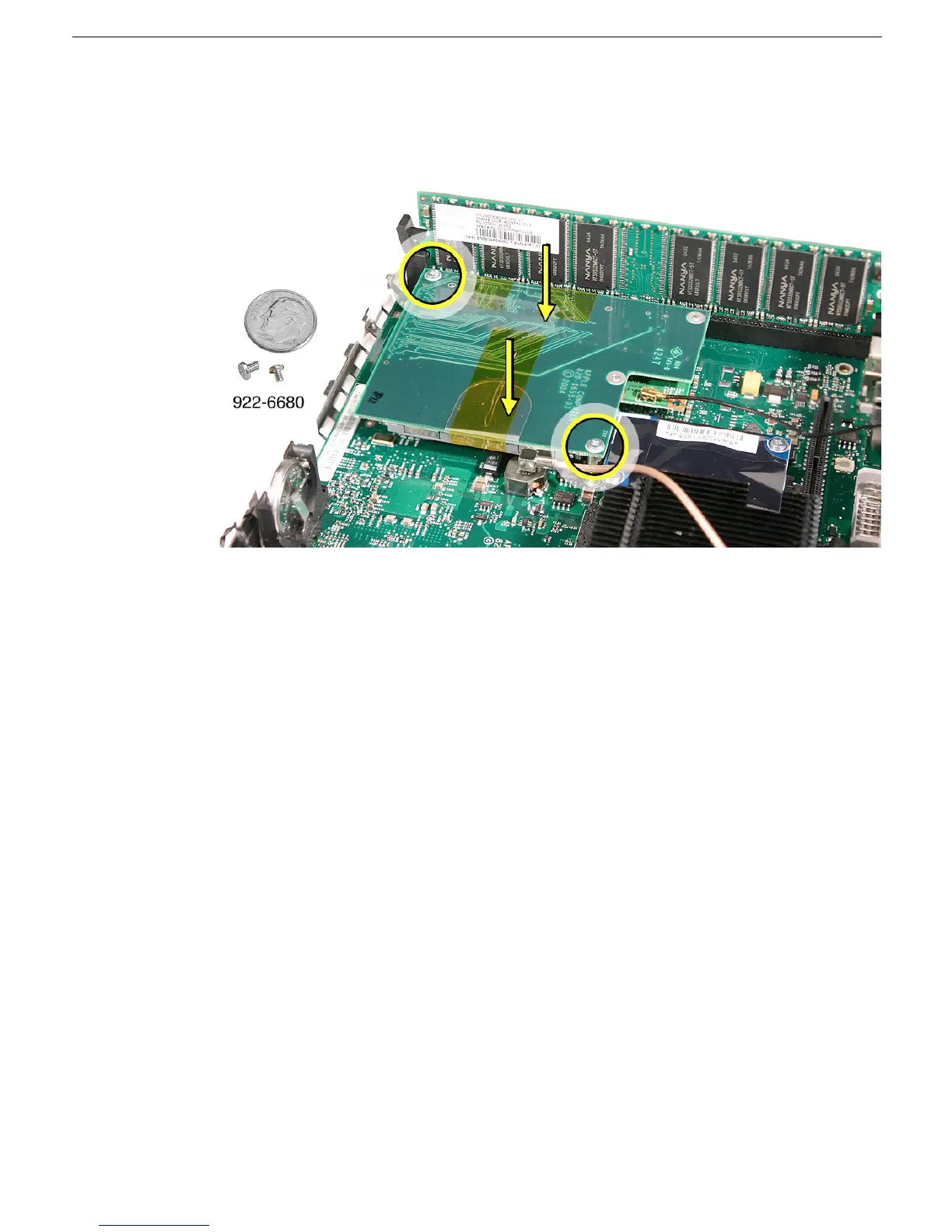

1. Connect the mezzanine board to the logic board connector. Replace the two
mezzanine screws.
2. Replace the internal frame.
3. Replace the top housing.
