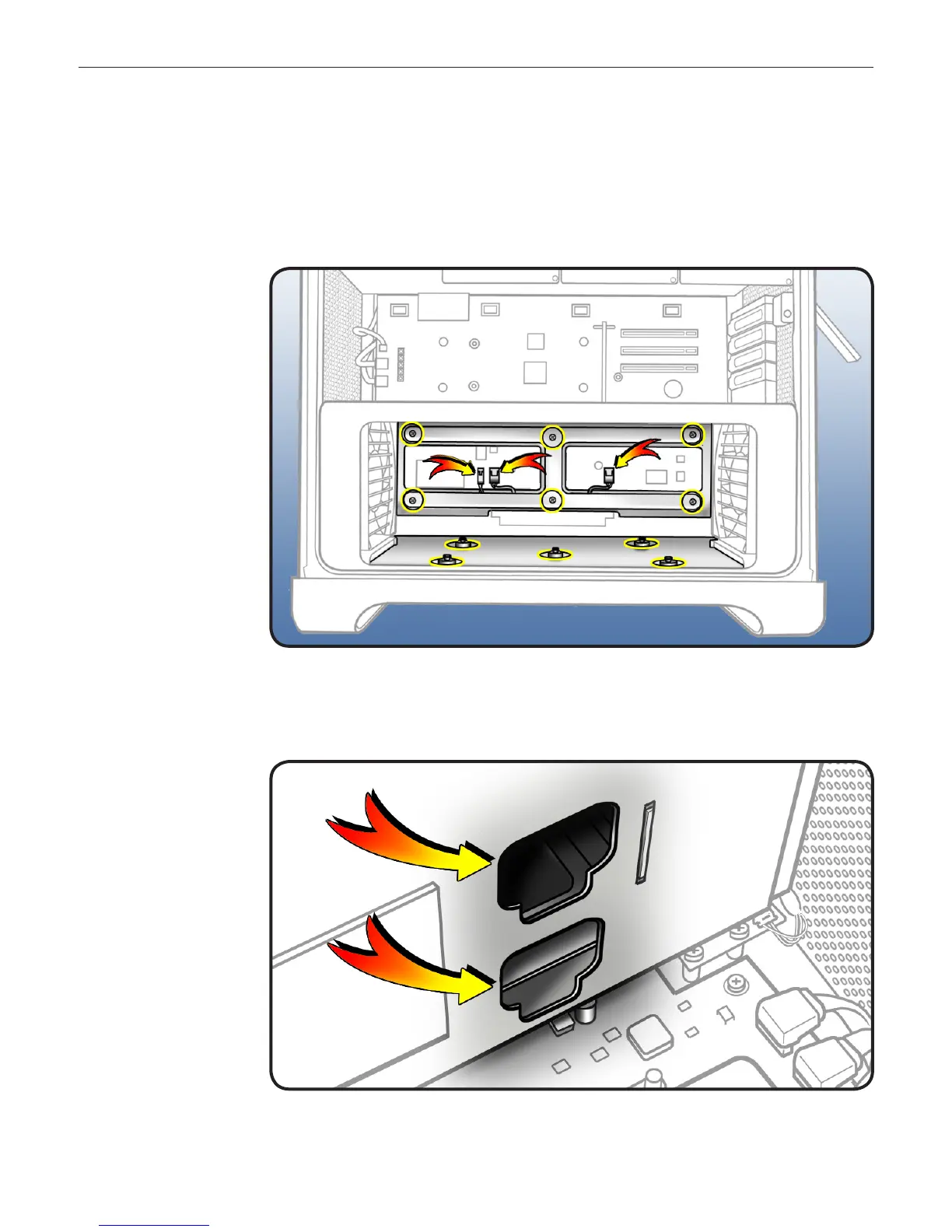

Processor Cage
Important: Before you re-
install cage into enclosure,
fans must be inserted
partway into cage.
6 Position cage in
enclosure.
Slide front and rear 7
fans into place, so
that they engage with
latches.
Replace and tighten 8
5 mushroom-head
screws.
Secure 9 6 captive
screws.
Reconnect 10 3 cables.
PCIe Fan
11 Slide fan into
enclosure so that fan
tabs engage with
slots on metal cage.
Press down until fan 12
clicks into place in
connector.
Replace 13 2 screws.
