Mac Pro (Early 2008) Take Apart — Front Panel Board 11 2

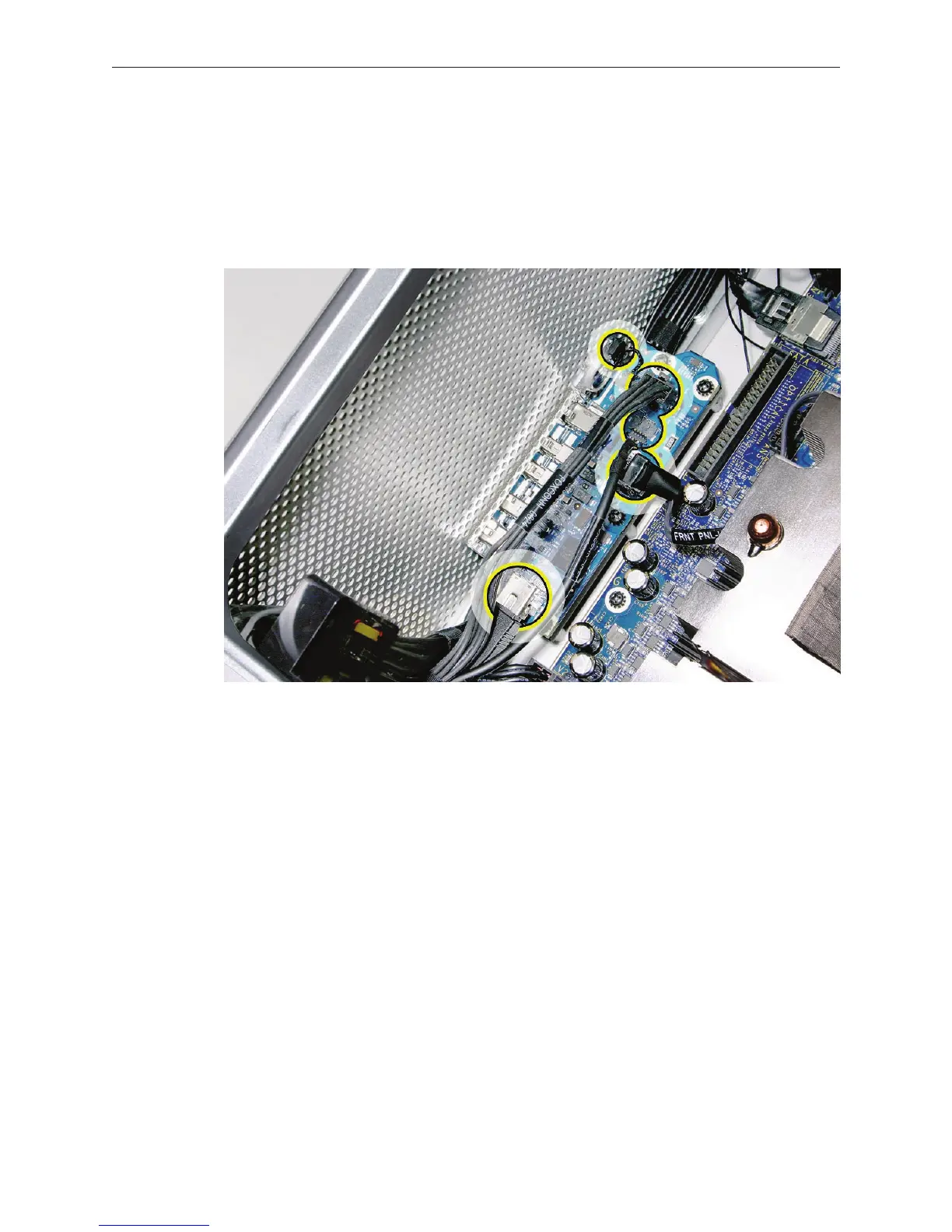

Disconnect the following ve cables from the front panel board: 2.
• FireWire 800 cable from connector J200
• USB cable from connector J201
• Front panel board power cable from connector J202
• Front panel board audio cable from connector J600
• Power button cable from connector J800
