Mac Pro (Early 2008) Take Apart — Optical Drive Data (Ribbon) Cable 12 6
Procedure

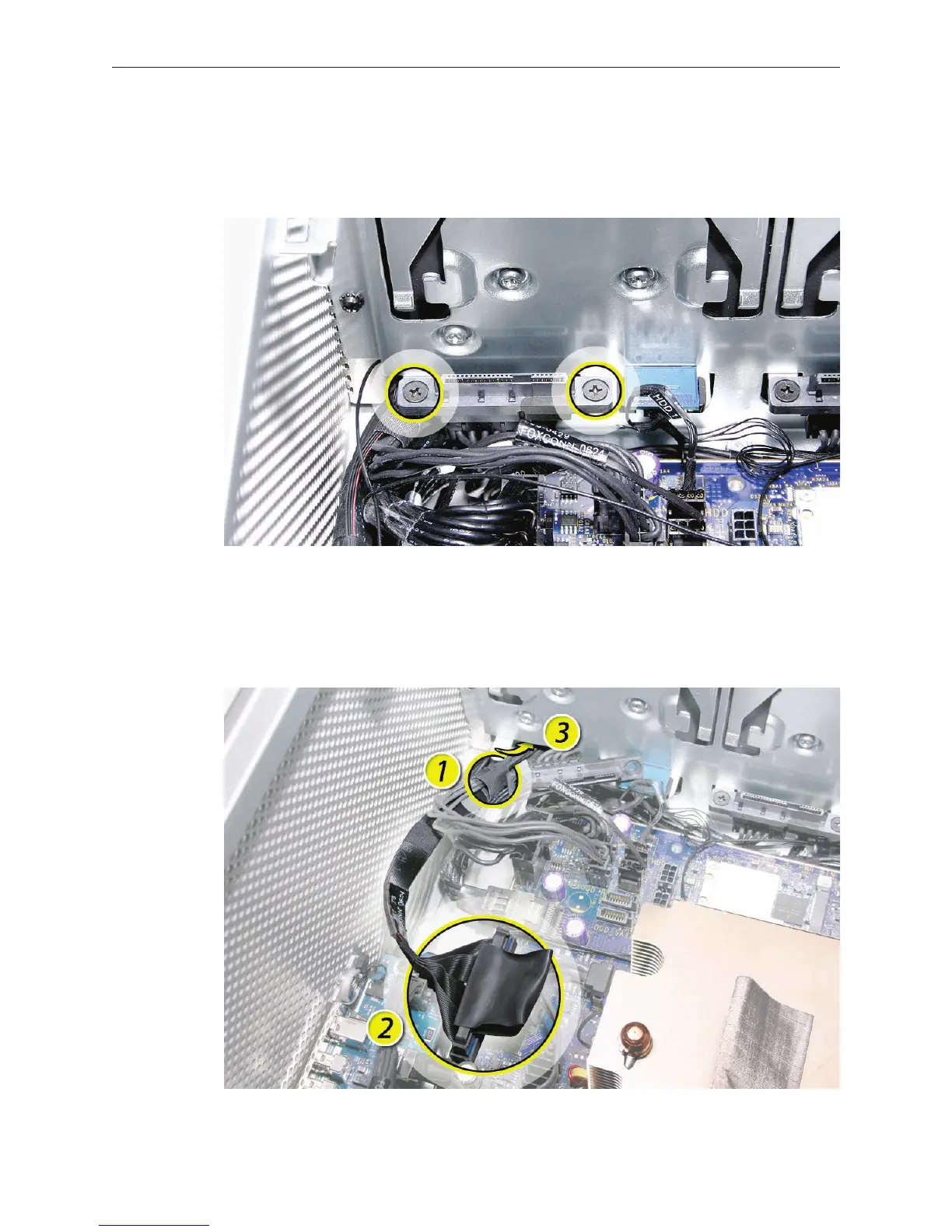

Using a magnetized #1 Phillips screwdriver, remove the two mounting screws on the hard 1.
drive connector for drive bay 1 and move the connector out of the way.
Unwind the tape that holds the optical drive data cable to the optical drive power cable.2.
Disconnect the optical drive data cable from the logic board.3.
Insert the cable into the opening in the media shelf at hard drive bay 1 and remove the 4.
cable from the enclosure.
