Installation 33
•
Main
console
• Keyboard unit
• Mouse
• Keyboard cable
• Power cord
•
Manual

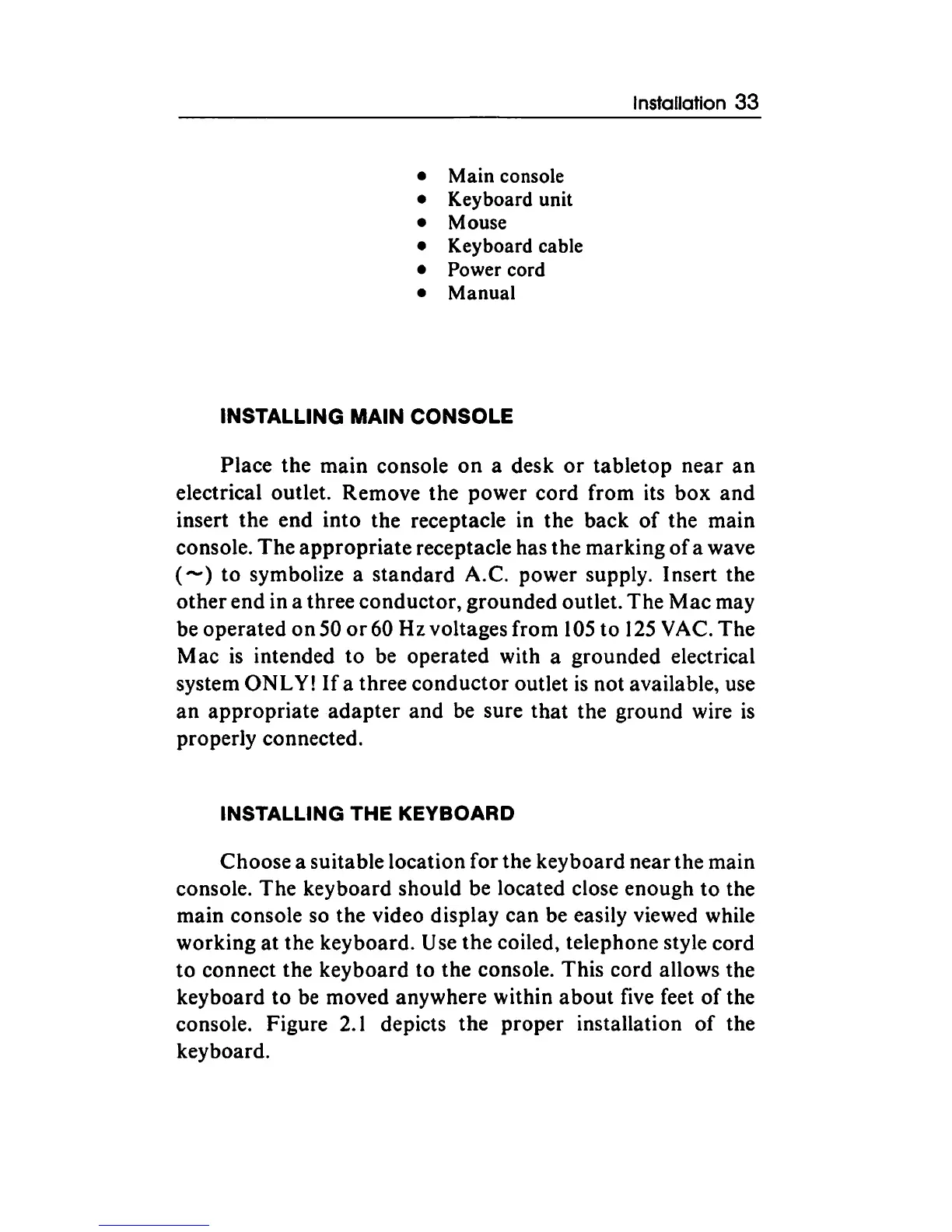

INSTALLING MAIN CONSOLE
Place the main console
on
a desk
or
tabletop near
an
electrical outlet. Remove the power cord from its box
and
insert the end into the receptacle in the back
of
the main
console. The appropriate receptacle has the marking
of
a wave
(
-)
to
symbolize a standard
A.
C.
power supply. Insert the
other
end in a three conductor, grounded outlet. The Mac may
be operated
on
50
or
60Hz
voltages from
105
to
125
VAC.
The
Mac
is
intended
to
be operated with a grounded electrical
system
ONLY!
If
a three conductor outlet
is
not available, use
an
appropriate adapter and be sure
that
the ground wire
is
properly connected.
INSTALLING THE KEYBOARD
Choose a suitable location for the keyboard near the main
console. The keyboard should be located close enough
to
the
main console so the video display can be easily viewed while
working
at
the keyboard. Use the coiled, telephone style cord
to
connect the keyboard
to
the console. This cord allows the
keyboard
to
be moved anywhere within
about
five
feet
of
the
console. Figure
2.1
depicts the proper installation
of
the
keyboard.
