Take Apart Front Panel Board, Power Mac G4 (QuickSilvers) - 135

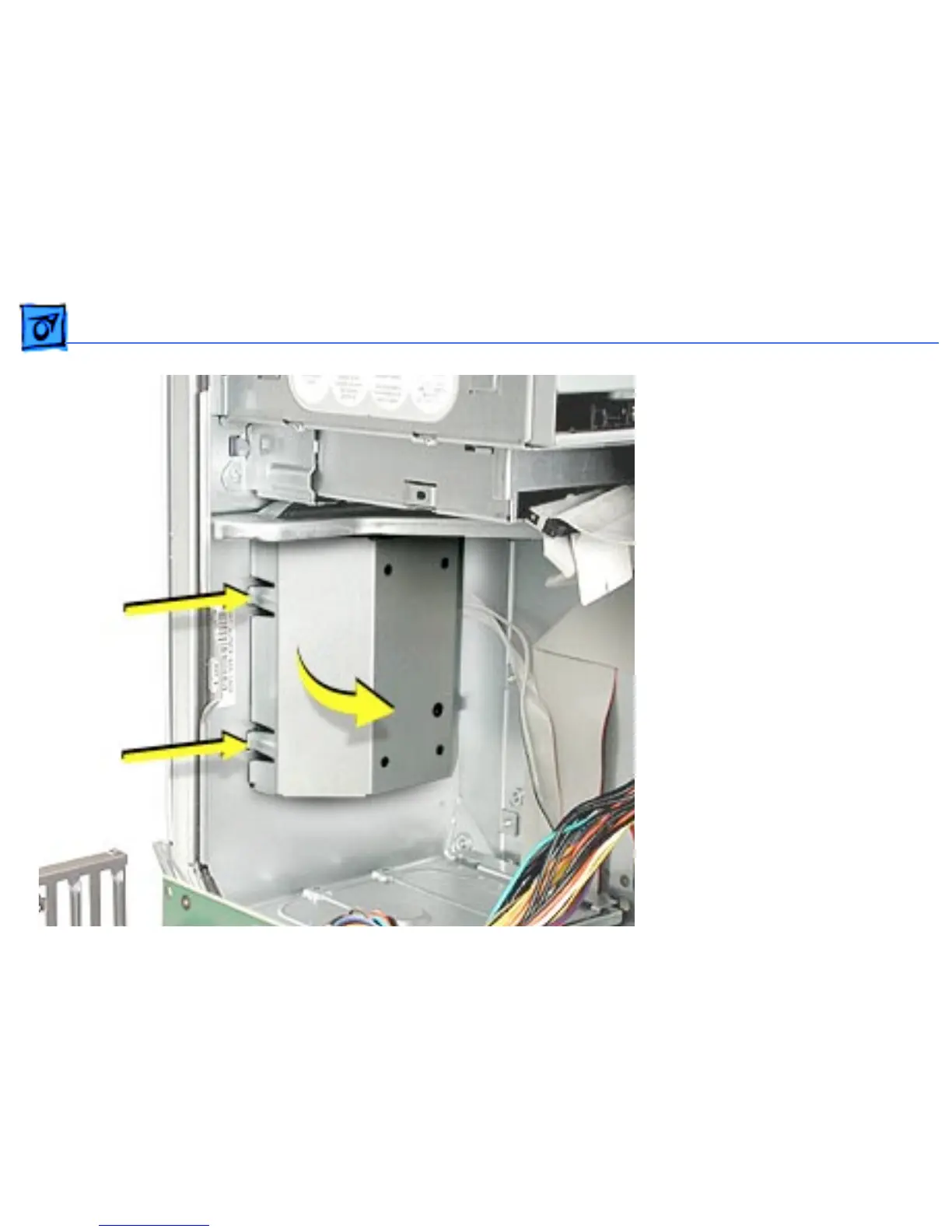

1. Using your thumbs,
press the tabs in on the
speaker shield.
2. Rotate the shield and
remove it from the
chassis.
