Apple Power Mac G4 - Exploded Views of Components; Power Mac G4 (AGP Graphics) Exploded View

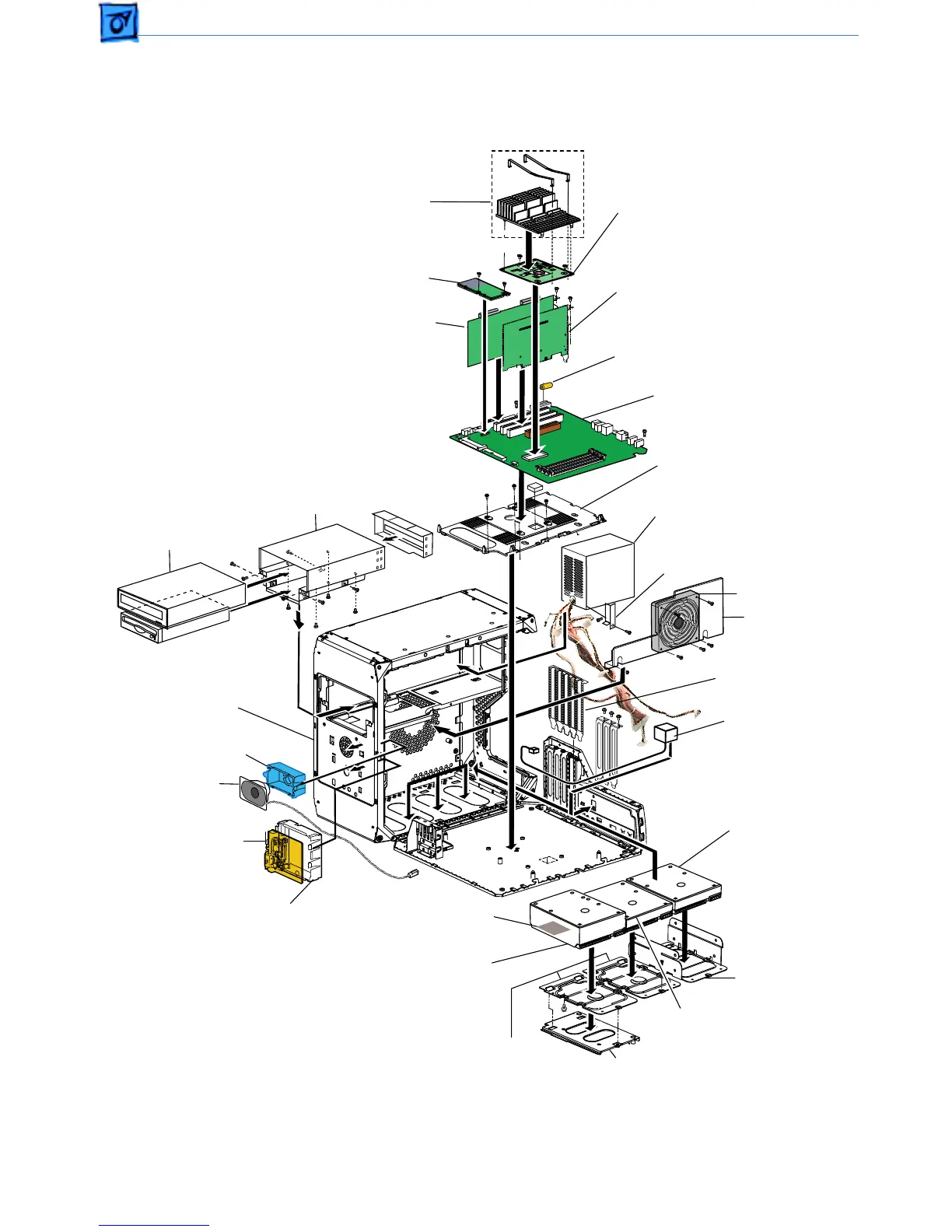

Exploded View 1
Power Mac G4 (AGP Graphics)
Logic Board,
V.1 661-2251
V.2 661-2302
CPU Heatsink Kit
076-0803
Processor Module
350 MHz 661-2278
400 MHz 661-2259,
400 MHz 661-2308 (Rev. 2)
450 MHz 661-2260,
450 MHz 661-2306 (Rev. 2)
500 MHz 661-2262
Power Supply
661-2256, 661-2303
Video Card, AGP, 16 MB,
Rage 128 661-2273
Rage 128 Pro 661-2292
Front Panel
Board
922-4049
Enclosure
w/Chassis
922-4045
Fan Bracket
922-3854
Fan 922-3295
Speaker Housing
922-3982
Speaker
922-4048
Power Supply Bracket
922-3766
PCI Slots Shield
922-3704
Panel Latch
922-4134
Ultra2 LVD SCSI
Dual Chan PCI Card
661-2274
Front Panel Shield
922-3689
DVD-ROM Drive
661-2226
DVD-RAM Drive
661-2162
Zip & DVD
Drive Carrier
922-3972
Modem Card
661-2186
Modem Filter
w/cable
922-4054
Battery
922-4028
Hard Drive SCSI
18 GB Ultra2 LVD
661-2203
Hard Drive Carrier
Ver. 2 076-0777
Hard Drive SCSI 36 GB
Ultra2 LVD 7200rpm 1.6" High
661-2185
Thermal Pad
922-3863
Carrier
Support Plate
922-3871
U-Shaped
Carrier,Ver. 2
076-0778
Hard Drive
Ultra ATA
10GB 661-2247
10GB 661-2294
13GB 661-2245
20GB 661-2249
20GB 661-2299
27GB 661-2250
27GB 661-2300
