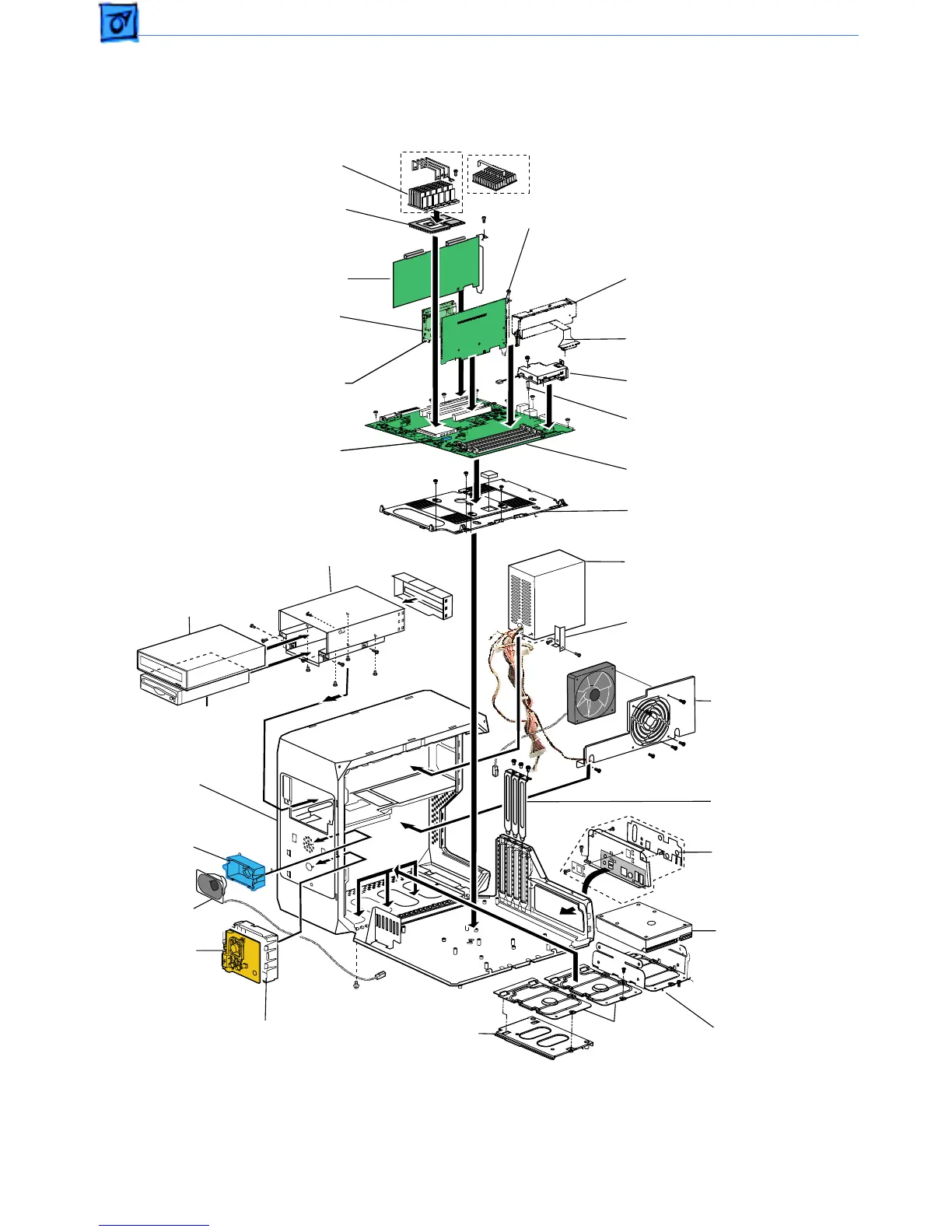

Apple Power Mac G4 - Power Mac G4 (PCI Graphics) Exploded View

Exploded View 16
Power Mac G4 (PCI Graphics)
Panel Latch 
922-4134
Jumper Block Kit
350 MHz 076-0760
400 MHz 076-0758

Logic Board 
661-2253

Modem Shield,Top 
and Bottom Kit
076-0761 
CPU Heatsink Kit
076-0793


Processor Module
350MHz 661-2279
400 MHz 661-2254

DVD-ROM Drive 
661-2163
DVD-RAM Drive 
661-2162
CD-ROM Drive
661-2191, 32x

I / O Panel Kit

Power Supply
661-2256
Video Card, PCI, 16 MB, Rage 128 
Rev. 2 661-2208
Hard Drive IDE
10GB 661-2247
13GB 661-2245
20GB 661-2249
27GB 661-2250
Board, FireWire 
922-3672

Front Panel
Board Rev. 2
922-3852
Enclosure
w/Chassis
922-3983
Fan Bracket 
922-3854 Ver. 2
Fan 922-3295
Speaker
Housing
922-3982
Zip & DVD
Drive Carrier
922-3972
Speaker
922-3712
Power Supply 
Bracket
922-3766
PCI Slots Shield 
922-3704 
Zip Drive
(optional)
661-2161

Hard Drive 
Carrier,Ver. 2 
076-0777 

Video Card, MPEG 2,
DVD, Decoder Module 
661-2109

Ultra SCSI Card
661-2173
Front Panel 
Shield
922-3689

Flex Modem Cable
922-3737 

Standoff Hex 
922-3687
Standoffs, Plastic, Dual Locking
922-3738
*Covers and Enclosure: See page 2. Cables and Screw Matrix: See page 3.
Carrier Support Plate
922-3871
U-Shaped Carrier,

Ver. 2 076-0778
CPU Heatsink Kit
076-0769 Rev. 2 


