Take Apart Modem, AGP Graphics/Gigabit Ethernet/Digital Audio/QuickSilvers - 11
Warning: Use care when
disconnecting or connecting
the modem to the J27
connector on the logic board.
Bent pins in the J27
connector could cause a
short in the logic board.

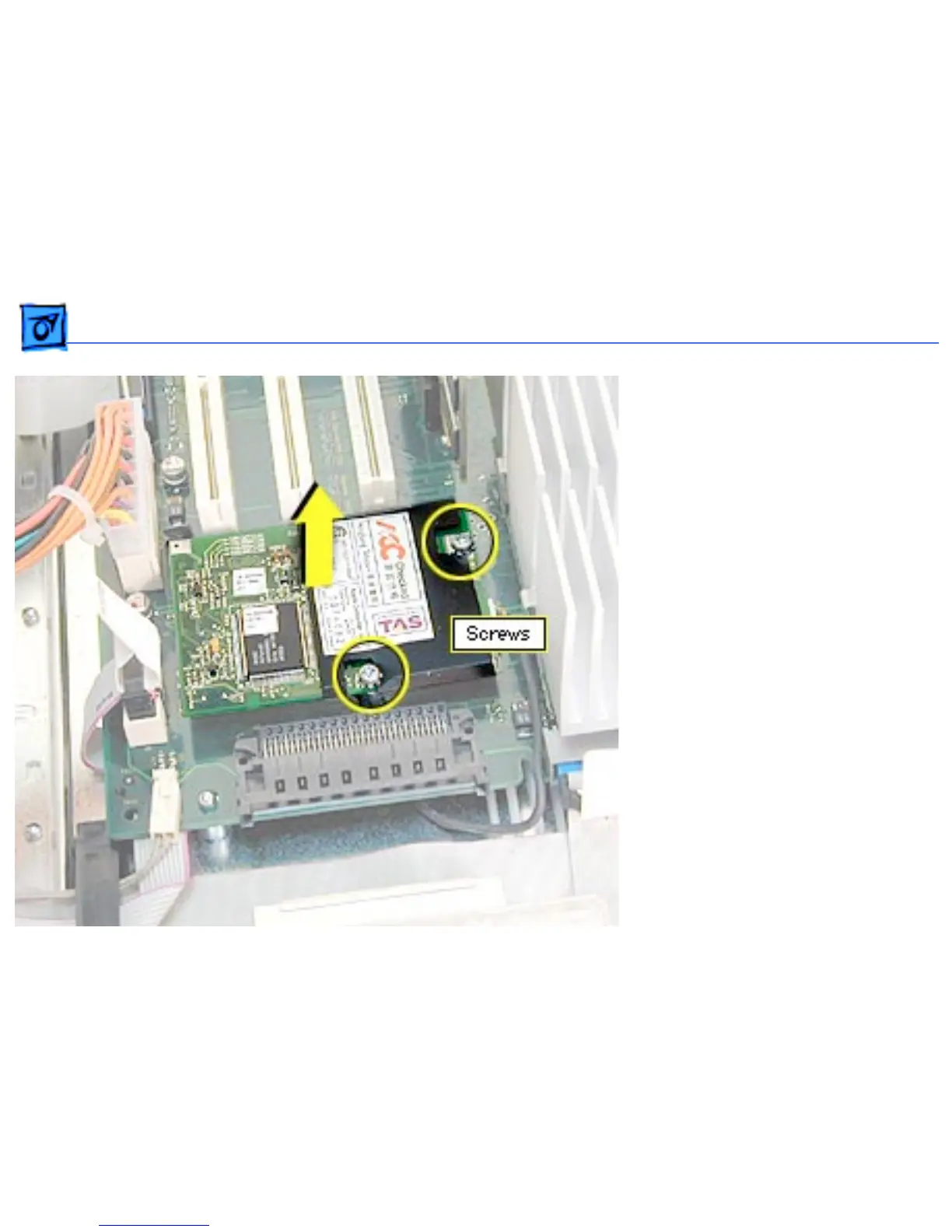

1. Remove the two modem
mounting screws.
2. Lift the modem straight
up to disconnect it from
the logic board.
