Take Apart Processor Module, Power Mac G4 (QuickSilvers) - 32

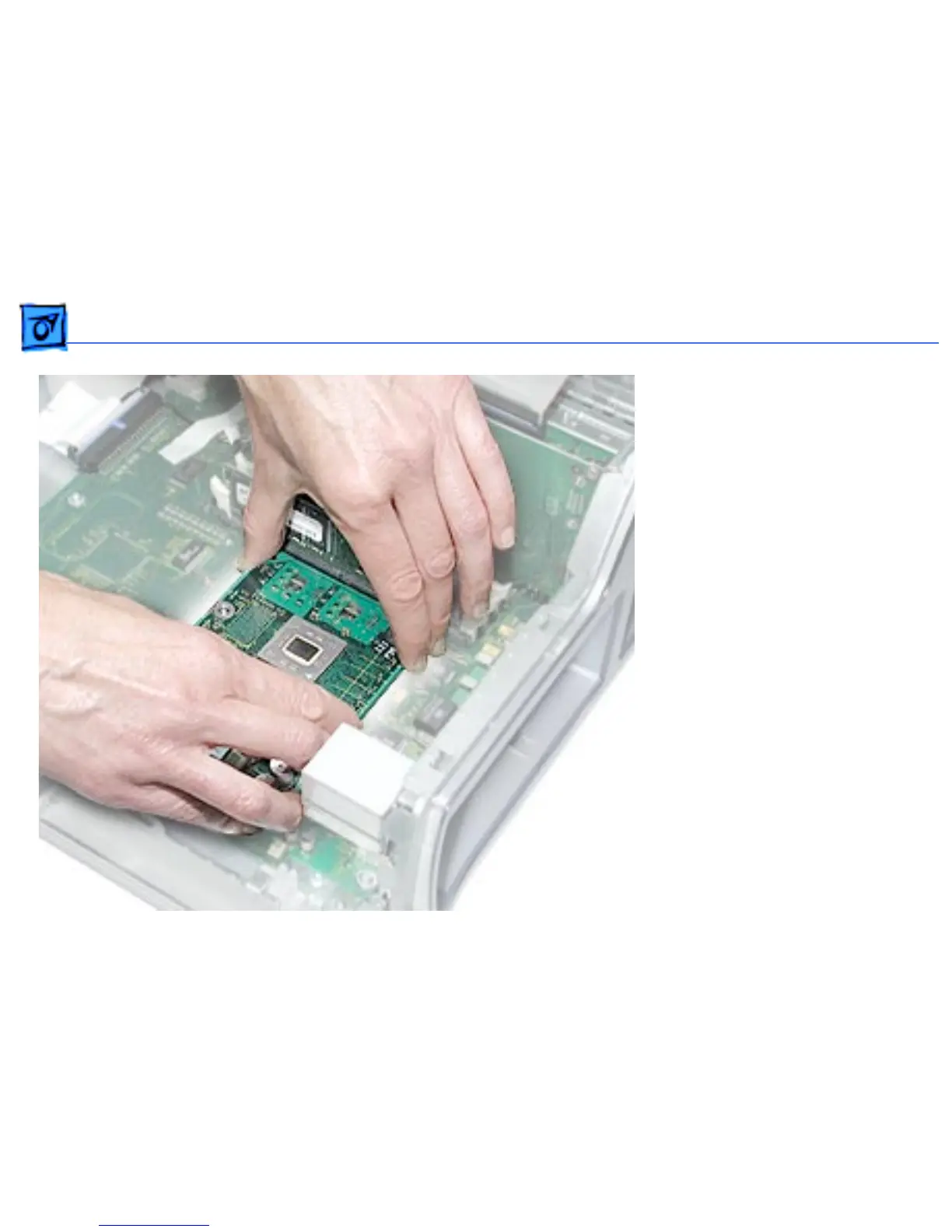

5. To disconnect the
processor from the logic
board, hold it by the long
edges, gently rock the
processor right to left,
and lift straight up.
±
Warning:
Hold the
module as shown when
removing or installing it
to avoid bending the
processor connector
pins.
Replacement Note:
When
replacing the processor
module, tighten all screws
snugly, but not so tightly as
to damage the module. If the
