Take Apart Processor Module, AGP Graphics/Gigabit Ethernet/Digital Audio - 37
3. Remove the processor
mounting screws.

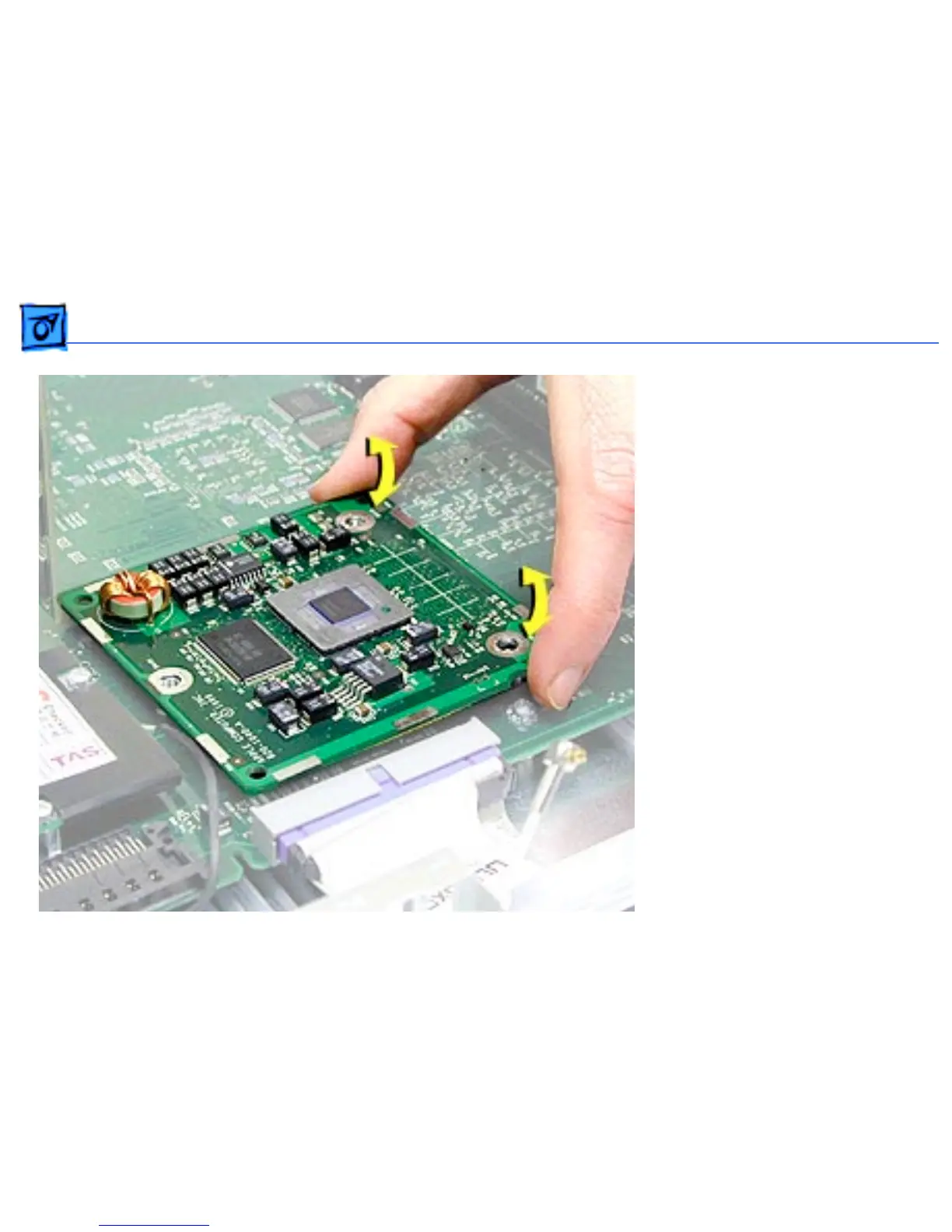

4. To disconnect the
processor from the logic
board, hold it by the
edges nearest the two
opposing screw holes (on
either side of the
connector), gently rock
the processor right to
left, and lift straight up.
±
Warning: Hold the
module as shown when
removing or installing it
to avoid bending the
processor connector
pins.
