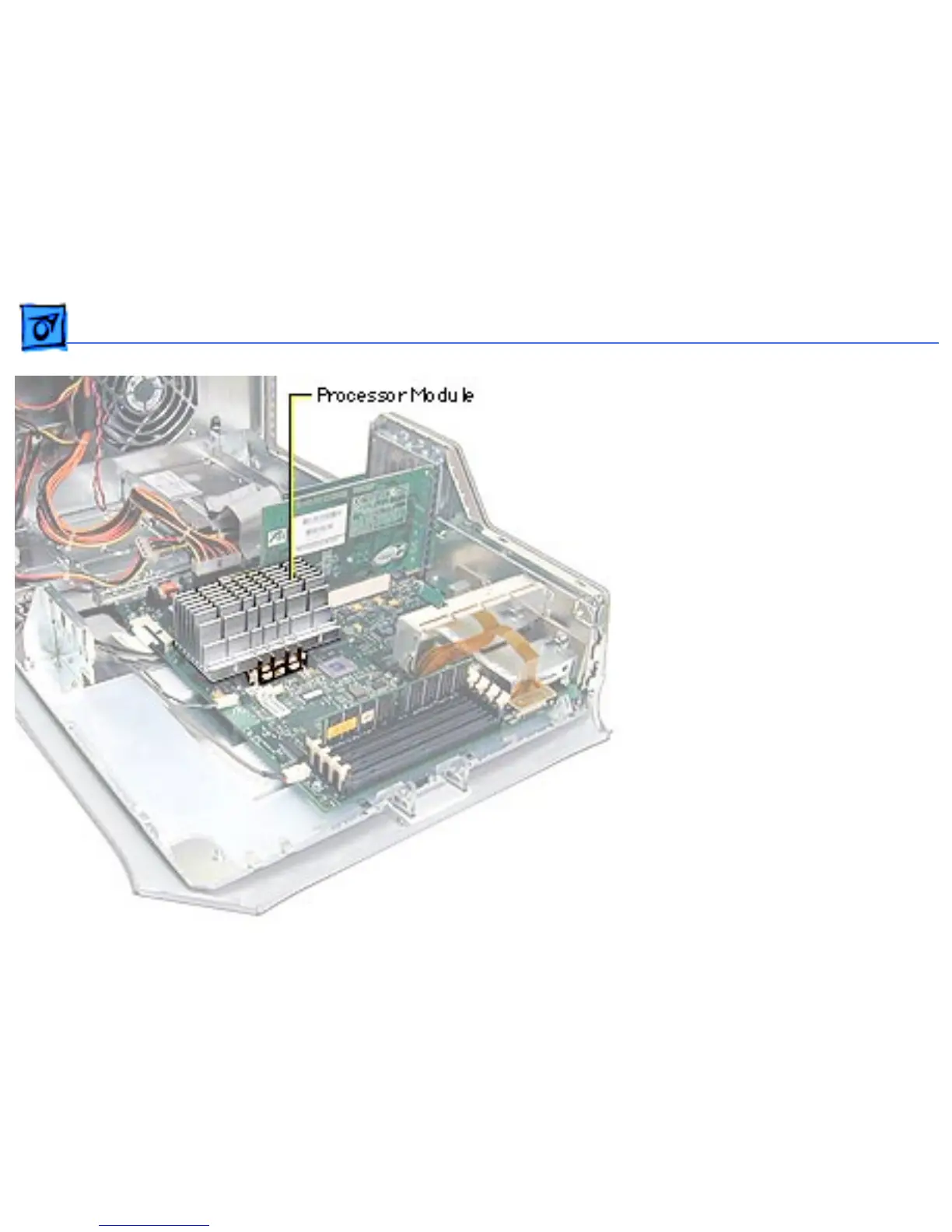

Take Apart Processor Module, PCI Graphics - 39
Processor Module, PCI
Graphics
Before you begin, open the
side access panel.
Note:
The Power Mac G4
(PCI Graphics) processor
requires a jumper installed
at J25 on the logic board.
