Take Apart Logic Board, AGP Graphics/Gigabit Ethernet/Digital Audio - 51
procedure, the steps for
removing the board are the
same.
1. Disconnect all cables
from the logic board.

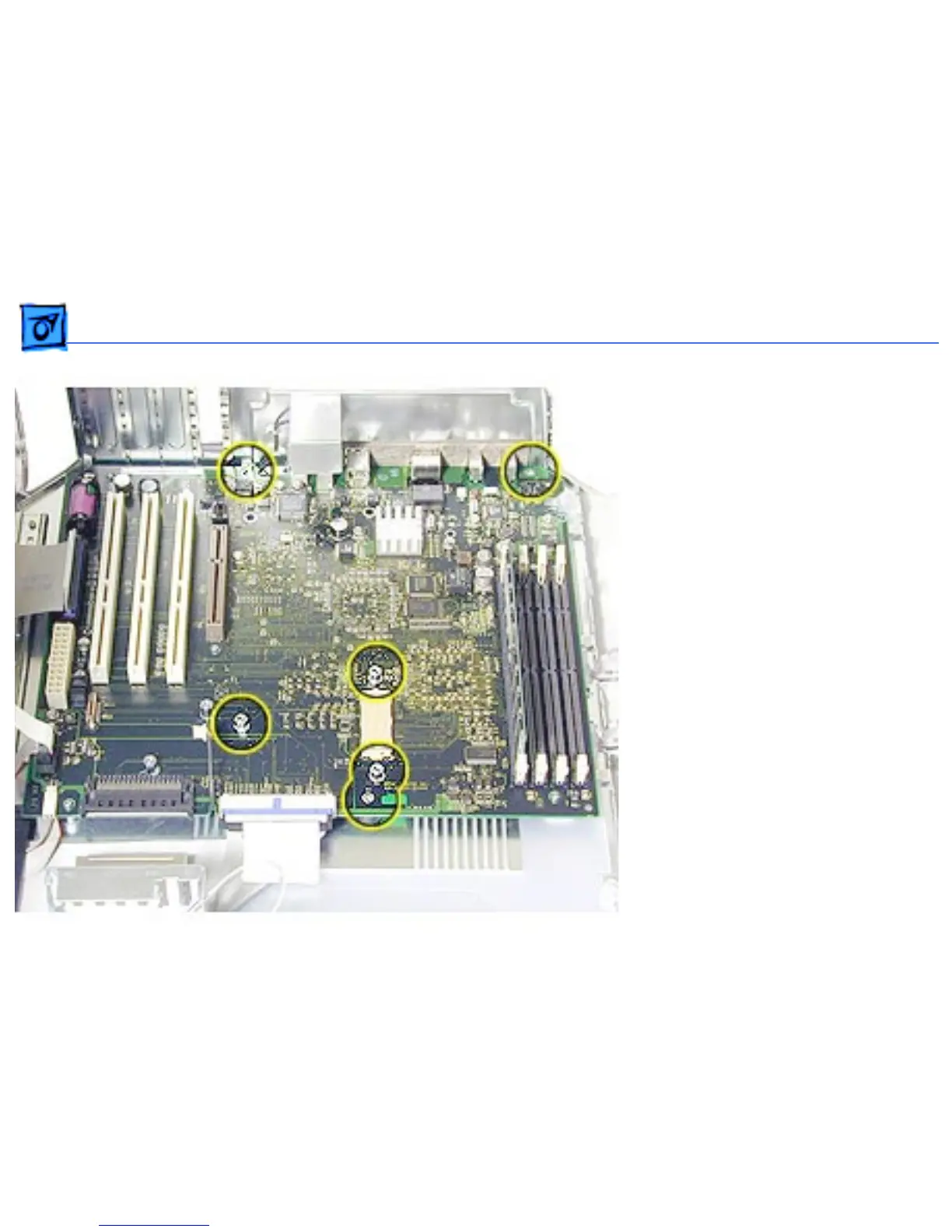

2. Using a Phillips
screwdriver, remove
the three logic board
mounting screws.
3. For Power Mac G4
(Gigabit Ethernet/
Digital Audio)
computers, remove the
three processor module
standoffs.
