Take Apart Logic Board, PCI Graphics - 55

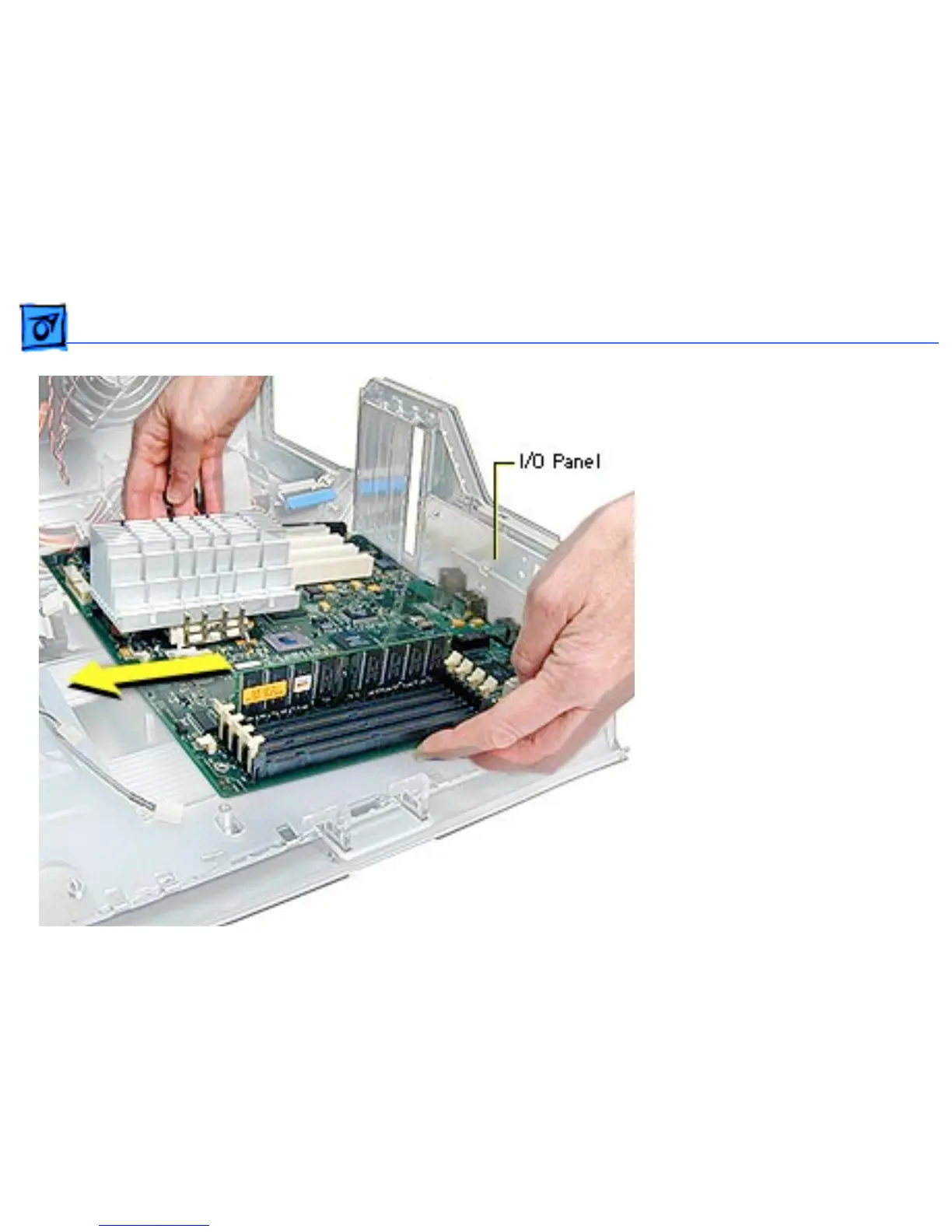

4. Tilt the logic board so
that the ports clear the
openings in the I/O
panel.
5. Lift the board out of the
computer.
Important: If you are
replacing the logic board,
you must transfer the
processor module, jumper,
video card, PCI cards,
memory cards, FireWire
board, and modem from the
original logic board to the
replace-ment board. You
must also cover the
processor jumper with a
