Apple Power Mac G4 - Page 92

Take Apart Hard Drive, Ultra2 LVD SCSI - 70

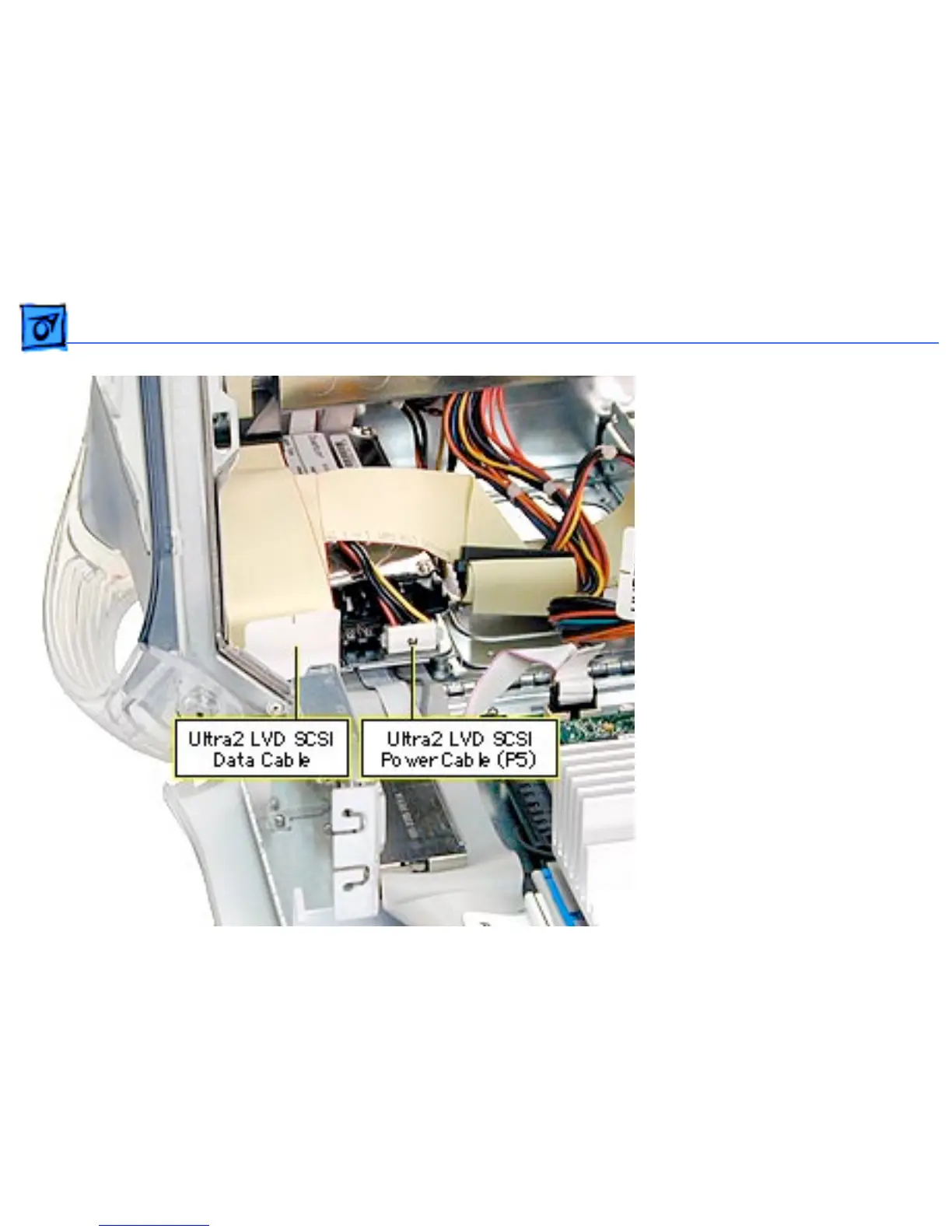

2. Disconnect the SCSI hard
drive power cable (P5).
Caution: Pull the SCSI
power cable straight out
of the connector on the
drive. Any up or down
motion to the connector
could damage the drive.
Replacement Note: The
power cables attach to
drives as follows:
P5 attaches to bay 1
P2 attaches to bay 2
P3 attaches to bay 3
3. Disconnect the Ultra2
LVD SCSI data cable from
the hard drive.
