Take Apart Main Deflection Board - 49

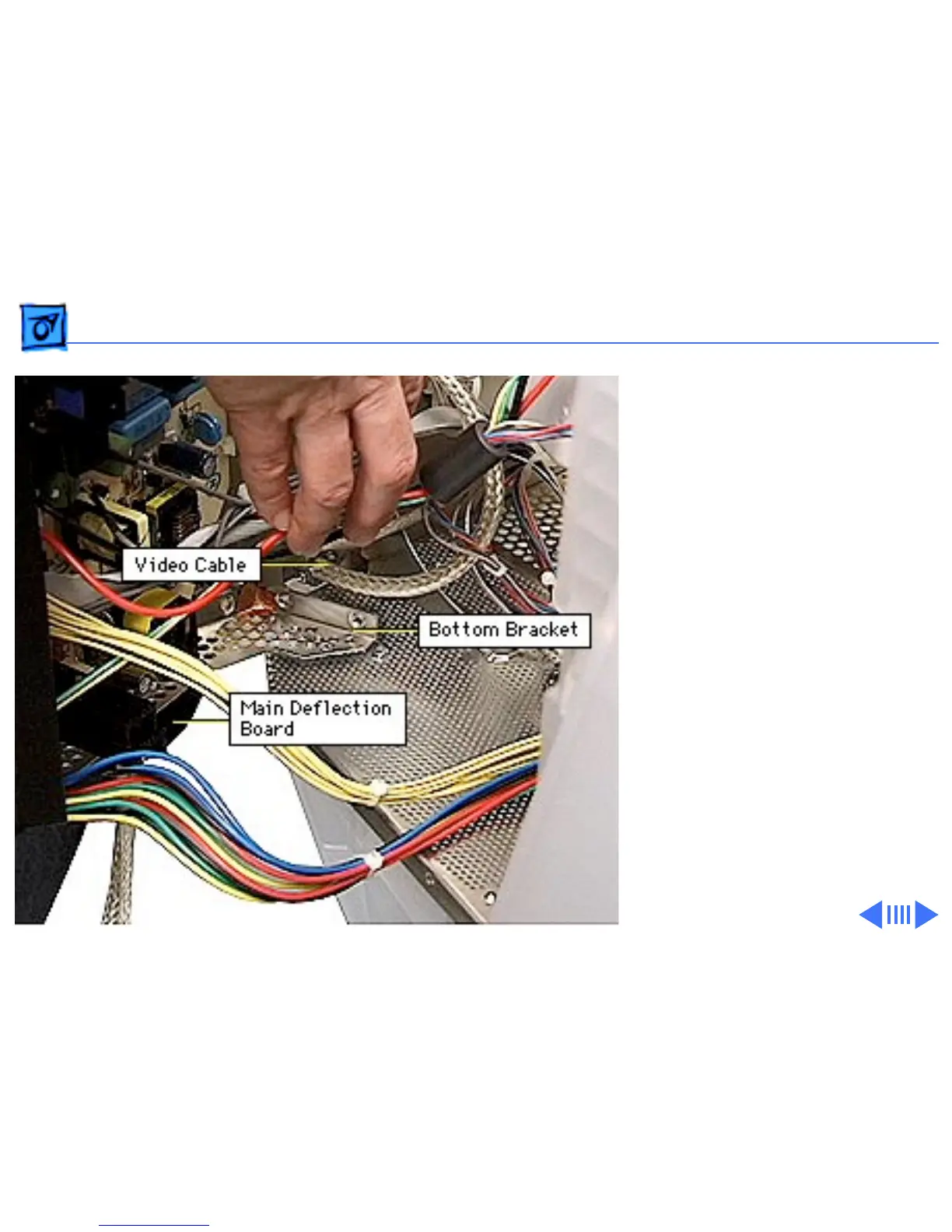

5 Swing out the main
deflection board far
enough until you can see
that the bottom bracket
at the inside corner
clears the video cable at
its strain relief.
