Take Apart Main Deflection Board - 50
6 Lift up the main
deflection board and
move it off the three
hinge hooks.

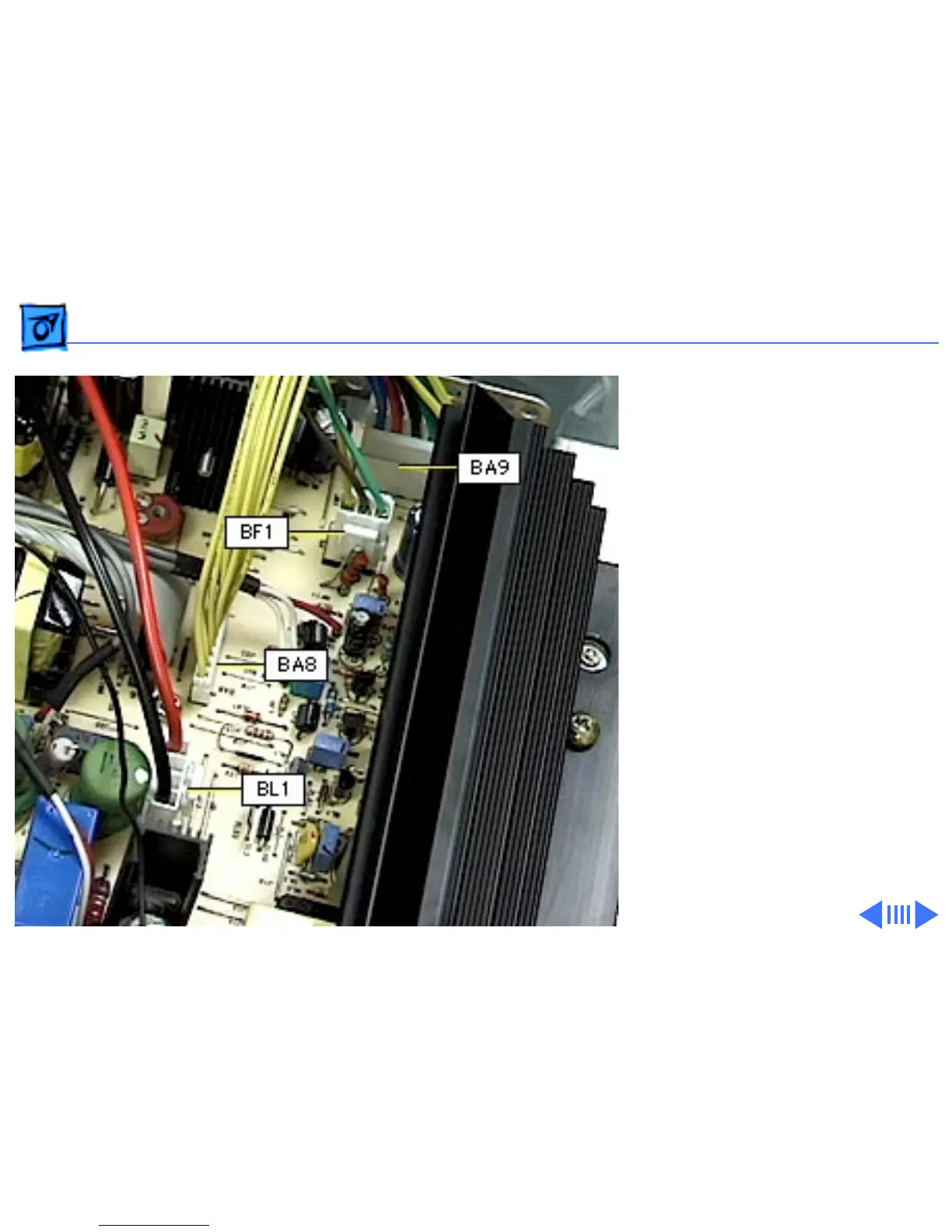

7 While supporting the
board, disconnect
• 10-pin locking
connector from BA9
(to power board)
• 3-pin locking
connector BF1 (to
yoke)
• 9-pin connector BA8
(to power board)
• 2-pin locking
connector BL1 (to
yoke)
