Apple Studio Display - Page 77

Take Apart Main Deflection Board - 51

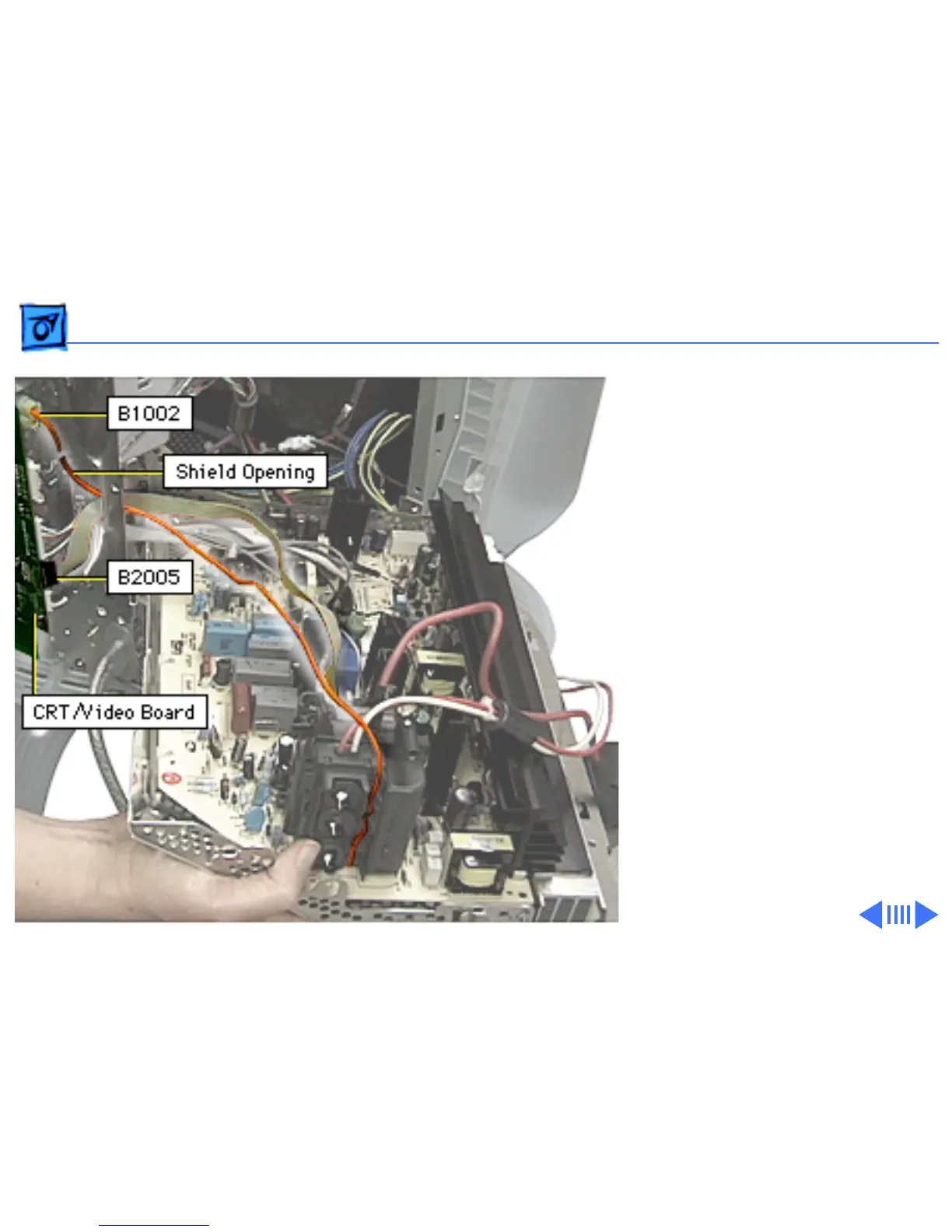

8 Without straining the
remaining cables,
disconnect these cables
from the right side of the
CRT/video board:
• Orange wire from
B1002
• 10-pin ribbon cable
from B2005
9 Route the cables through
the shield opening of the
CRT/video board.
