Apple Studio Display - Page 78

Take Apart Main Deflection Board - 52

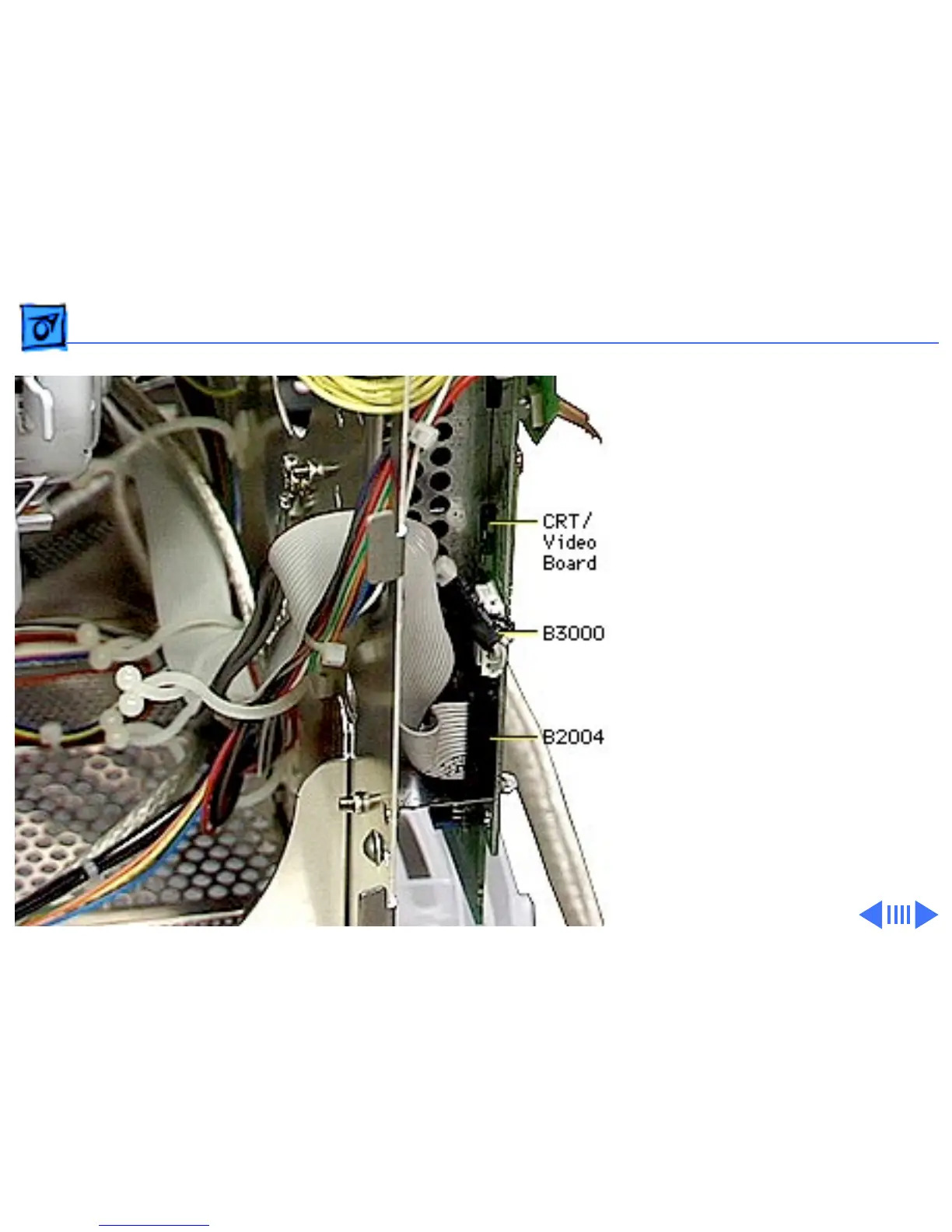

10 Open the cable clamps
on the interior side of
the CRT/video board
shield, and remove the
remaining ribbon cable
(B2004) and the ferrite
bead connector cable
(B3000) from the left
side of the CRT/video
board.
11 Remove the main
deflection board from the
display assembly.
