Take Apart Main Deflection Board - 53

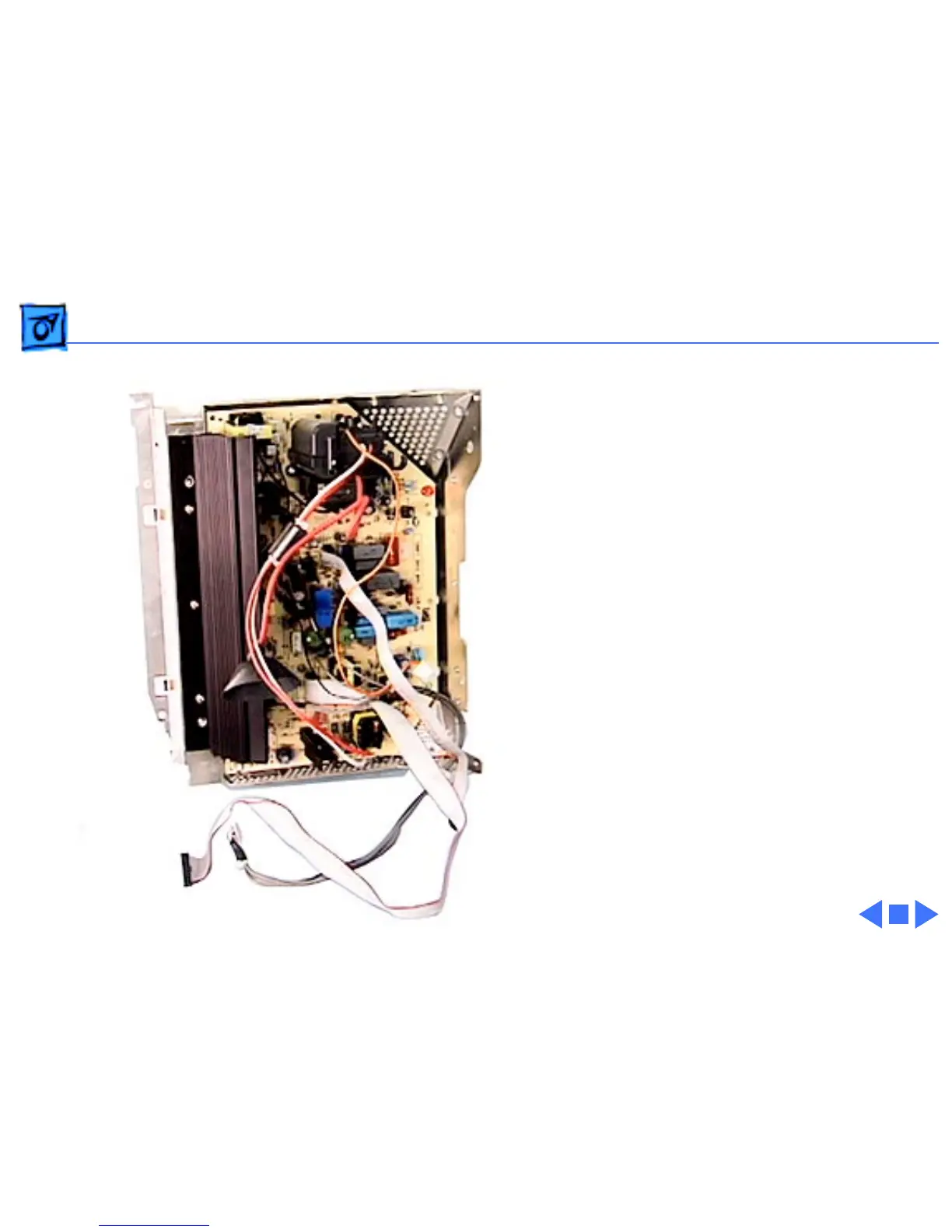

Replacement Note:
The
main deflection board
module appears as shown and
includes soldered cables, but
no detachable cables. (You
can order a cable kit, Apple
part number 076-0765, if
any of the detachable cables
need to be replaced.)
Replacement Note:
Refer to
the illustration “Detachable
Cables: Main Deflection
Board and CRT/Video
Board” in the Exploded View
chapter.
