Take Apart CRT/Video Board - 59

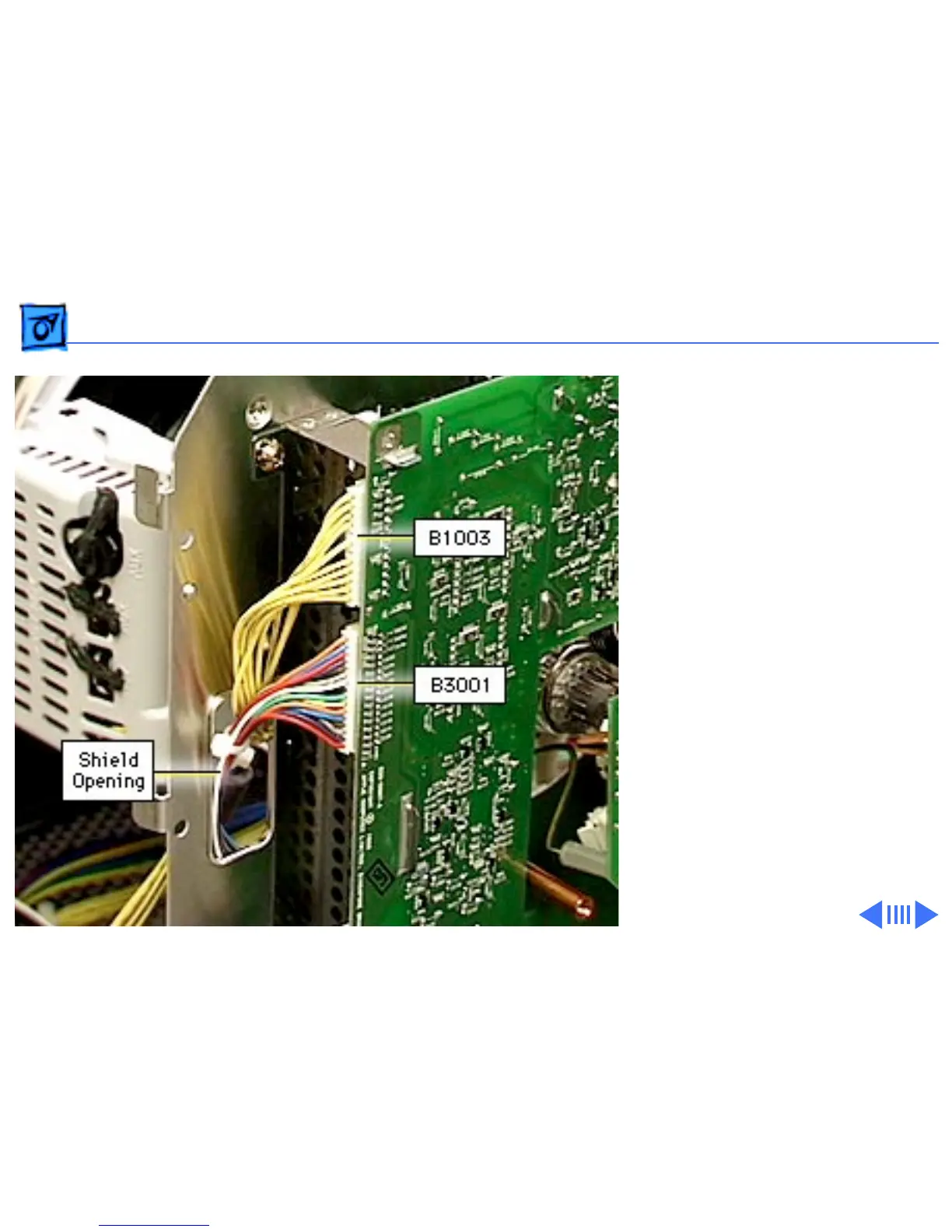

5 From the left side of the
board, disconnect
12-pin connector
from B1003
16-pin connector
from B3001
6 Push the cables through
the shield opening.
