Take Apart CRT/Video Board - 60

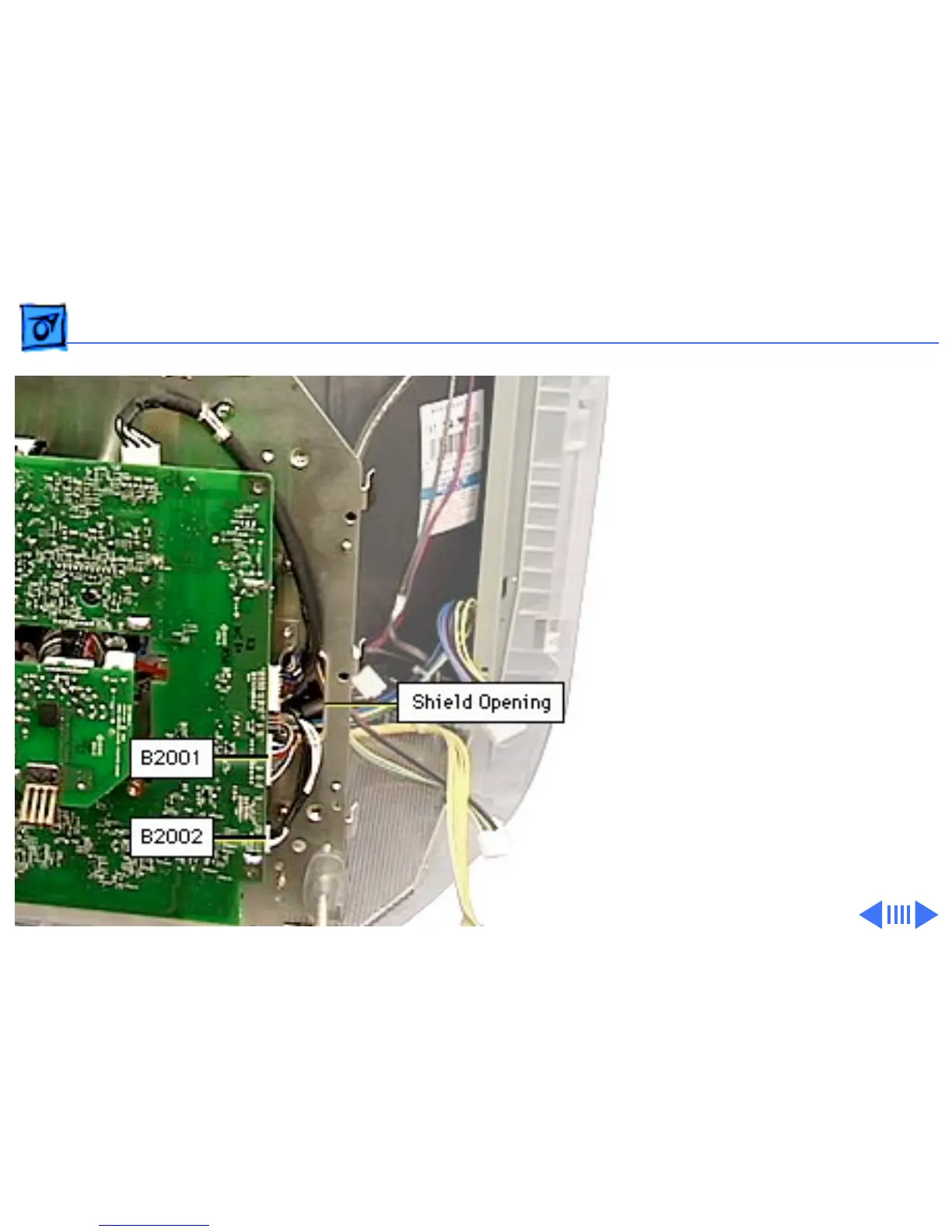

7 From the right side of
the board, disconnect
• 10-pin connector
from B2001
• 6-pin connector from
B2002
8 Push the cables through
the shield opening.
