Studio Display (17" ADC) Take Apart -
23

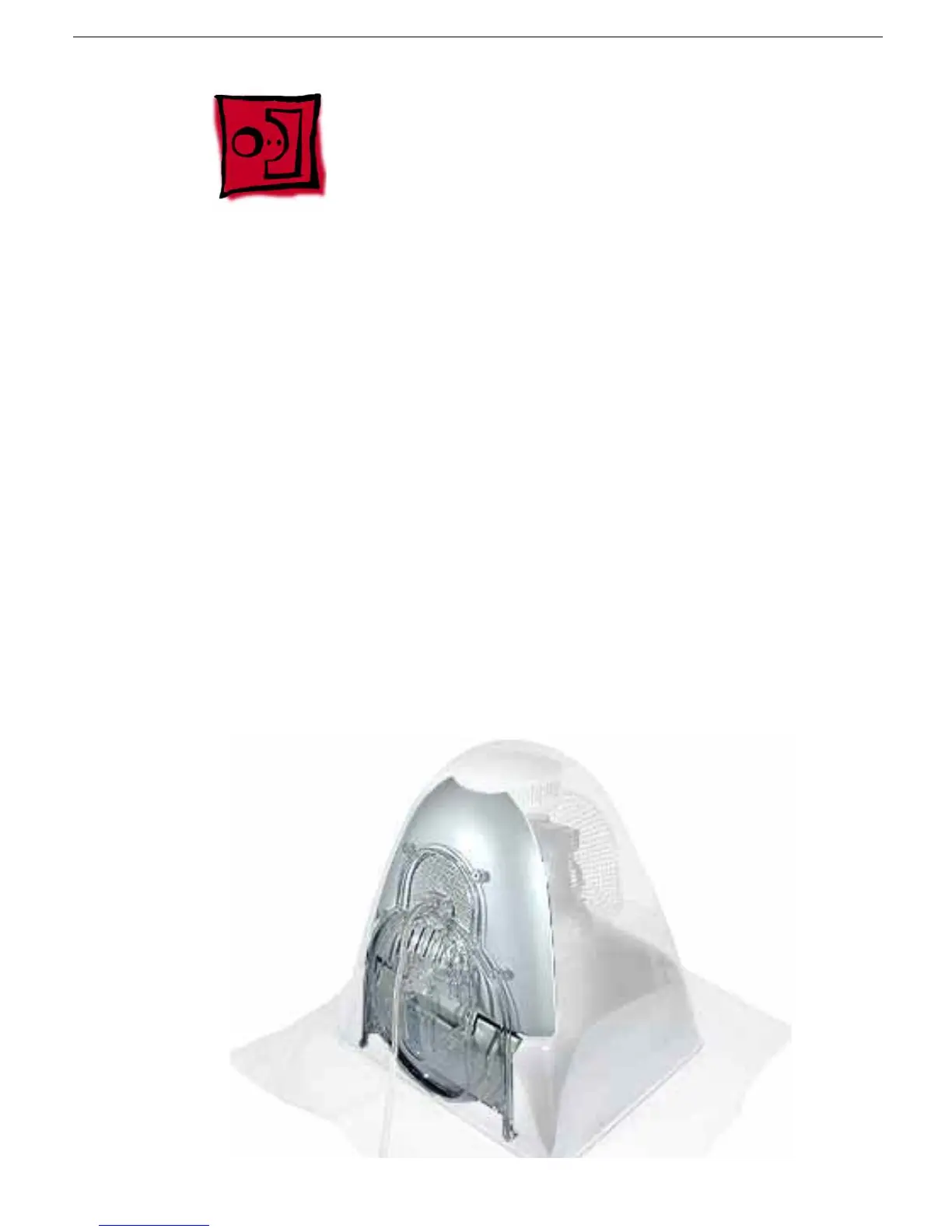

Deflection Board and Mount Assembly
Deflection Board and Mount
Assembly
Tools
The following tools are required:
• #2 Phillips screwdriver
• #1 Phillips screwdriver
• Small, plastic, flat-blade screwdriver
• Wire cutter
• Jeweler’s screwdriver
Preliminary Steps
Before you begin, remove the following:
• Monitor stand
• Rear housing
• CRT shroud
• Discharge the CRT
