Studio Display (17" ADC) Take Apart

Deflection Board and Mount Assembly

Procedure

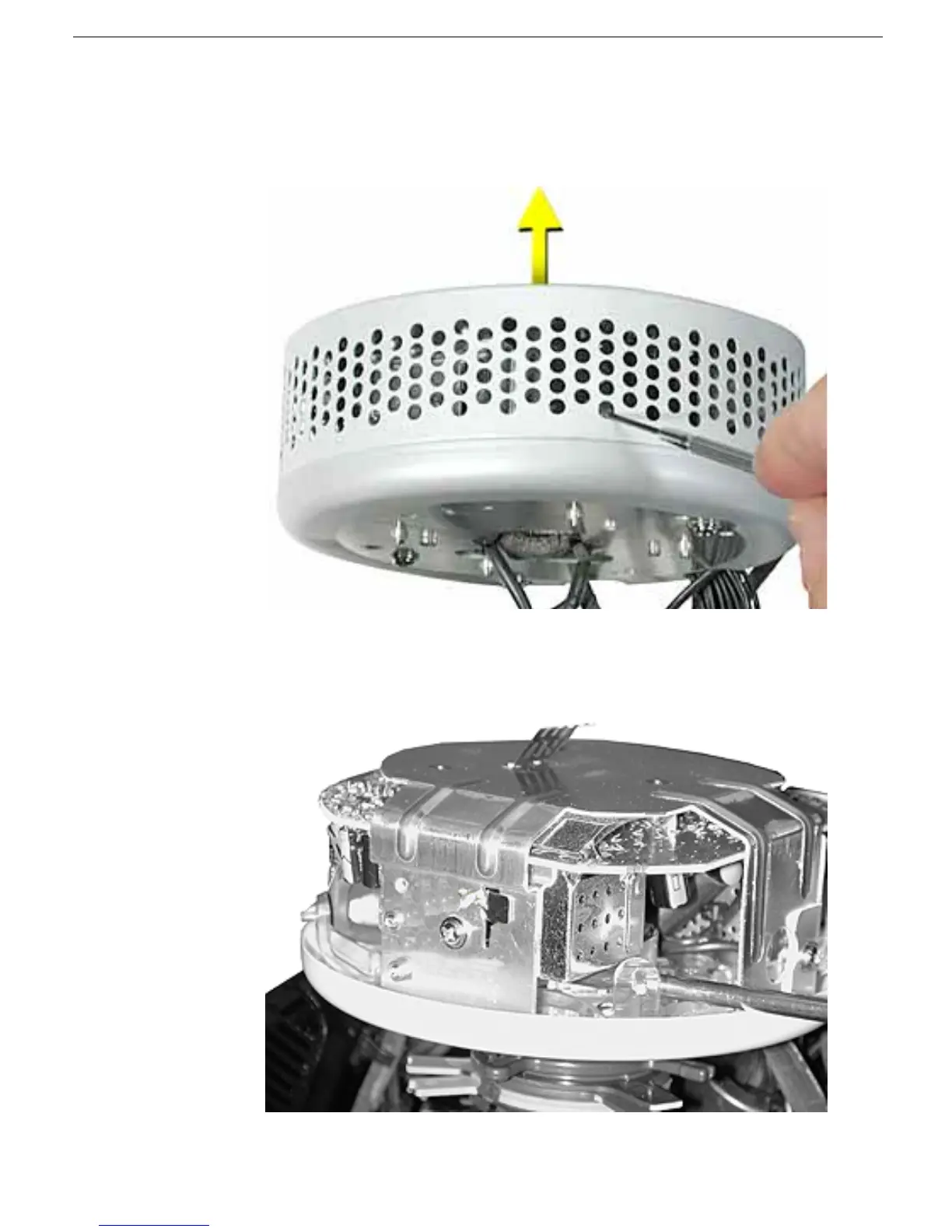

1. Using a jeweler's screwdriver, depress ﬁve plastic tabs while pulling up on the video

can. Separate the video can from the video shield.

2. Use #2 Phillips screwdriver to loosen the neck clamp as shown below.
