Studio Display (17" ADC) Take Apart -
31
Deflection Board Assembly
Procedure

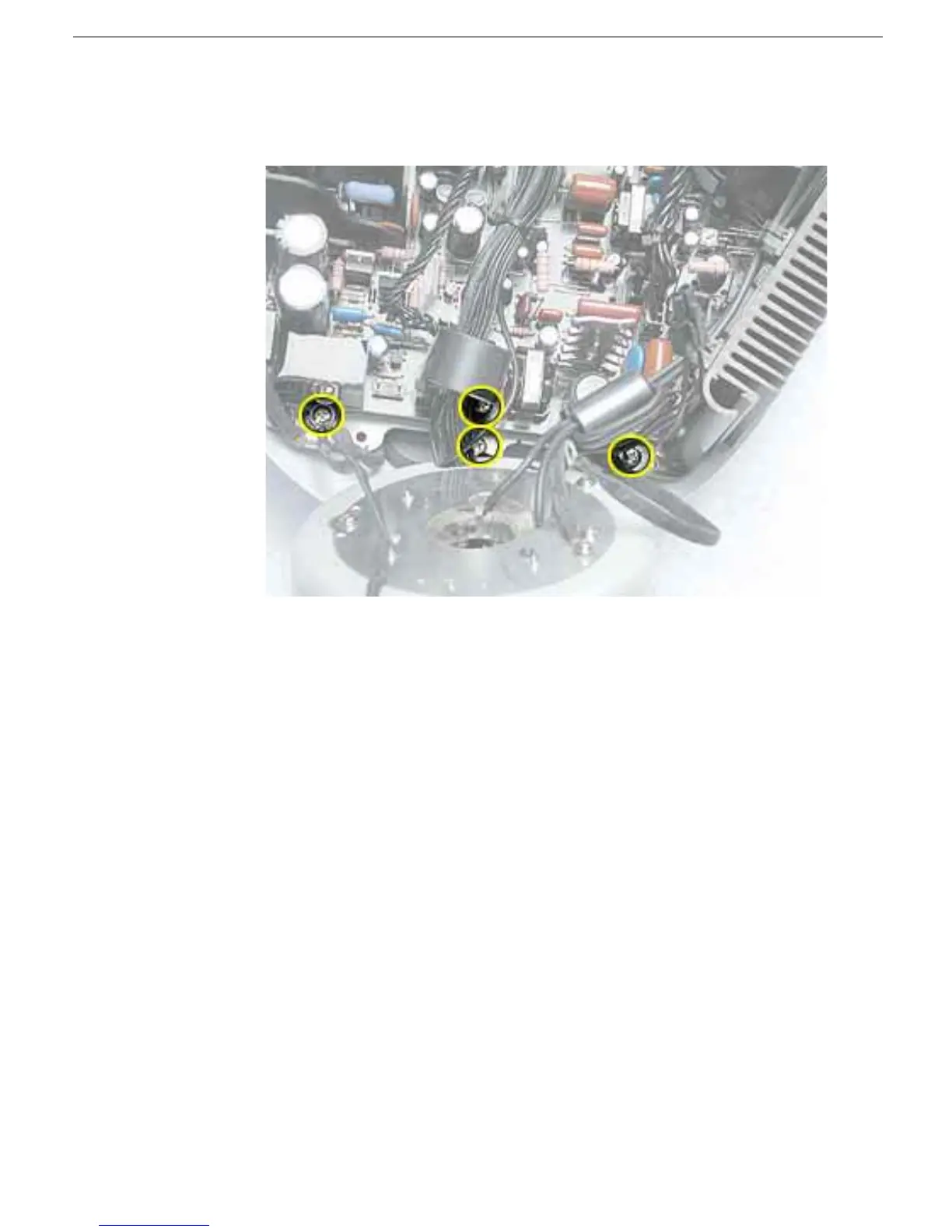

1. Remove four screws and two ground straps from the deflection board and PCB mount.
Replacement Note:
Attach ground straps to the outside mounting screws, and attach
a ground strap and clip to the lower, center mounting screw.
