32 - Studio Display (17" ADC) Take Apart
Deflection Board Assembly

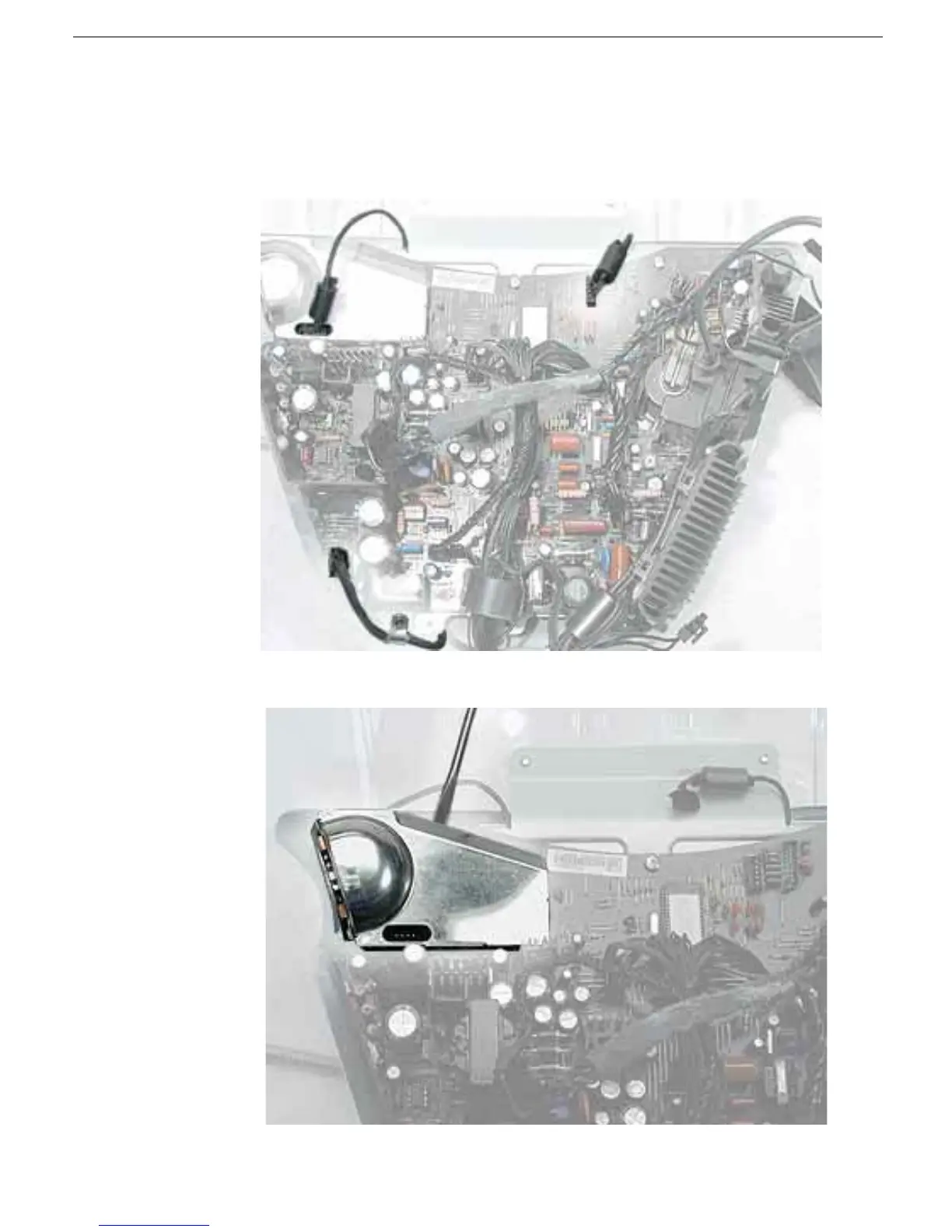

2. Disconnect these cables from the analog board:
• USB cable from connector B103
• LED cable from connector B105
• Ground cable from connector B901
3. Use flat-tip screwdriver to pry off the metal USB shield.
