36 - Studio Display (17" ADC) Take Apart
Video Cable
Procedure
Replacement Note: Note the positioning of the video cables before removing them from
the PCB mount in the next step.

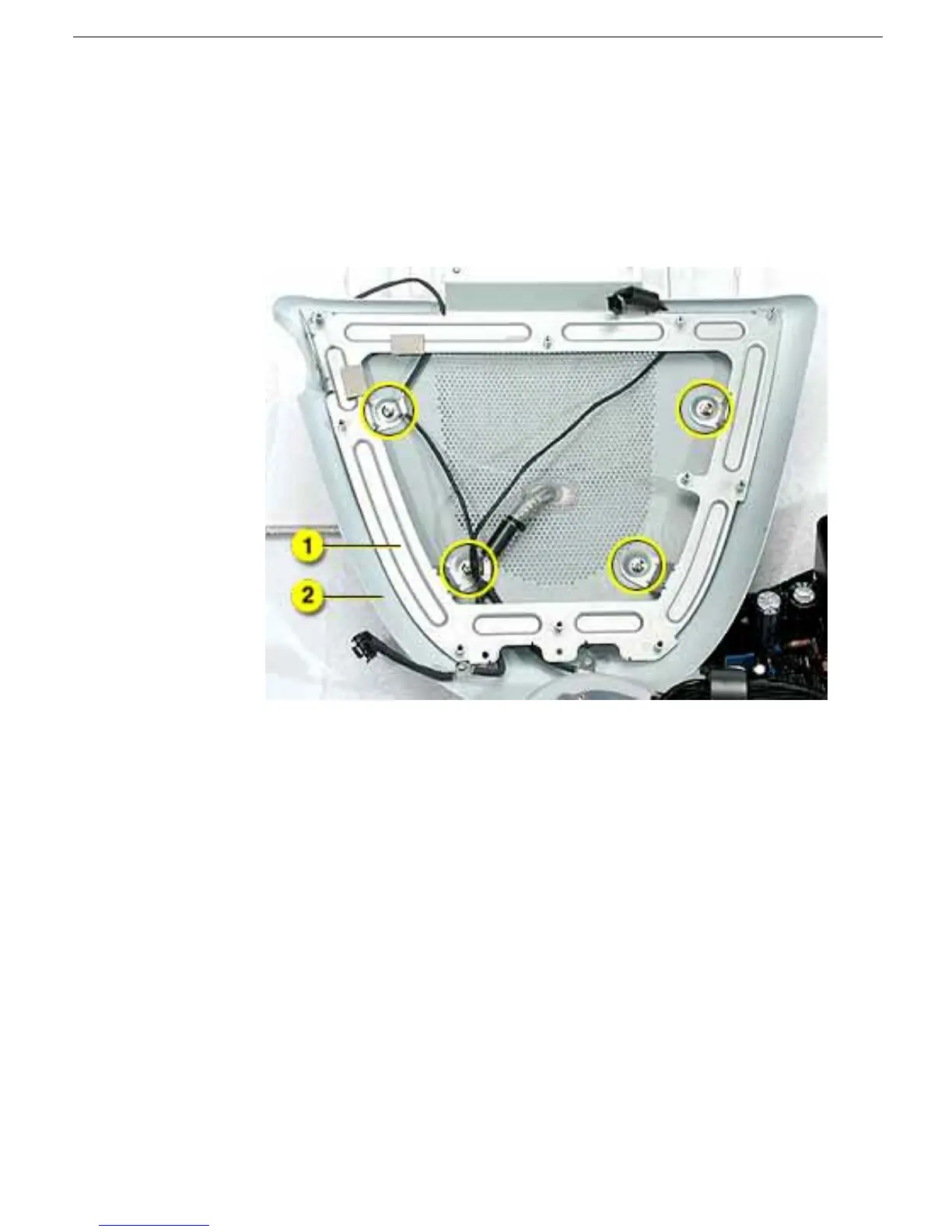

1. Remove four screws from the PCB mount, and remove the PCB mount (1) from the
bottom pan (2).
