Studio Display (17" ADC) Take Apart - 37
Video Cable

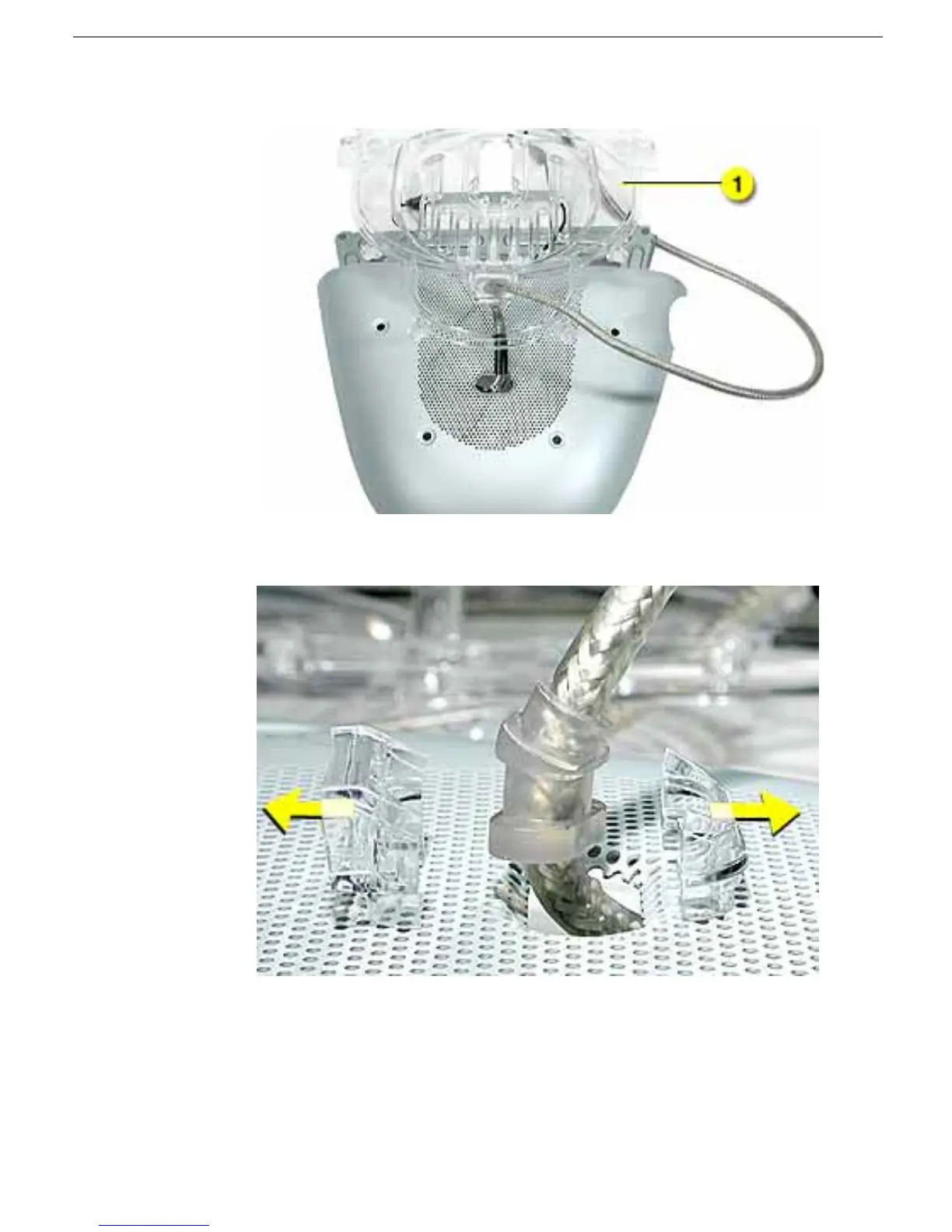

2. Turn over the bottom pan, and separate the stand tilt base (1) from the bottom pan.
3. Pull the video cable off the bottom pan and pop open the plastic strain reliefs.
