38 - Studio Display (17" ADC) Take Apart

Video Cable

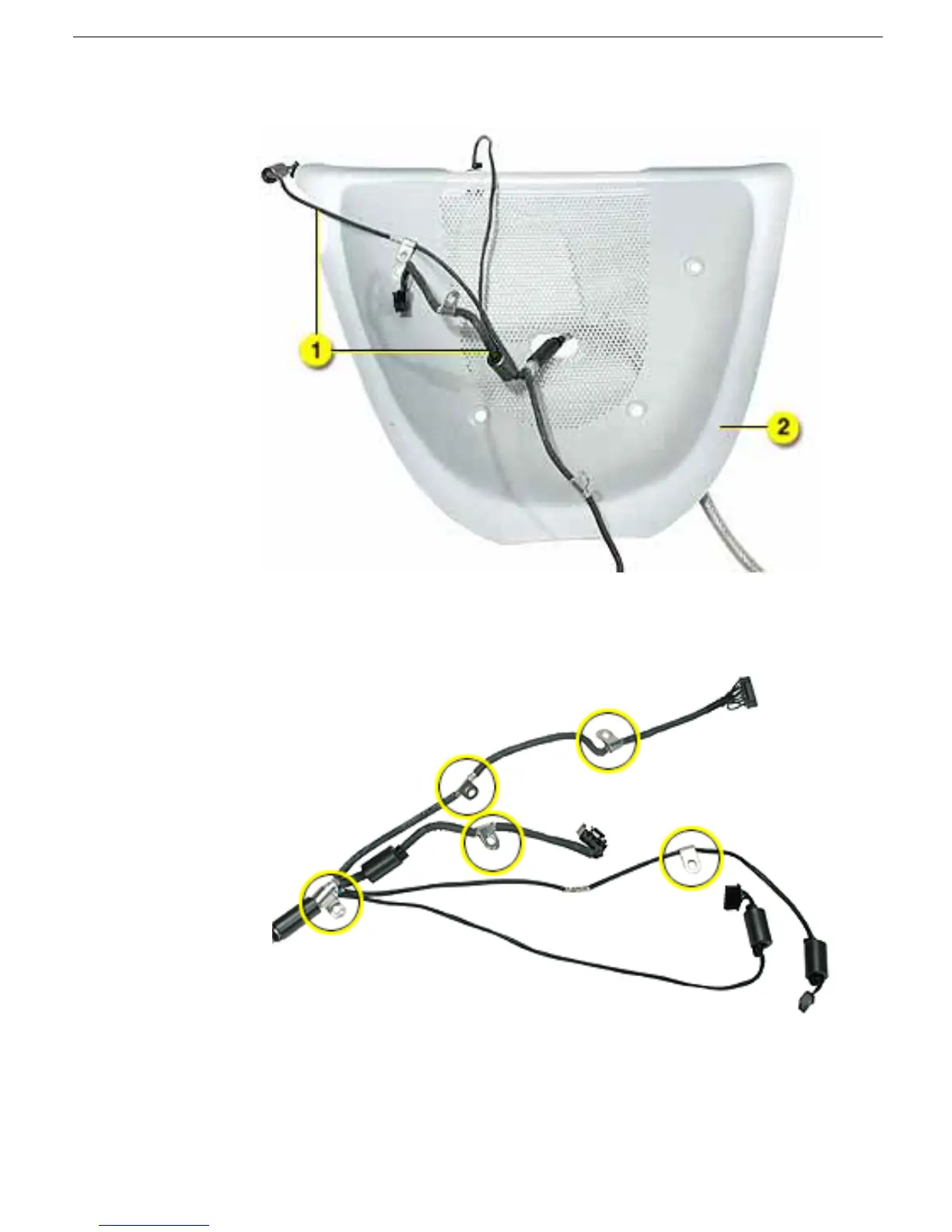

4. Lace the video cables (1) through the bottom pan (2).

Note: Remove ﬁve clips from the video cables before returning a faulty cable to Apple.

Note the position of the clips in the photo below.
