EVM4X, WMVM: Installation Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
4
A221123A

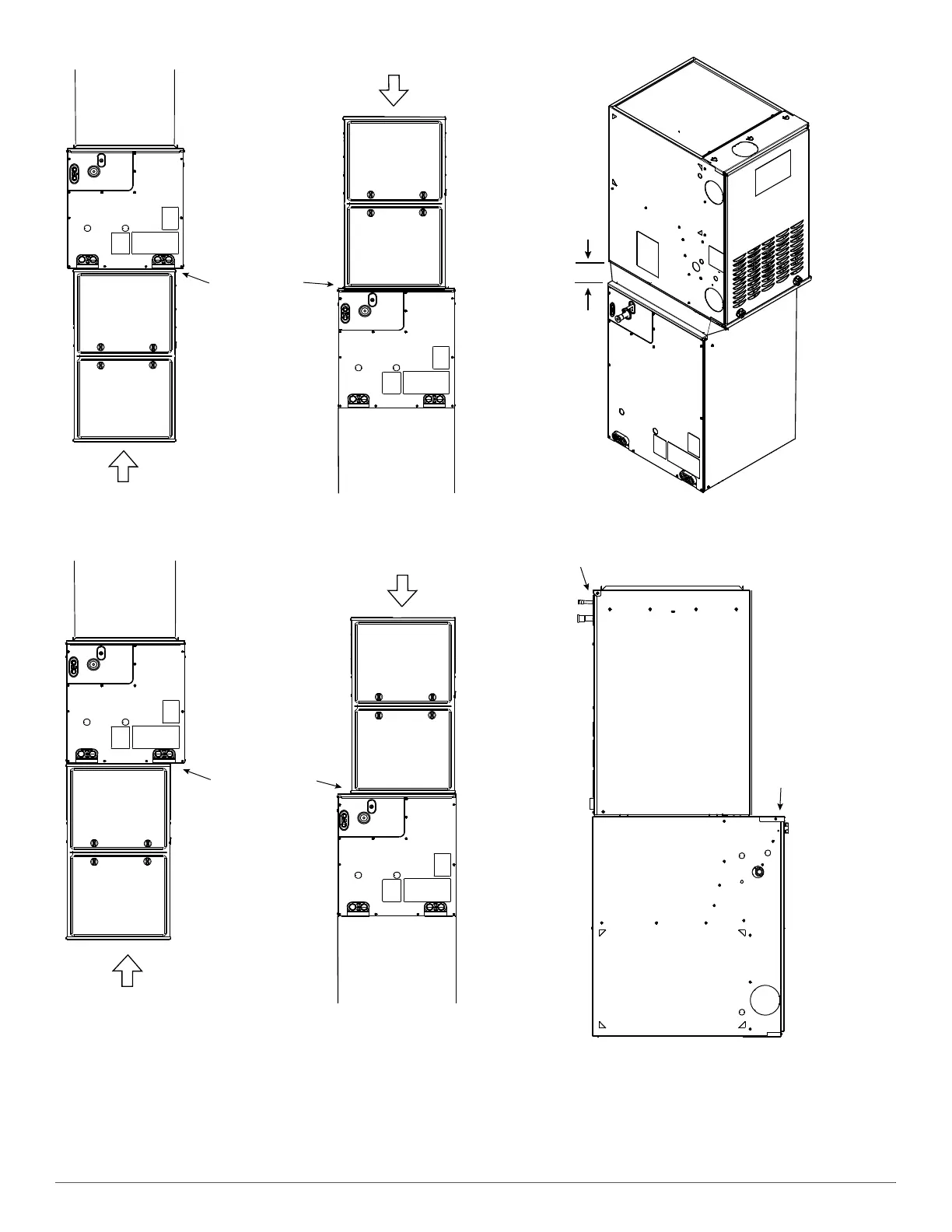

Fig. 4 – Smaller Furnace, Equal Overhang, Flush Mount
(not recommended)
A221124A
Fig. 5 – Smaller Furnace, Offset, Flush Mount Right or Left
(not recommended)
IMPORTANT: Any installation configuration shown here that is noted
as ‘not recommended’ indicates that this configuration has not been
factory tested and therefore full performance specifications have not
been certified. In instances where a ‘not recommended’ installation
configuration is required, it is the responsibility of the installer to ensure
all performance criteria is met.
A221125A
Fig. 6 – 90° Rotation (shown in downflow)
4" Transition Required (not recommended)
A221111
Fig. 7 – 180° Rotation (shown in upflow)
(not recommended)
Airflow
Ductwork
Airflow
Ductwork
Flush Mount
Equal Overhang
with block-off plates
x
x
x
x
Flush Mount
Offset Left or Right
with block-off plates
Airflow
Ductwork
Airflow
Ductwork
x
x
x
x
4”
Front of Coil
Front of
Furnace
