APR EVM4X - Upflow Coil Installation

EVM4X, WMVM: Installation Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
3
To install cased coils in downflow applications, follow the instructions
below, (Downflow Coil Installation on p5).
To install cased coils in horizontal applications, follow the instructions
below, (Horizontal Coil Installation on p5).
See Table 1 for coil connection options. Refer to instructions for
placement of coil casing on furnace.
NOTE: We recommend a 4" transition for peak performance, but it is
not required unless stated.
A221121A

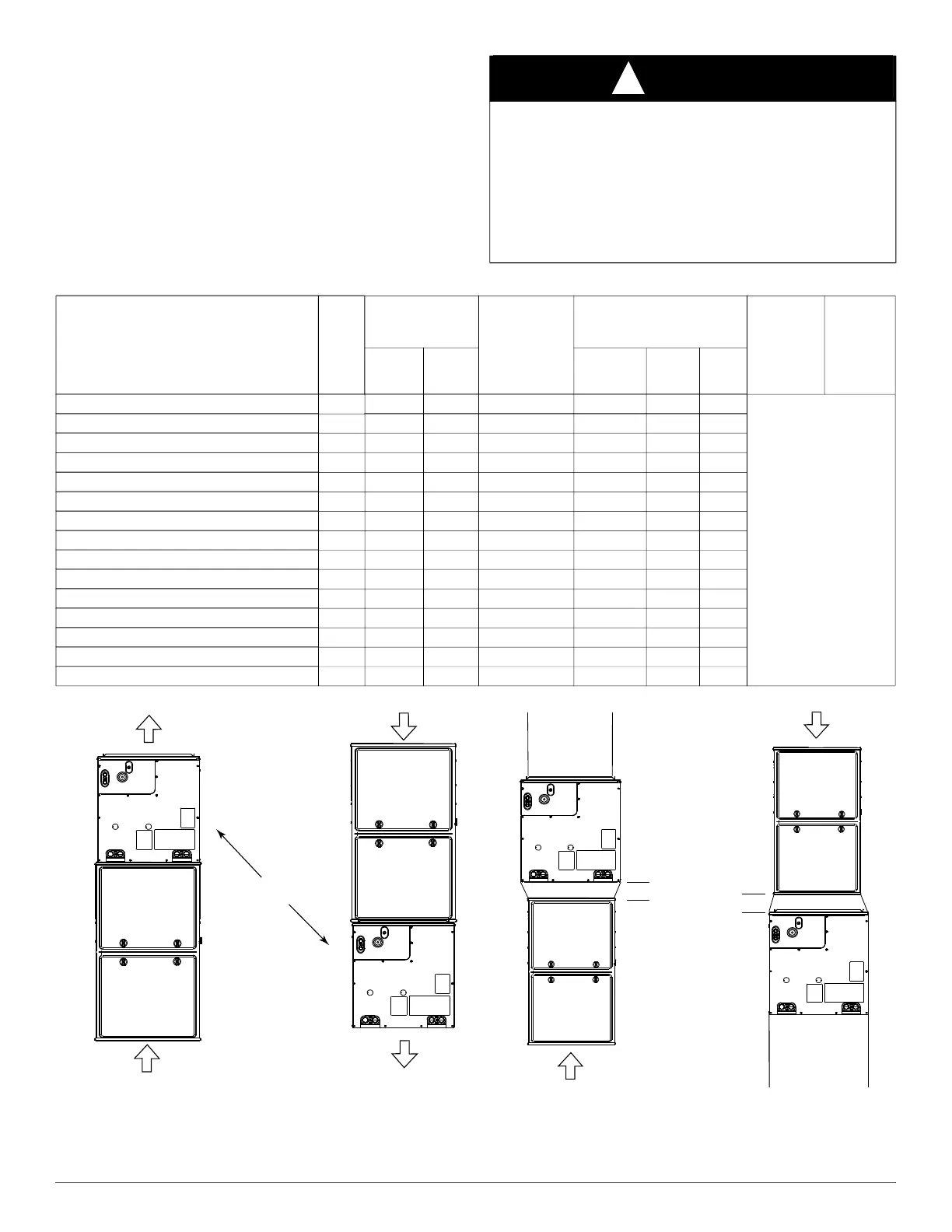

Fig. 2 – Typical Flush-Fit Coil Installation on Furnace
(recommended)
A221122A
Fig. 3 – Adapter(s) Installation When Coil is Larger than Furnace
(recommended)
CAUTION
!
PROPERTY DAMAGE HAZARD
Failure to follow this caution may result in property damage.
Installing coils rotated 90° from the front of the furnace, in upflow,
downflow, or horizontal applications, may cause water blow-off or coil
freeze-up due to the concentration of air on one slab of the coil or lack
of air to a slab of the coil. It is required that on this type of application,
a field-supplied adapter be placed between the coil and furnace to allow
air to distribute properly between all slabs of the coil.
Table 1 – Coil Connections / Orientations
Model
Nom.
Tons
Line Set
Connection Tube
Size, in.
Flush Fit to
Furnace Width,
in. (mm)
Fits Next Smaller Furnace
Width
90°
Rotation to
Furnace
(4" Min.
Transition
Required)
180°
Rotation
to Furnace
Suction Liquid
Equal
Overhang
Offset
Left
Offset
Right
EVM4X24M14A / WMVM24414XA 2 3/4 3/8 14-3/16 (360)
ALL
Upflow,
Downflow,
Horizontal Right,
Horizontal Left
EVM4X24M17A / WMVM24417XA 2 3/4 3/8 17-1/2 (445) X X X
EVM4X25M17A / WMVM25417XA 2 3/4 3/8 17-1/2 (445) X X X
EVM4X30M17A / WMVM30417XA 2.5 3/4 3/8 17-1/2 (445) X X X
EVM4X31M17A / WMVM31417XA 2.5 3/4 3/8 17-1/2 (445) X X X
EVM4X32M17A / WMVC32417XA 2.5 3/4 3/8 17-1/2 (445) X X X
EVM4X36M17A / WMVM36417XA 3 3/4 3/8 17-1/2 (445) X X X
EVM4X42M21A / WMVM42421XA 3.5 7/8 3/8 21 (533) X X X
EVM4X43M21A / WMVM43421XA 3.5 7/8 3/8 21 (533) X X X
EVM4X44M21A / WMVM44421XA 3.5 7/8 3/8 21 (533) X X X
EVM4X48M21A / WMVM48421XA 4 7/8 3/8 21 (533) X X X
EVM4X49M21A / WMVM49421XA 4 7/8 3/8 21 (533) X X X
EVM4X60M21A / WMVM60421XA 5 7/8 3/8 21 (533) X X X
EVM4X60M24A / WMVM60424XA 5 7/8 3/8 24-1/2 (622) X X X
EVM4X61M24A / WMVM61424XA 5 7/8 3/8 24-1/2 (622) X X X
(YDSRUDWRU
&RLO
6XSSO\
5HWXUQ
5HWXUQ
6XSSO\
Upflow
Downflow
x
x
x
x
Airflow
Ductwork
4” minimum
Airflow
Ductwork
4” minimum
x
x
x
x
