APR EVM4X - Waste Line Connection

EVM4X, WMVM: Installation Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
8
A221126B

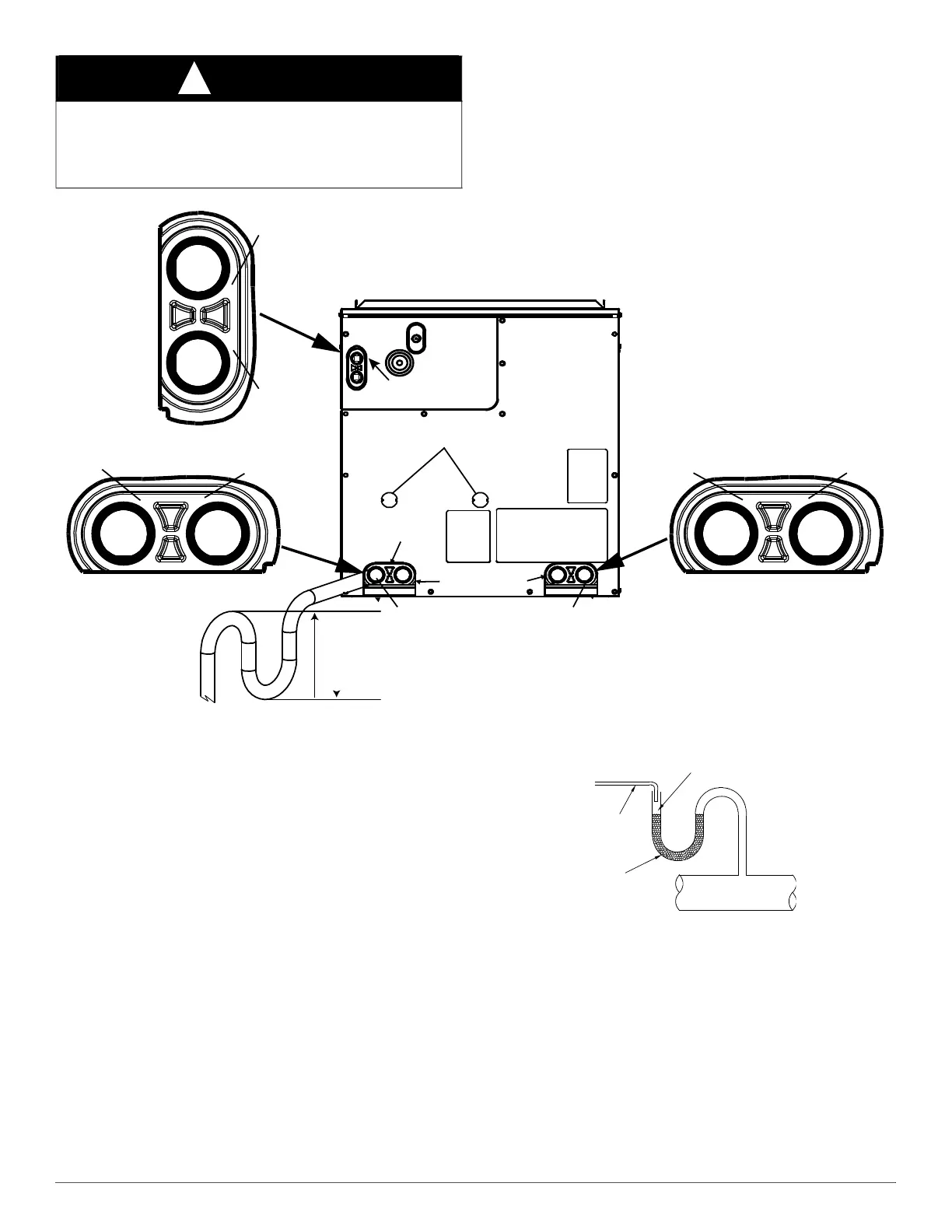

Fig. 14 – Condensate Trap and Drains
(shown in vertical configuration)
NOTE: If unit is located in or above a living space, where damage may
result from condensate overflow, a field-supplied, external condensate
pan should be installed underneath the entire unit, and a secondary
condensate line (with appropriate trap) should be run from the unit into
the pan. Any condensate in this external condensate pan should be
drained to a noticeable place. As an alternative to using an external
condensate pan, some localities may allow the running of a separate
¾-inch (19 mm) condensate line (with appropriate trap) per local code to
a place where the condensate will be noticeable. The owner of the
structure must be informed that when condensate flows from secondary
drain or external condensate pan, the unit requires servicing or water
damage will occur. To further protect against water damage, install a
float switch to shut the unit off if the water in the secondary pan gets too
high.
A10216
Fig. 15 – Condensate Drain to Waste Line
Waste Line Connection
If the condensate line is to be connected to a waste (sewer) line, an open
trap must be installed ahead of the waste line to prevent escape of sewer
gases (Fig. 15).
CAUTION
!
PROPERTY DAMAGE HAZARD
Failure to follow this warning could result in property damage.
Provide trap with air gap in drain line when connecting to waste (sewer)
line.
3” (76mm)
Ø1” (25.4) KNOCK-OUT
(IF PRESENT)
SECONDARY DRAIN (IF NOT
(MARKED WITH “S”)
PRIMARY DRAIN PORT (IF NOT MARKED WITH “P”)
FOR VERTICAL INSTALLATION
¾” (19.05) NPT DRAIN x 4
x
x
THE PRIMARY DRAIN PORT MAY BE ON THE INSIDE OR OUTSIDE
DEPENDING ON THE DATE OF MANUFACTURE. CHECK TO MAKE
SURE BEFORE CONNECTING THE DRAIN.
IMPORTANT!
P
S
NEWER DRAIN CONFIGURATION
Primary Secondary
P
S
NEWER DRAIN CONFIGURATION
PrimarySecondary
PRIMARY DRAIN PORT
(IF NOT MARKED WITH “P”)
FOR HORIZONTAL INSTALL
P
S
NEWER DRAIN CONFIGURATION
Horizontal
Primary
Horizontal
Secondary
Condensate
Line
Trap
Sewer Line
Air Gap Above
Liquid Level
