1. Push back both of the ISOFIX release buttons to release the
ISOFIX connectors.
2. Undo the vehicle seat belt buckle, and remove the vehicle
seatbelt from the belt guide rings (17) and the lower guides
(22).
3. Depress the release button of the Top tether strap to release
the strap and unhook from the vehicle anchorage point.
4. Push the ISOFIX connectors back into the base of the child
car seat.

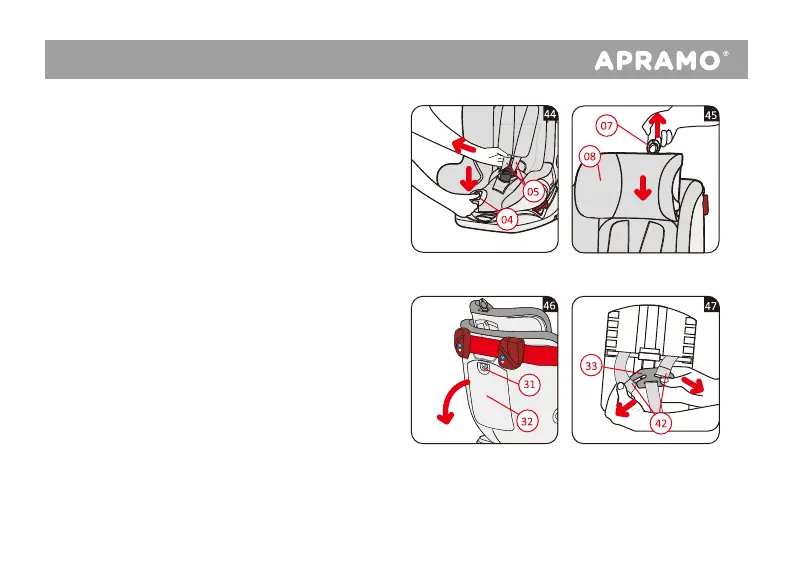

1. Press down on the central adjuster (04), and pull the shoulder
straps towards you (05) (Do not pull on the shoulder pads
(06)), extending the 5-point harness as far as it will go. (fig. 44)
2. Pull the adjusting ring (07) upwards, whilst pushing the
headrest (08) downwards to its lowest position. (fig. 45)
3. Turn the car seat around so that the rear is facing you.
4. Unlatch the rear cover (32) by using the cover latch (31). (fig. 46)
5. Remove the webbing from the joint plate (33). (fig. 47)
6. Place the joint plate (33) in the recess (34) in the cover. (fig. 48)
7. Remove the loops of the shoulder pads (35) from the headrest
lever (36). (fig. 49)
8. Close the rear cover (32).
6. Removing the
APRAMO® ONE
TM
from
the Vehicle
7. Removing the 5-Point Harness
13
