April identiti U Shape Quadrant - Shower Enclosure Components; Box Contents and Parts List

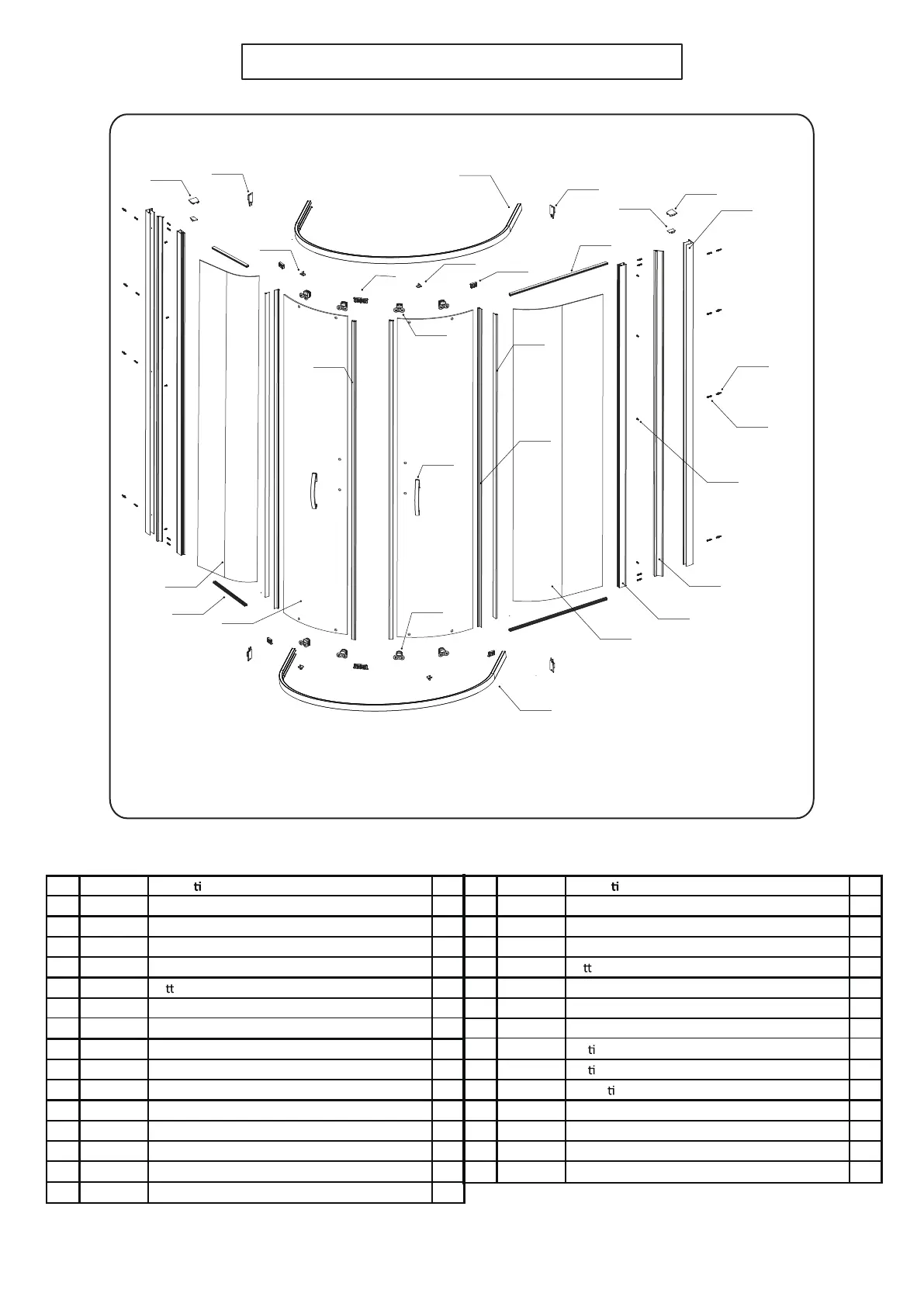

COMPONENTS AND BOX CONTENTS
Box Contents
Note: Further part details for fixing kit available on page 2
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
NO. Code Descrip on Qty
1 ID2PF001 Wall Profile 2
2 ID2PF002 Cover Strip 2
3 ID2PF017 Upright Profile 2
4 ID2PF035 Top Profile 1
5 ID2PF036 Bo
om Profile 1
6 ID2GS014 Fixed Glass Panel A 1
7 ID2GS016 Fixed Glass Panel B 1
8 ID2GS020 Moving Glass Panel 2
9 ID2FT003 Upright Profile Cap 2
10 ID2FT008 Wall Profile Cap - LH 1
11 ID2FT009 Wall Profile Cap - RH 1
12 ID2FT024 End Cap A - L 2
13 ID2FT025 End Cap A - R 2
14 ID2FT028 Glass Edge Cover - L 2
15 ID2FT029 Glass Edge Cover -
R 2
NO. Code Descrip on Qty
16 ID2FT032 Roller Buffer - L 4
17 ID2FT033 Roller Buffer - R 4
18 ID2FT001 Top roller 4
19 ID2FT002 Bo
om roller 4
20 ID2FT040 Handle 2
21 ID2SL008 Gasket for fixed glass panel A 2
22 ID2SL010 Gasket for fixed glass panel B 2
23 ID2SL021 Ver
cal Seal for Fixed Glass Panel 2
24 ID2SL022 Ver
cal Seal for Moving Glass Panel 2
25 ID2SL025 Magne
c Strip Moving Glass Panel 2
26 APTL001 Wall Plug 8
27 APTL008 Screw ST3.5×10 18
28 APTL009 Screw ST4.0×30 14
