April identiti U Shape Quadrant - Installation Procedure - Part 2; Step 3: Frame Placement and Marking; Step 4: Wall Drilling and Plug Insertion

10 pages

To Next Page

To Previous Page

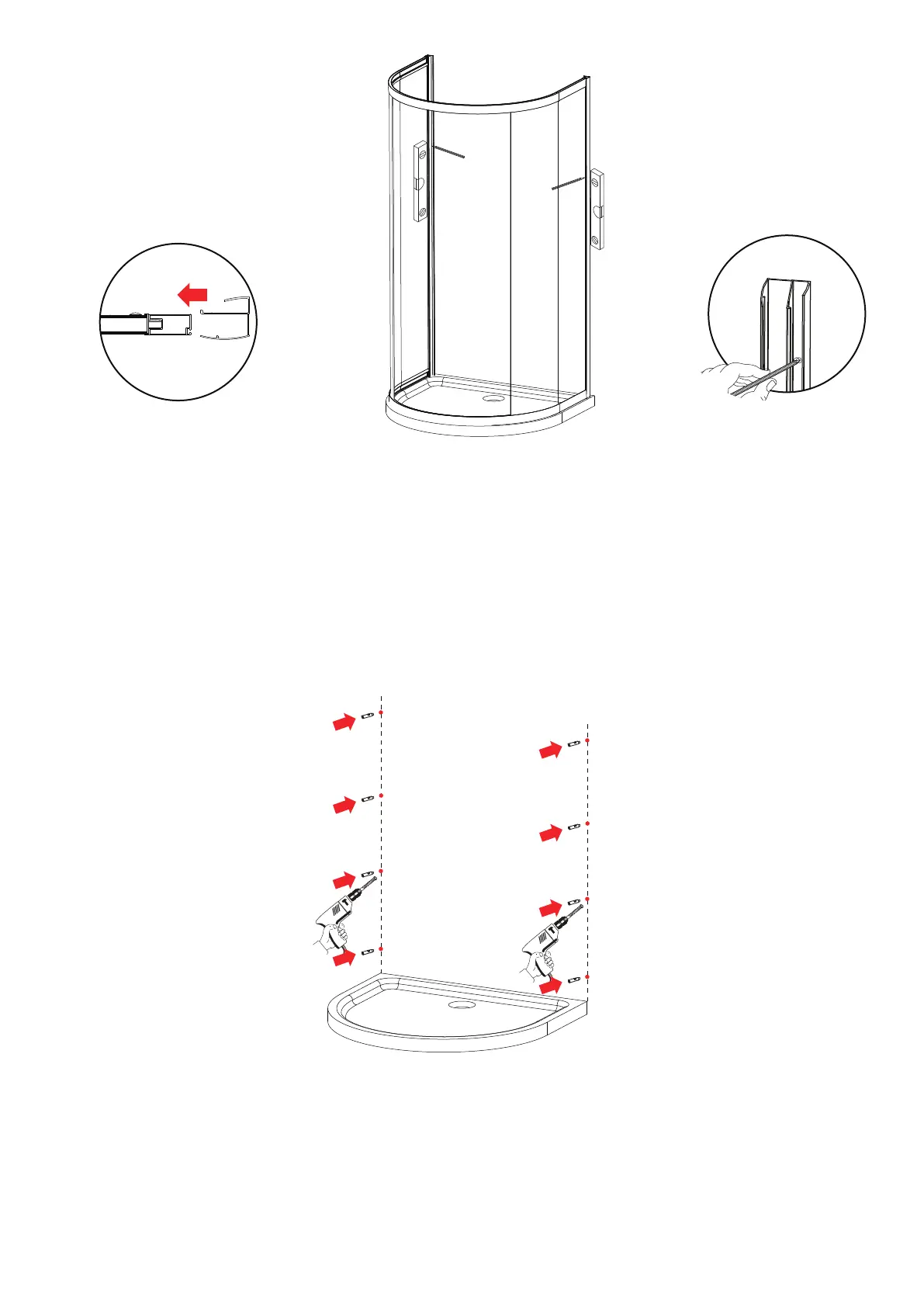

Step 4.

Remove the wall profiles and drill the marked points using an 6mm masonry drill bit, once this is done insert 8 × wall

plugs (No.27).

Step 4

Step 3.2 & 3.3

Step 3.

3.1 Push the wall profiles (No.1) onto the frame.

3.2 Place the assembled frame onto the tray.

3.3 Level the frame using a spirit level.

3.4 Once you are happy that the frame sits on the tray correctly mark the wall through the 4 pre-drilled screw holes in the

wall profiles.

NOTE: You may find it easier to mark and drill the wall if you apply masking tape to it first.

Step 3.4

Step 3.1
