April identiti U Shape Quadrant - Installation Procedure - Part 3; Step 5: Fixing Wall Profiles; Step 6: Frame Adjustment and Leveling; Step 7: Final Frame Securing

10 pages

To Next Page

To Previous Page

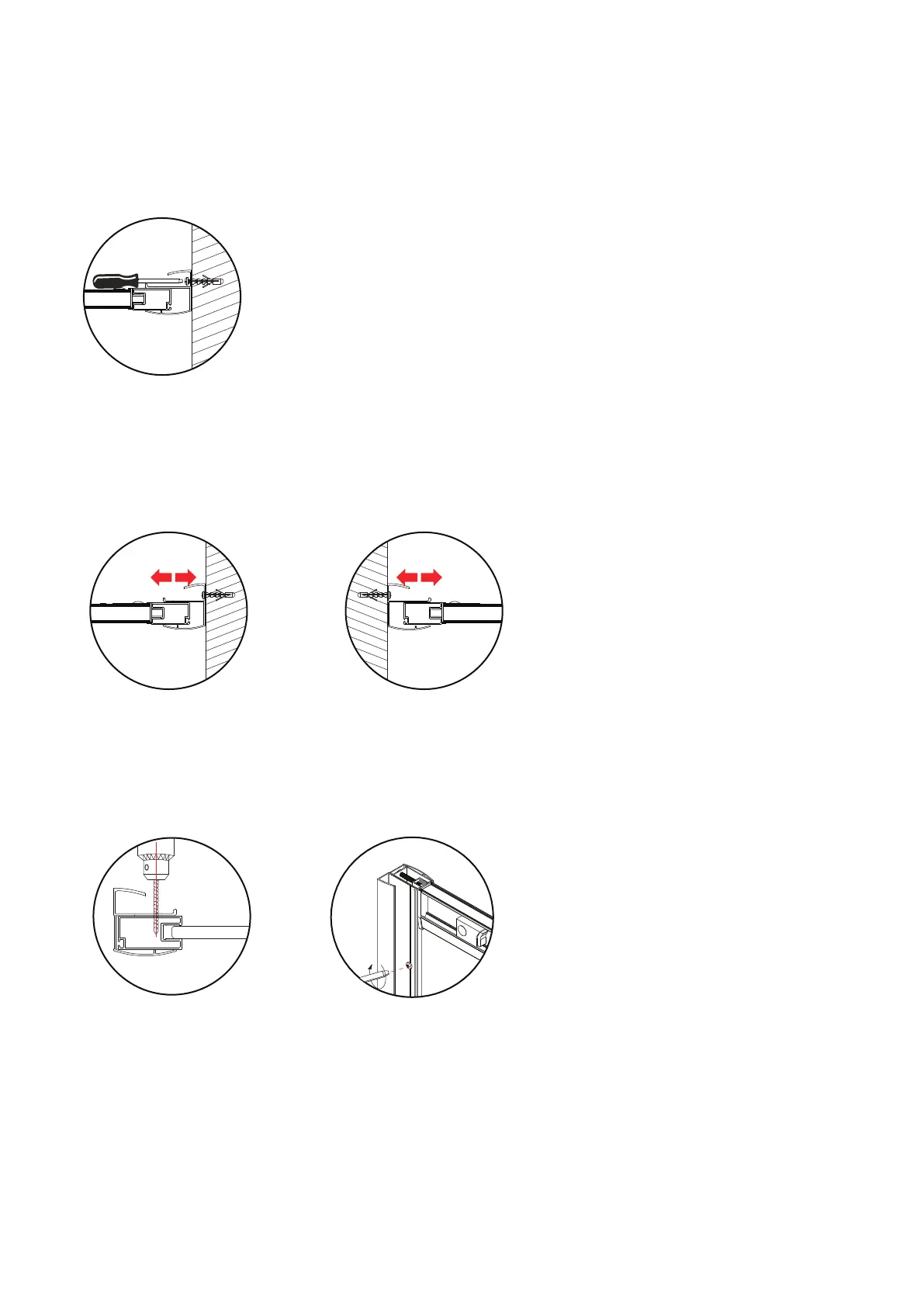

Step 5.

Re-position the frame and fix both of the wall profiles to the wall using 8 × ST4.0 × 30 screws (No.29).

Step 6.

Adjust the frame to ensure that it is central between the wall profiles and level against the shower tray at the base.

Step 7.

7.1 Drill 4 equally spaced holes with a 3mm drill bit through the wall profiles into the frame.

7.2 Fix the frame to the wall profiles using the screws ST3.5 × 10 (No.28 - 4 per wall profile).

Step 5

Step 6

Step 7.1
