ELECTRICAL SYSTEM
8 - 3
ATLANTIC 125 - 200
8.1. LAYOUT OF COMPONENTS

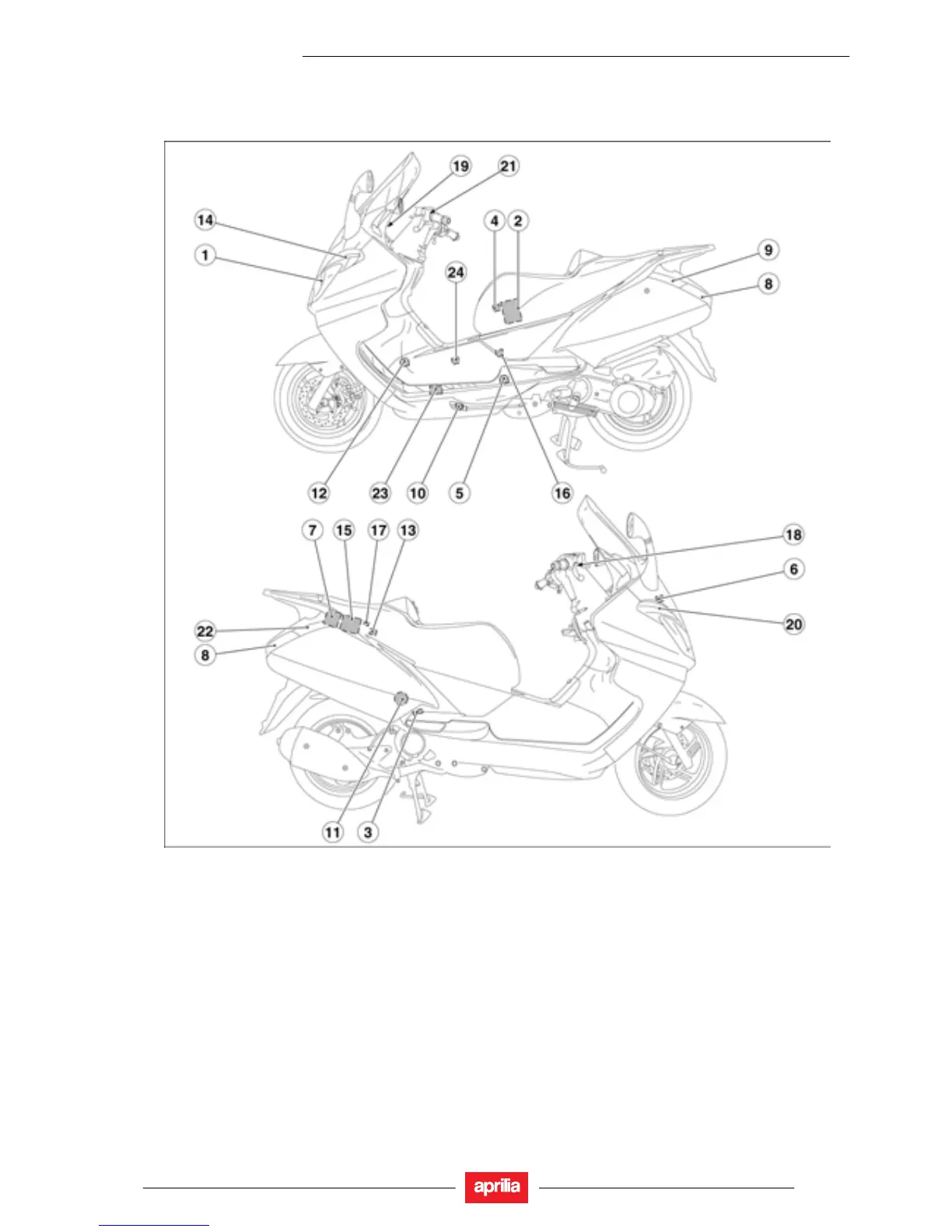

8.1.1. LAYOUT OF ELECTRICAL COMPONENTS
Key:
1. Headlight
2. Battery
3. Spark plug
4. Main fuses
5. Coil
6. Auxiliary fuses
7. Voltage regulator
8. Tail light
9. Rear left direction indicator
10. Side stand switch
11. Starter motor
12. Warning horn
13. Starter relay
14. Front left direction indicator
15. Engine Control Unit
16. Coolant thermistor
17. ECU relay
18. Front brake light switch
19. Dashboard
20. Front right direction indicator
21. Rear brake light switch
22. Rear right direction indicator
23. Fan
24. Fuel sensor

APRILIA ATLANTIC 250 Specifications

General

Displacement	244 cc
Cooling System	Liquid cooled
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Disc
Seat Height	780 mm
Front Tire	120/70-14
Rear Tire	140/60-14
Engine Type	Single cylinder, 4-stroke
Transmission	Automatic
Rear Suspension	Dual shock absorbers
Length	2120 mm
Height	1370 mm
