42
use and maintenance Classic 125
ADJUSTING THE REAR
SUSPENSION (Fig. 39)
The rear suspension consists of a pair of
spring-shock absorber units, fixed to the
rear fork by means of silent-blocks.
The shock absorbers are provided with a
metal ring with five positions, for the adjust-
ment of the spring preload.
The standard adjustment, set by the manu-
facturer, is suitable for a driver weighing
about 70 kg.
If your weight and needs are different, act
on the metal ring (1) with the apposite
spanner, thus setting the ideal travelling
conditions (see table 1).
It is also possible to adjust the attitude of
the vehicle, by moving the shock absorber
in the desired position (see table 2).

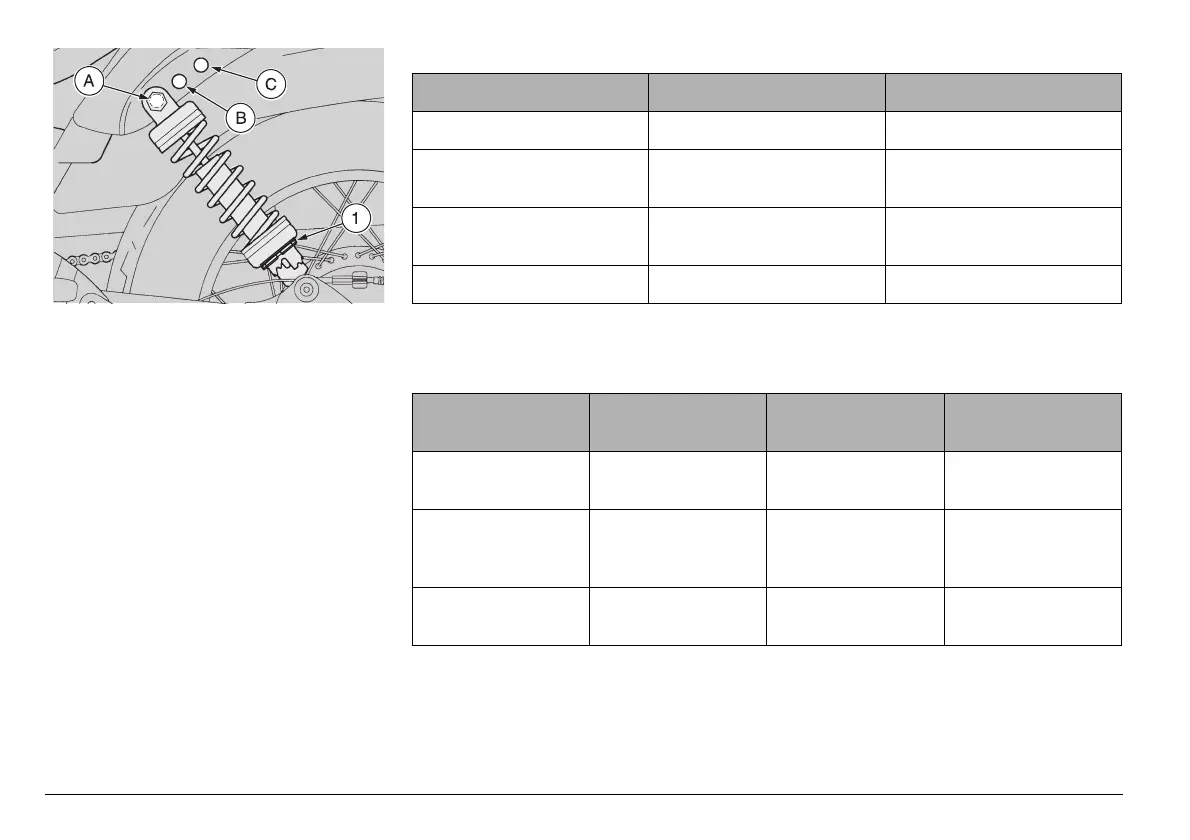

Fig. 39
TABLE 1 - ADJUSTING THE REAR SUSPENSION SPRING PRELOAD
TABLE 2 - REAR SUSPENSION SHOCK ABSORBER POSITION
Set both shock absorbers on the same position.
Adjusting metal ring By screwing it By unscrewing it
Function Spring preload increase Spring preload decrease
Attitude
The attitude of the vehicle
is more rigid
The attitude of the vehicle
is less rigid
Recommended
kind of road
Smooth or normal roads
Roads with uneven
surface
Notes Rider and passenger Solo rider
Rear shock
absorber position
A B C
Function
The suspension is
softer
Intermediate
position
The suspension is
harder
Attitude
The vehicle is
lower
The vehicle is in
intermediate
position
The vehicle is
higher
Recommended
kind of road
Normal roads Normal roads
Roads with uneven
surface
a
