use and maintenance Pegaso 650
-
!22!.'%-%.4/&4(%).3425-%.43#/.42/,3

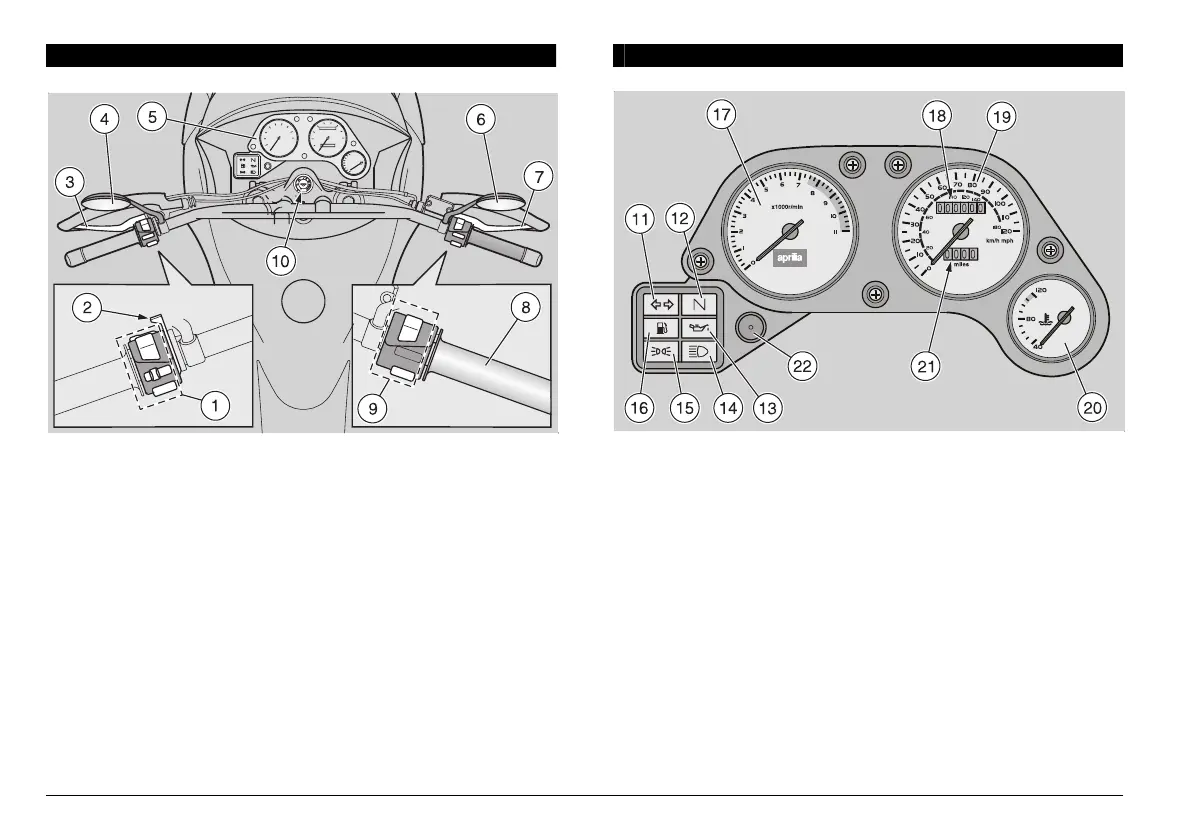

+%9
1) Electrical controls on the left side of the handlebar
2) Cold start lever (e)
3) Clutch lever
4) Left rear-view mirror
5) Instruments and indicators
6) Right rear-view mirror
7) Front brake lever
8) Throttle grip
9) Electrical controls on the right side of the handlebar
10) Ignition switch/steering lock/parking lights (
n - m - s - Y)
).3425-%.43!.$).$)#!4/23
11) Green direction indicator warning light (
c)
12) Green neutral indicator warning light (q)
13) Red engine oil pressure warning light (
j)
14) Blue high beam warning light (
a)
15) Green low beam and parking light warning light (p)
16) Amber low fuel warning light (
g)
17) Tachometer
18) Total miles odometer
19) Speedometer
20) Coolant temperature indicator (
h) in °C (Celsius degree)
21) Trip odometer
22) Odometer reset
