67
use and maintenance Pegaso 650 I.E. STRADA - TRAIL

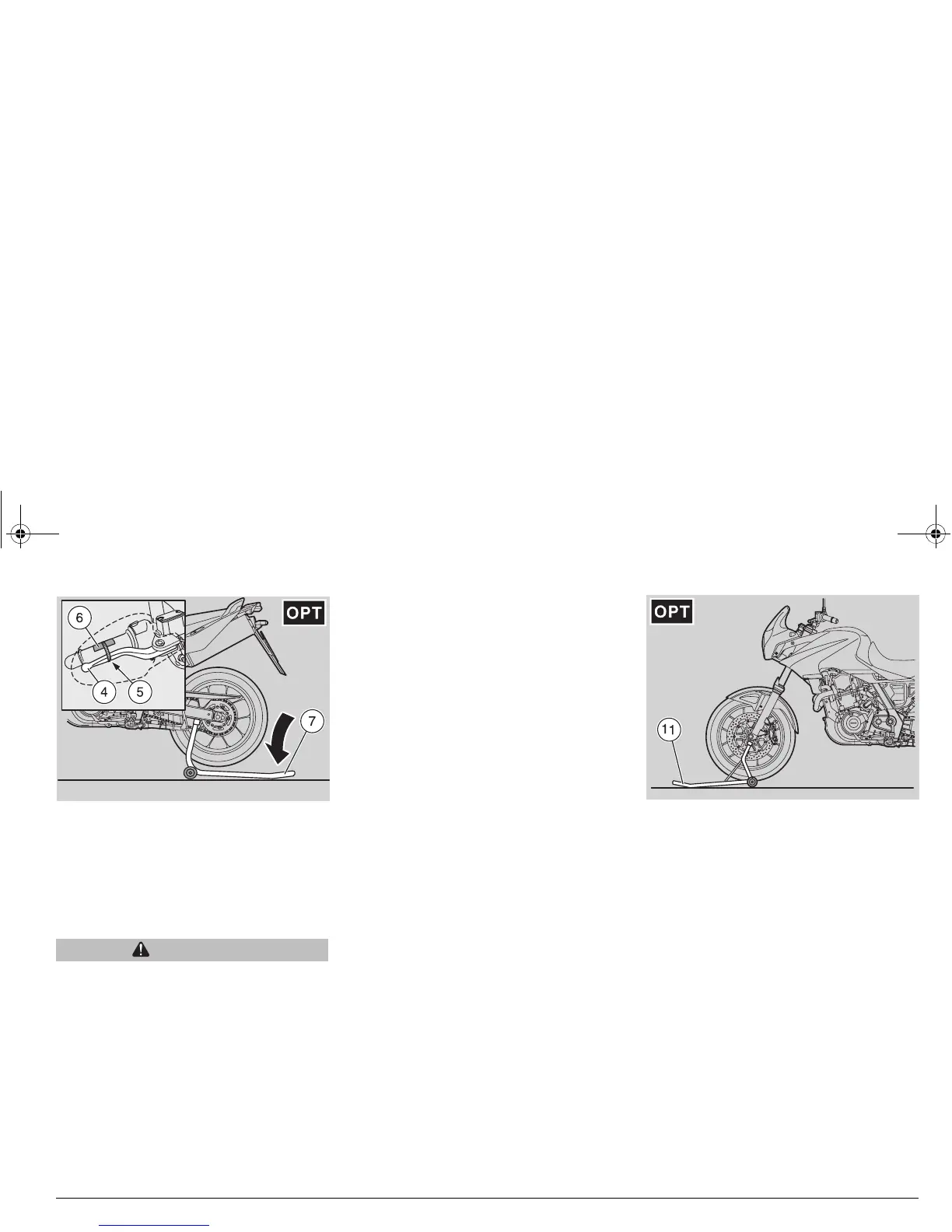

POSITIONING THE VEHICLE ON
THE REAR SUPPORT STAND J
u Pull the front brake lever (4) completely,
then put a small piece of cardboard (5)
on the grip and keep the front brake lever
pulled by holding it against the grip by
means of a plastic band (6).
WARNING
Raise the vehicle by means of the two
swinging arm sections only.
u Insert the stand from the rear side of the
vehicle and position it so that the two
support pins (3) hook to the swinging arm
pins.
NOTE Have someone help you keep the
vehicle in vertical position with the two
wheels on the ground.
u Rest one foot on the rear part of the
stand (7).
u Push the stand (7) downwards until it
reaches the end of its stroke (see figure).
POSITIONING THE VEHICLE ON
THE FRONT SUPPORT STAND J
NOTE To position the vehicle on the
front support stand it is necessary to use
the appropriate rear support stand J.
u Position the vehicle on the appropriate
rear support stand J, page 67
(POSITIONING THE VEHICLE ON THE
REAR SUPPORT STAND J).
u Insert the two ends of the stand (9) in the
two holes (10) positioned on the lower
ends of the front fork.
u Rest one foot on the front part of the
stand (11).
u Push the stand (11) downwards until it
reaches the end of its stroke (see figure).
Pegaso650IE-E.book Page 67 Tuesday, September 26, 2006 5:51 PM
