UPDATE
2 - 44
Scarabeo 50 2T
(
P
A
C421M
2.6. ELECTRIC SYSTEM

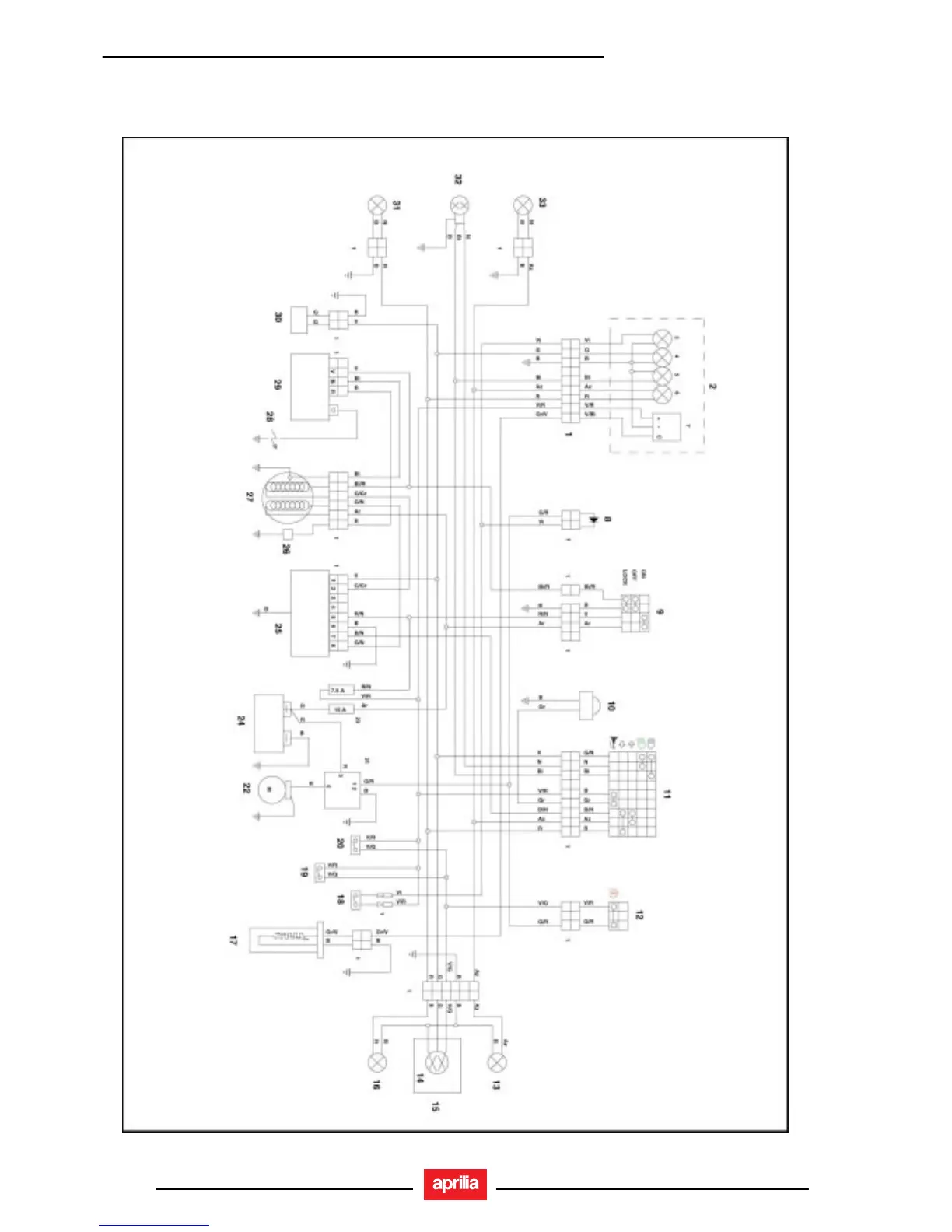

2.6.1. WIRING DIAGRAM

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the APRILIA Scarabeo 50 2T2006 and is the answer not in the manual?

APRILIA Scarabeo 50 2T2006 Specifications

General IconGeneral
Engine TypeSingle-cylinder, 2-stroke
Displacement49.4 cc
Fuel SystemCarburetor
Cooling SystemAir-cooled
Front SuspensionTelescopic fork
Rear SuspensionSingle shock absorber
Brakes (Front)Disc
Brakes (Rear)Drum
Seat Height780 mm
Width700 mm
Dry Weight85 kg
Starting SystemElectric and kick
Bore x Stroke40.0 x 39.3 mm
TransmissionAutomatic CVT
