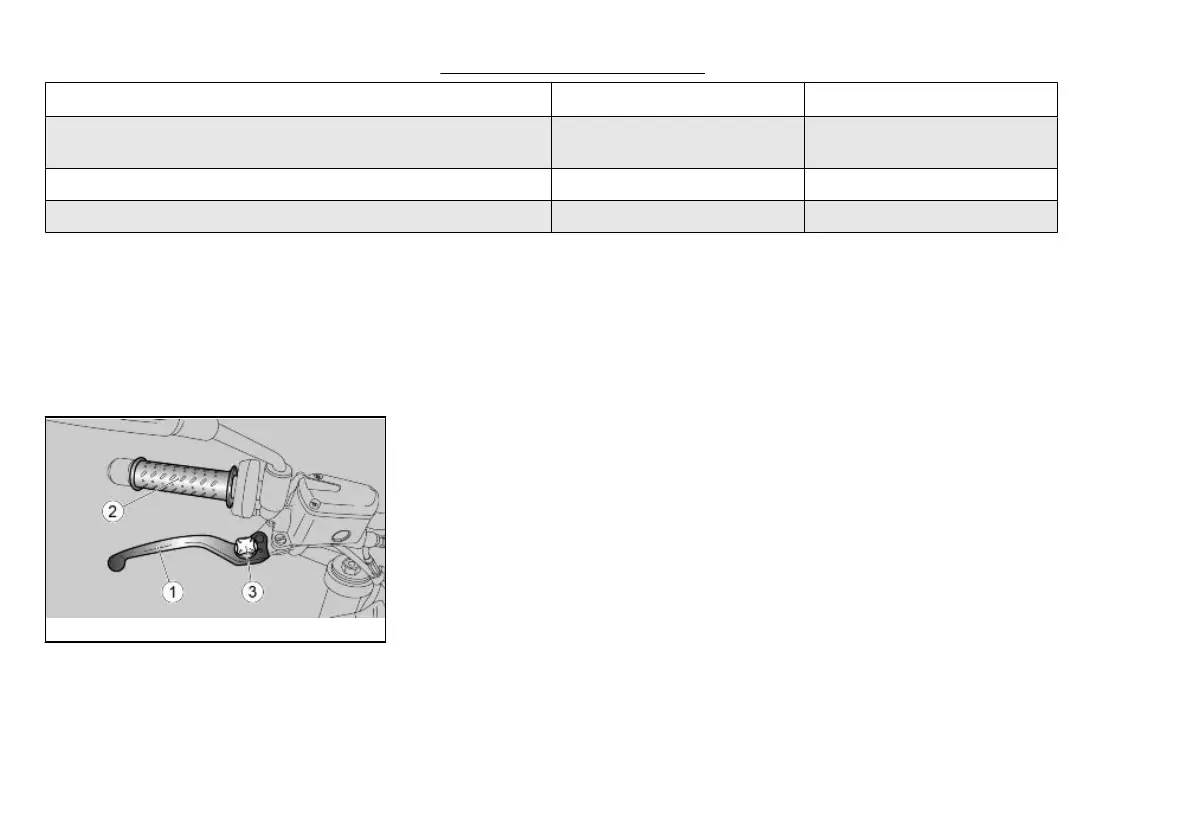

FRONT FORK - ADJUSTING
Description Pilot Pilot + Passenger + Baggage
Rebound damping adjustment, screw (1)
from completely closed (*)
unscrew (**) 6 / 7 clicks
from completely closed (*)
unscrew (**) 6 / 7 clicks
Spring preload (2) 2 notches (4 total) 2 notches (4 total)
Extracting fork (A) (***) (from under lower plate to wheel centre) 480 mm (18.90 in) 480 mm (18.90 in)
(*) - Clockwise
(**) - Anticlockwise
(***) - this type of adjustment may only be made by an Authorised Aprilia Dealer.
03_10
Justering af greb til forbremse (03_10)
It is possible to adjust the distance between the end of the lever (1) and the grip (2),
turning the adjuster (3).
•
Push the control lever (1) forwards and turn the adjuster (3) until the lever (1)
is at the desired distance.
•
Turning the adjuster anticlockwise, the lever (1) gets closer to the grip (2).
91
