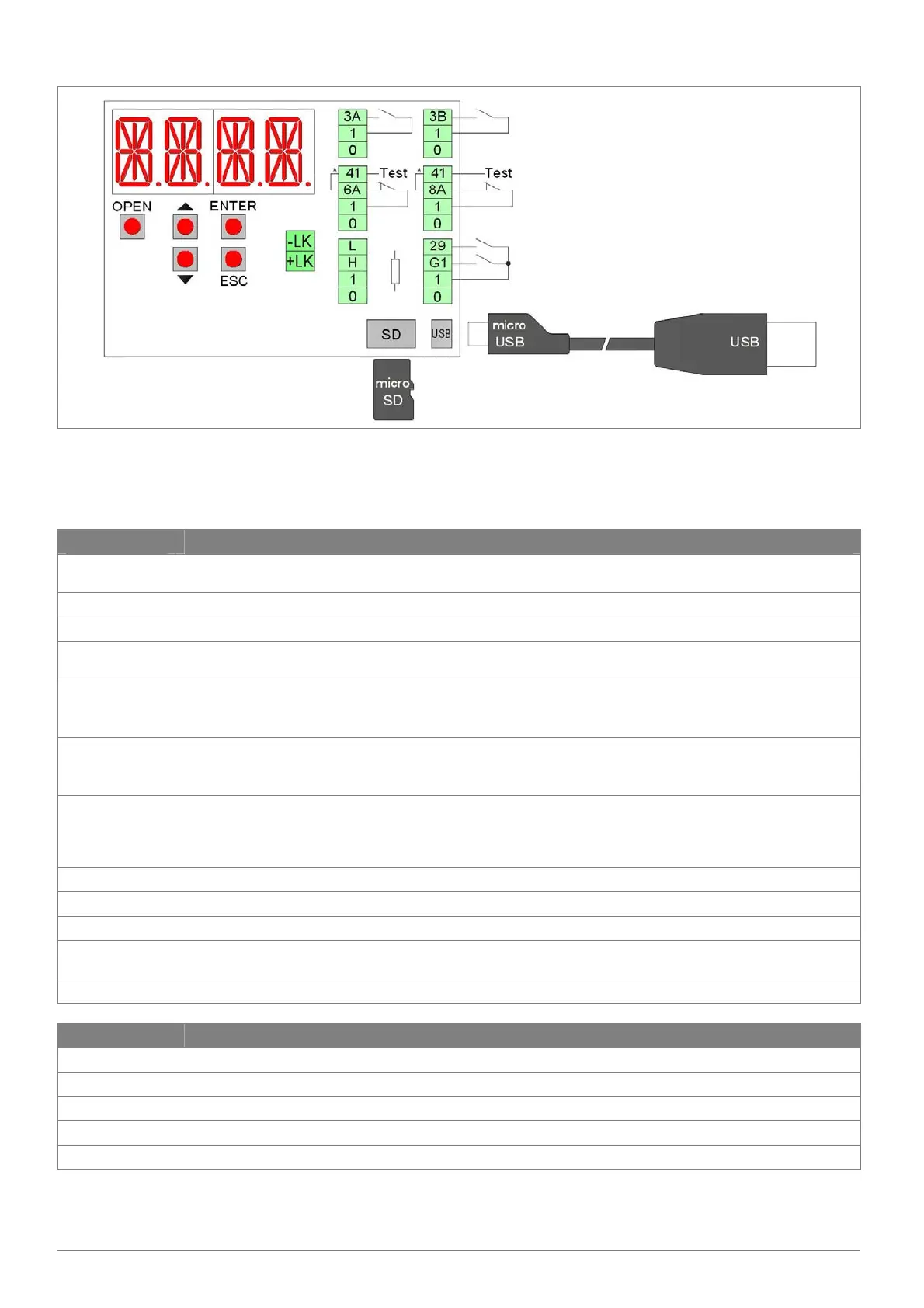

7.3 ELECTRONIC CONTROL TERMINALS
Note: The terminals with the same number are equivalent.
The electronic control comes with the jumpers on the terminals with an asterisk [*]. When connecting safety devices remove
the jumpers of the corresponding terminals.
Terminals Description
0 – 1 Output 12 Vdc for external powering accessories. The maximum absorption of 1 A corresponds to the
sum of all the terminals 1 (+12V).
1 – 3A Contact N.O. opening A side (interior side).
1 – 3B Contact N.O. opening B side (outer side).
1 – 8A Closing safety contact N.C. The opening of the contact causes the reversal of the movement.
Note: connect safety devices with test (see terminal 41), and remove the jumper 41 ‐ 8A.
1 – 6A Opening safety contact N.C. The opening of the contact stops the movement during the opening phase;
the door closes after 3s. If the automation is closed, the opening of the contact prevents the opening.
Note: connect safety devices with test (see terminal 41), and remove the jumper 41 ‐ 6A.
41 Output test (+12 V). Connect the safety devices with test (in accordance with EN 16005), as indicated in
the following chapters.
Note: in case of devices without test, connect the N.C. contact to terminals 41 ‐ 8A or 41 ‐ 6A.
1 – G1
0 – G1
Input terminal provided for general use.
Output terminal (12 Vdc, 20 mA max) provided for general use.
Using the ADV > STG1 menu you can choose a specific function to the G1 terminal.
1 – 29 Reset contact N.O. Closure and release the contact starts the learning operation of the door.
0 – 1 – H – L Bus connection to the FSD1 function selector.
+LK / ‐LK Output 12V‐24V (1A max) for electric lock.
SD Standard admission for memory cards Micro SD. Allows saving the door settings and loading the firmware
updates.
USB Standard micro USB connection. Allows connection to a personal computer.
Buttons Description
OPEN Open the door.
↑ Scroll the menu and increase of selected values.
↓ Scroll the menu and reduction of selected values.
ENTER Button to select the menu and save the selected data.
ESC Exit the menu.
