When lifting the carriage during service or assembly,
use a lifting device. Lifting by hand may result in
back injury.
Do not service this product unless you have read
and followed the Safety Practices, Warnings, and
Operation instructions contained in this manual.
Failure to follow these safety practices could result in
death or serious injury.
Check the lights to be certain they are returned to
the proper display. If no vehicle is at the dock, or
the vehicle is not hitched, the red inside light should
be illuminated and the green outside light should
be illuminated. If a vehicle is at the dock and is
hitched or the wheels are chocked, the green inside
light should be illuminated and the red outside light
should be illuminated.
Before doing any electrical work (including changing
bulbs), make certain the power is disconnected and
properly tagged or locked off.
Place barricades around the pit on the dock oor and
driveway while installing, maintaining or repairing the
dockleveler or the vehicle restraint.
Before working on or around the Vehicle Restraint,
visually conrm that the carriage assembly is at the
top of its travel range. If not, STOP; do not work
on or around the Vehicle Restraint. If the Vehicle
Restraint is not at the top of its travel range, it may
be due to an obstruction in the roller track. Under
this condition the springs may be under considerable
tension. Without properly securing the carriage
assembly, the Vehicle Restraint is unsafe to work on
or around. Call an approved and qualied technician
familiar with the APS Resource line of products. For
a list of approved and qualied technicians call APS
Resource at 1-262-518-1000.
Use only lubricants shown. Improper lubrication or
adjustments may cause operational problems.

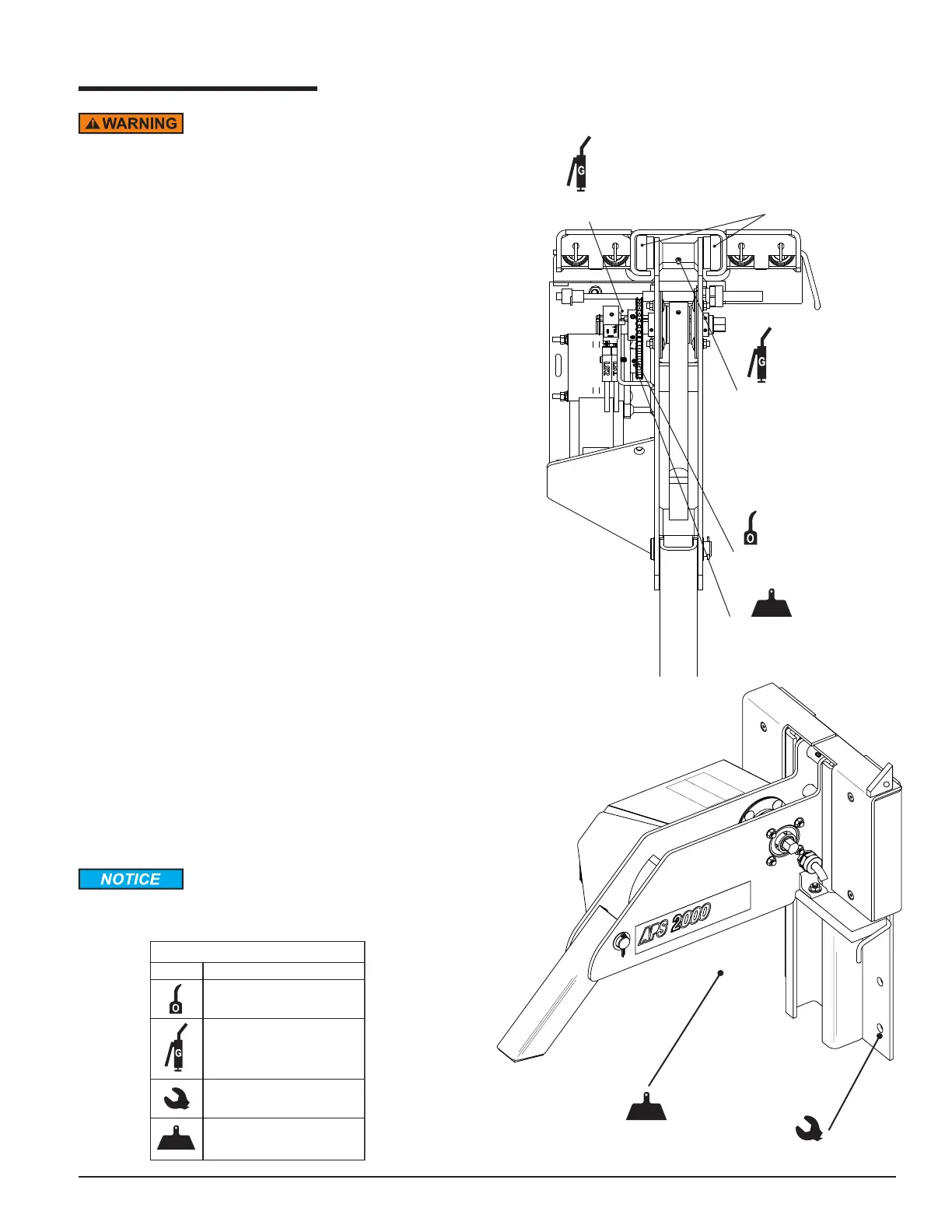

PLANNED MAINTENANCE
Legend
Symbol
Description
Lubricate - Oil
Chain Lube
Lubricate - Grease
Lithium and synthetic
oil-based moly grease.
Temperature range of
-40° to 170°F, or as
required by service conditions
Check Fasteners or
Adjust Torque
(Torque Noted)
Cleaning
(Location - Frequency)
FIGURE 17
FIGURE 16
TOP VIEW
DRIVE
CHAIN
CARRIAGE ROLLERS
LIMIT SWITCH
MOUNTING BRACKET
GREASE
FITTING
(GREASE FITTING ON
BOTTOM ROLLER
SHAFT NOT SHOWN)
DRIVE CHAIN
360 DAYS
Legend
Symbol
Description
Lubricate - Oil
Chain Lube
Lubricate - Grease
Lithium and synthetic
oil-based moly grease.
Temperature range of
-40° to 170°F, or as
required by service conditions
Check Fasteners or
Adjust Torque
(Torque Noted)
Cleaning
(Location - Frequency)
AROUND VEHICLE
RESTRAINT DAILY
Legend
Symbol
Description
Lubricate - Oil
Chain Lube
Lubricate - Grease
Lithium and synthetic
oil-based moly grease.
Temperature range of
-40° to 170°F, or as
required by service conditions
Check Fasteners or
Adjust Torque
(Torque Noted)
Cleaning
(Location - Frequency)
CONCRETE ANCHOR
BOLTS 60FT-LBS
Legend
Symbol
Description
Lubricate - Oil
Chain Lube
Lubricate - Grease
Lithium and synthetic
oil-based moly grease.
Temperature range of
-40° to 170°F, or as
required by service conditions
Check Fasteners or
Adjust Torque
(Torque Noted)
Cleaning
(Location - Frequency)
Legend
Symbol
Description
Lubricate - Oil
Chain Lube
Lubricate - Grease
Lithium and synthetic
oil-based moly grease.
Temperature range of
-40° to 170°F, or as
required by service conditions
Check Fasteners or
Adjust Torque
(Torque Noted)
Cleaning
(Location - Frequency)
Legend
Symbol
Description
Lubricate - Oil
Chain Lube
Lubricate - Grease
Lithium and synthetic
oil-based moly grease.
Temperature range of
-40° to 170°F, or as
required by service conditions
Check Fasteners or
Adjust Torque
(Torque Noted)
Cleaning
(Location - Frequency)
Legend
Symbol
Description
Lubricate - Oil
Chain Lube
Lubricate - Grease
Lithium and synthetic
oil-based moly grease.
Temperature range of
-40° to 170°F, or as
required by service conditions
Check Fasteners or
Adjust Torque
(Torque Noted)
Cleaning
(Location - Frequency)
