APS 2000 - Parts List

PAGE 19
5609 RS 01/17
©2017 4Front Engineered Solutions, Inc. - APS Resource
PARTS LIST
NO STEPS
NO STEPS
WARNING
WARNING
To ensure proper function, durability and safety
of the product, only replacement parts that do not
interfere with the safe, normal operation of the
product must be used. Incorporation of replacement
parts or modications that weaken the structural
integrity of the product, or in any way alter the
product from its normal working condition at the
time of purchase from APS RESOURCE
®
, could
result in product malfunction, breakdown, premature
wear, death or serious injury.
12
15
14
13
11
7
19
9
8
4
6
5
2
10
1
16
17
18

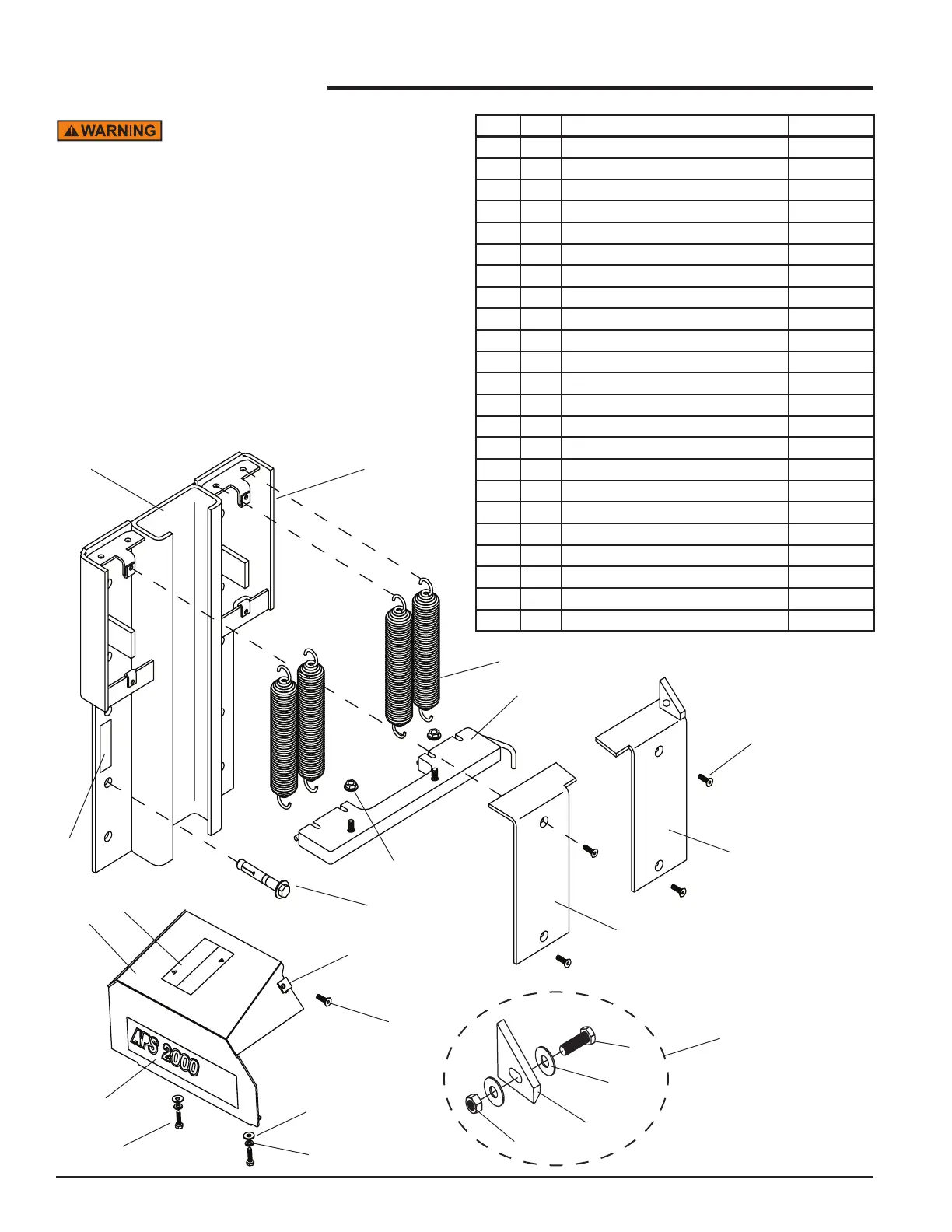

ITEM QTY DESCRIPTION P/N
1 1 Weldment, Roller Track AP5591
2 1 Label, Safety Products 713757
3 1 Kit, Bolt-On Lip Deector AP5664
4 1 Label, Warning 138861
5 15 Bolt, Anchor, 5/8 x 4 AP6821
6 1 Cover, Motor AP5588
7 2 Nut, Serrated Flange, 7/16-14 131535
8 2 Label, APS 2000 AP2523
9 2 Bolt, Hex Head, 5/16-18 x 3/4 000799
10 4 Nut, Cage, 5/16 131527
11 4 Screw, Flat Head Socket, 5/16-18 x 1 131528
12 4 Spring, Extension 101097
13 1 Spring Cover, Left-Hand 156098
14 1 Spring Cover, Right-Hand 713574
15 1 Spring Bar AP1559
16 2 Washer, Flat, 5/16 x 3/4 x 1/16 000055
17 2 Washer, Lock, 5/16 000501
18 1 Screw, 5/16-18 x 3/4 AP2548
19 1 Nut, U-Clip, 5/16-18 C51556
20 1 Bolt-On Lip Deector AP5636
21 2 Washer, Flat, 1/2 000524
22 1 Bolt, Hex Head, 1/2-13 x 1.75 131370
23 1 Nut, Hex, 1/2-13 SE214241
20
23
21
22
3
