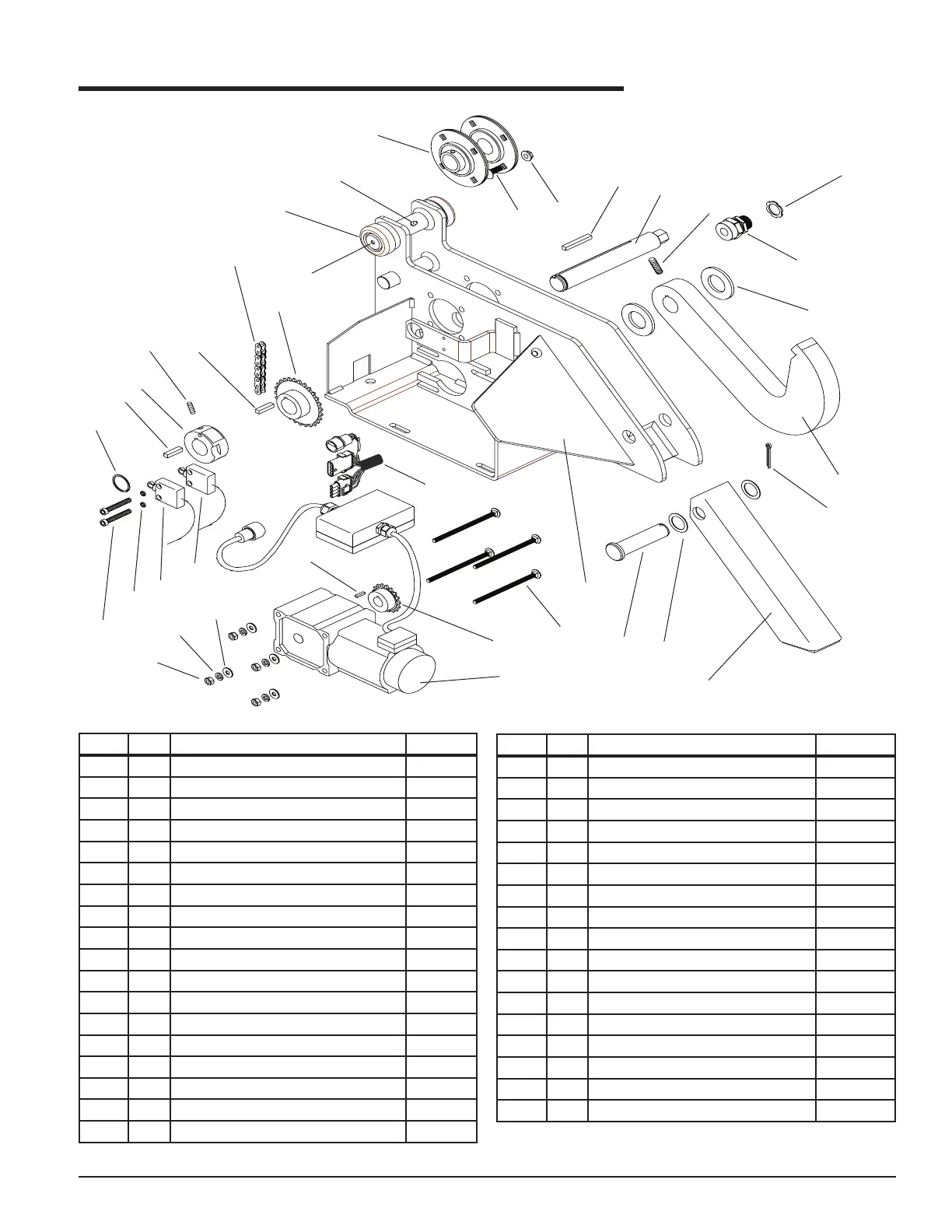

CARRIAGE ASSEMBLY
PARTS LIST
ITEM QTY DESCRIPTION P/N
1 1 Weldment, 9" Restraint Carriage AP5587
2 4 Roller, Carriage C15782
3 1 Sprocket, Drive 713579
4 3 Key AP7332
5 1 Screw, Set, 5/16-18 x 1/2 AP4773
6 1 Cam, APS 2000 AP2541
7 8 Nut, Serrated Flange, 3/8-16 131533
8 1 Ring, Retaining 131530
9 2 Screw, Socket Head, 1/4-20 x 1-1/2 C51636
10 2 Washer, Lock, 1/4 C51802
11 1 Switch, Limit, LS2 C18212
12 1 Switch, Limit, LS1 C18211
13 2 Grease Fitting 156281
14 1 Wire Harness (Includes Items 24 & 25) C18205
15 1 Motor Assy (Includes Items 16 & 17) AP2515
16 1 Sprocket, Motor 713582
17 1 Key, Drive Sprocket AP4164
18 4 Washer, Lock, 5/16 000501
ITEM QTY DESCRIPTION P/N
19 4 Washer, Flat, 5/16 000055
20 1 Kit, Hook w/ Set Screw AP5560
21 2 Bushing, Machinery 000186
22 1 Screw, Set, 5/16-18 x 3/4 AP5559
23 4 Screw, Set 156282
24 1 Cord Grip, 3/4 061848
25 1 Locknut, Cord Grip AP7354
26 1 Hook Shaft 156099
27 2 Bearing 091116
28 8 Bolt, Carriage, 3/8-16 x 1 131534
29 1 Chain, #35 w/ Master Link AP2502
30 2 Washer, Flat, 1-1/2 O.D. 000064
31 4 Nut, Hex, 5/16-18 000303
32 4 Bolt, Carriage, 5/16-18 x 5 AP1536
33 1 Pin, Cotter, 5/32 x 1-1/2 AP2509
34 1 Slope Extension AP2550
35 1 Pin, Slope Extension C105495
9
10
11
12
14
15
16
17
21
22
24
25
28
26
4
27
7
29
4
5
6
4
8
3
13
2
30
20
41
32
31
18
19
40
34
35
33
23
1
