APS 2000 - Page 22

PAGE 21
5609 RS 01/17
©2017 4Front Engineered Solutions, Inc. - APS Resource

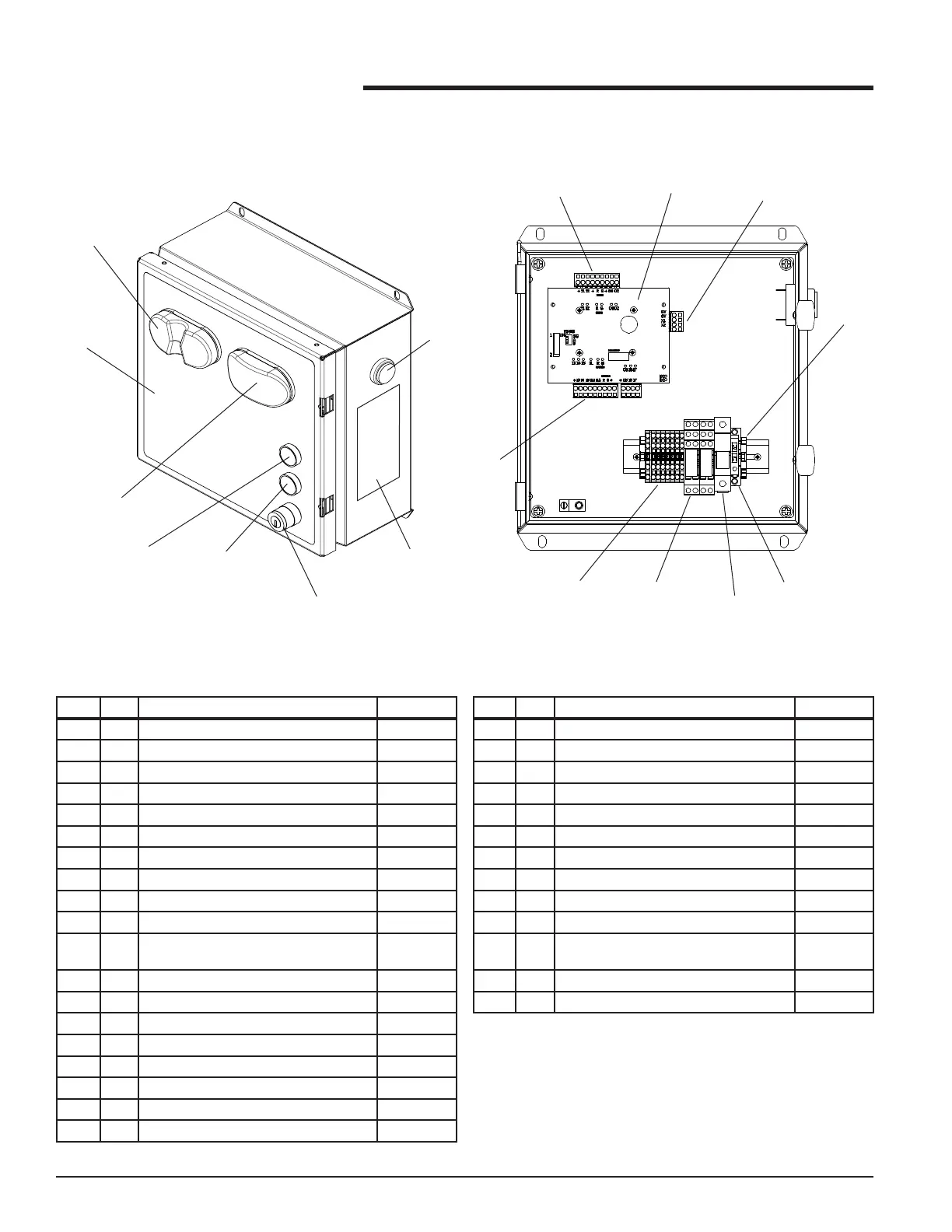

PARTS LISTS
1,2,3
19
8,9,10,11,12
14,16,18
13,15,17
6,10,11
7,10,11
27
21,22
CONTROL PANEL
ITEM QTY DESCRIPTION P/N
19 2 PCB Connector, 9 Position 6008824
20 1 PCB Connector, 4 Position 6008822
21 1 Terminal Block, Fused Disconnect 6000538
22 1 Fuse, 0.5A SE6001052
23 2 Relay, 24VDC 6013687
24 2 Relay Socket/Base SE6000522
25 1 Fuse Block 6006849
26 1 Fuse, 3A AP5269
27 8 Terminal Block 6006846
28 2 End Stop 6000549
29 1
Optional Interlock Relay Kit, 30A, 24VDC
(Not Shown)
AP6838
30 1 Electrical Schematic (Not Shown) 6013795S
31 1 Label, Arc Flash and Shock Hazard 6002986
ITEM QTY DESCRIPTION P/N
- - Control Box Assy, 24V 6013795
1 1 Transformer 6008636
2 1 Programmed Control Board 6014057
3 1 Cover Plate, Control Board 6013870
4 1 Audible Alarm w/ Locknut 6009889
5 1 Label, APS 2000 Instructions 6006571
6 1 Push Button, Green 6013065
7 1 Push Button, Yellow 6013067
8 1 Key Switch , 2-Position 6013876
9 1 Spare Keys, One Pair (Not Shown) AP4087
10 3
Mounting Base, For Push Buttons &
Key Switch
6012562
11 3 Contact Block, N/O 6012563
12 1 Contact Block, N/C 6012564
13 1 Light Assy, LED, Red (Includes 2 Red LRU's) AP2771
14 1 Light Assy, LED, Grn (Includes 2 Grn LRU's) AP2770
15 1 Lens, Red SE823100
16 1 Lens, Green AP0027
17 2 LED Light Replacement Unit (LRU), Red 6006375
18 2 LED Light Replacement Unit (LRU), Grn 6006377
19
20
28
5
23,24
25,26
4
31
