There is a quick-release plate (with Electrical contacts) on the back of the control box,
which can be quickly installed on the lamp head or the Lighting Clamp on the lamp
stand; the lamp head has a Pogo pin in the quick-installation part slot, and the control
box does not need to be connected after being installed on the lamp head cable, can
directly control the lamp head through the contact transmission signal.
XLR
Locking Tab
XLR Locking Tab
XLR Locking Tab
Weight
* The Lightning Clamp can clamp onto square or round pipe with a diameter
between 2-5cm or 0.79-1.97in.
Sizes(L*W*H)
Lightning Clamp Specifications
670g / 1.48lbs 10.35x8.74x12.5cm / 4.07x3.44x4.92in
Signal-A
Signal-B
Ground
15V
Power-
Ground
Pogo Pin
Directly control the lamp head by
connecting the electrical contacts
through the Pogo pin
Controller Box
DMX IN DMX OUT

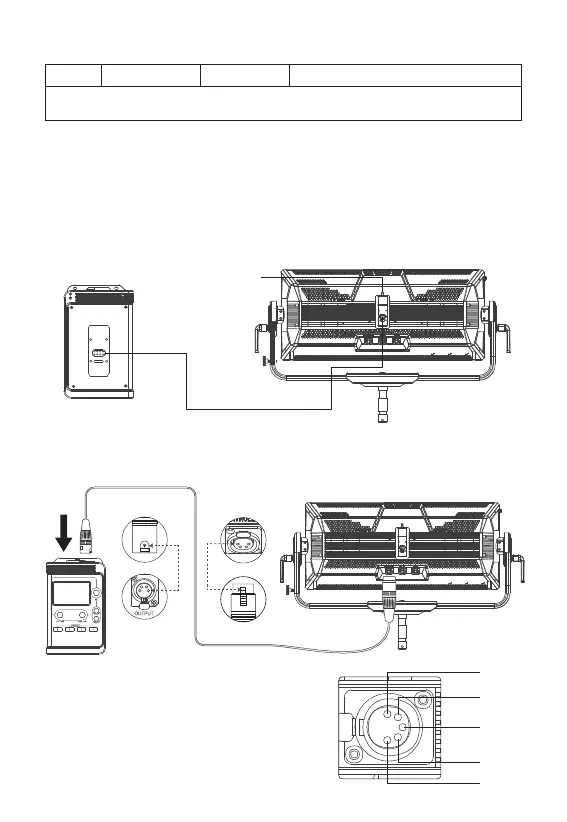

3. Connect the Lamp Head to the Control Box
3.1 Connect the lamp head and control through the contacts
* You can tie the cable tie with the connecting
cable to the hanging post to facilitate the
management of the cable.
* Disconnect the Head Cable by press down
the collar on the connector. This will disengage
its locking structure. Do not pull directly.
* The lamp controller interface schematic is
shown in the pictures below:
3.2 Connect the lamp head and control through the head cable
Electrical contacts
- 6 -
