7
ELECTRONIC CONTROL PANEL
+
I
POOL/SPA
STANDBY
HEAT
DEFROST
REMOTE
STANDBY
POOL
SPA
FAULT CODES
HP - High Pressure
LP - Low Pressure
F1 - Flow Sw itch 1
F2 - Flow Sw itch 2
FS - Remote Flow Switch
PO - Water Sensor Open
HC - Water Sensor Closed
dO - Defrost Sensor Open
dC - Defrost Sensor Closed
bO - Brown Out Protection

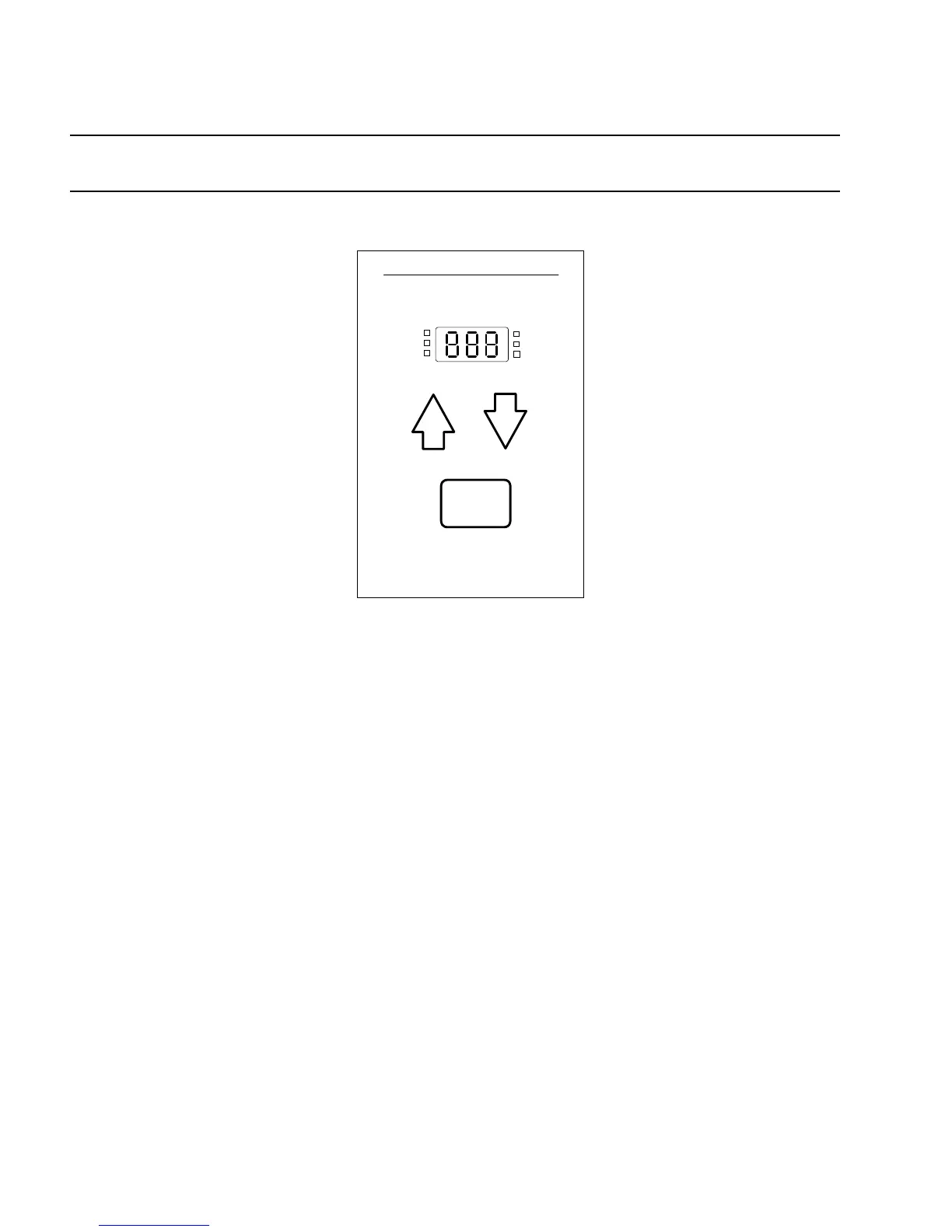

Figure 2 – User Interface Control Panel
Control Settings
Temperature Setpoint
• Temperature setpoint maximum for POOL mode is 95°F (35°C).
• Temperature setpoint maximum for SPA mode is 104°F (40°C).
To change the temperature setpoint, press the POOL/SPA/STANDBY button until you reach either
POOL or SPA mode, this will prompt the control to display the current temperature setpoint. Hold either
UP or DOWN button to scroll to your desired temperature setpoint. Once your new temperature setpoint
has been reached, release the UP or DOWN button. Your new setpoint will be displayed for fifteen
seconds then revert back to the actual pool or spa water temperature.
Note: When the mode jumper is in position 3-4 the setpoint must be changed on the remote control
system.
Selecting Pool or Spa Mode
Press the POOL/SPA/STANDBY button until you reach the desired mode. The LED indicator light will
verify the mode that has been selected. Note: When the mode jumper is in position 2-3 or 3-4 the mode
is determined by the external water pressure (flow) switch or remote controller.
